Materials and Reagents

Sterilization 0.22 µm pore size filter, 33 mm diameter (Millipore, catalog number: SLGP033RS)
Sterile 6-well plates for cell culture (Cultek, catalog number: 153506)
Transparent 96-well microplates (Sudelab, catalog number: 900011)
96-well black micro plates with a transparent bottom (Biogen, catalog number: PO-215003)
96-well white microplates with white bottom (Biogen, catalog number: PO-204003)
Sterile 15 ml centrifuge falcon tubes (Cultek, catalog number: 45352096)
Sterile 2 ml Eppendorf tubes
Human embryonic kidney (HEK-293T) cells [293T (ATCC^®, catalog number: CRL-3216^TM)], store aliquots in liquid nitrogen
Plasmids for cell transfection
Note: One containing the code for one protein fused to Rluc and another containing the code for the second protein fused to enhanced yellow fluorescent protein (EYFP). Plasmids including the sequences for Rluc or YFP are available from ADDGENE, store at -20 °C.
L-glutamine (Gibco, catalog number: 25030-024), store at -20 °C
Penicillin/streptomycin (Gibco, catalog number: 15140-122), store at -20 °C
Sodium chloride (NaCl) (PanReacApplichem, catalog number: 141659.1211), store solid at room temperature, or 150 mM aliquots at 4 °C
NaCl (Panreac, catalog number: 131659.1211), store at room temperature
Ethanol
CaCl₂·2H₂O (Panreac, catalog number: 131232.1211), store at room temperature
KCl (Panreac, catalog number: 131494.1211), store at room temperature
KH₂PO₄ (Panreac, catalog number: 141509.1211), store at room temperature
MgCl₂, anhydrous (Sigma-Aldrich, catalog number: M8266), store at room temperature
MgSO₄·7H₂O (Panreac, catalog number: 141404.1211), store at room temperature
Na₂HPO₄·12H₂O (Panreac, catalog number: 141678.1211), store at room temperature
HEPES (Panreac, catalog number: A3724,0500), store at room temperature
Glucose (PanReac, catalog number: A1422,1000), store at room temperature
Bradford reagent (BioRad, catalog number: 500-0006), store at 4 °C
Bovine serum albumin (Sigma-Aldrich, catalog number: A6003-25g) store either solid at 4 °C, or in solution at -20 °C
Coelenterazine H (Attendbio, catalog number: E-102181), store at -20 °C, protected from light
Dulbecco’s modified Eagle’s medium (DMEM) (Gibco, catalog number: 21969-035), store at 4 °C
MEM Non-Essential Amino Acids Solution (Gibco, catalog number: 11140-035), store at 4 °C
Fetal Bovine Serum (FBS) (Gibco, catalog number: 10270106), store at -20 °C
Polyethylenimine (PEI) (Sigma-Aldrich, catalog number: 408727), store either solid at room temperature, or in 40 µM aliquots at -20 °C
Sterile 40 µM PEI (see Recipes)
Sterile 150 mM NaCl (see Recipes)
Serial BSA dilutions (0-1 mg/ml) (see Recipes)
Supplemented DMEM (see Recipes)
HBSS (see Recipes)
Coelenterazine H solution (see Recipes)

Equipment

Water bath (Kotterman, model: D-3162)
Centrifuge (Eppendorf, model: 5084R)
Centrifuge (Eppendorf, model: 5415R)
Cell incubator (ThermoFisher, model: 3308)
Laminar flow hood (Faster, model: Bio60)
Spectrophotometer (ThermoLabsystems, multiskan Ascent; 354)
Fluostar Optima Fluorimeter (BMG Labtech, FLUOstar OPTIMA) equipped with a high-energy xenon flash lamp, a 10 nm bandwidth excitation filter at 485 nm and a 530 nm emission filter
Mithras LB 940 plate reader (Berthold Technologies) equipped with 485 nm and 530 nm filters

Software

GraphPad Prism software (GraphPad, https://www.graphpad.com/scientific-software/prism/)
Microsoft Excel (Microsoft, https://products.office.com/es/excel)
Multiskan software, provided by manufacturer of the Plate reader for measuring protein concentration
OPTIMA software, provided by manufacturer of the fluorescence plate reader
Mikrowin 2000 software, provided by manufacturer of the BRET reader

Procedure

Fusion proteins
Description of cloning for preparation of the fusion proteins is out of the scope of the current protocol.
Note: In the case of GPCRs, added (Rluc or EYFP) proteins must be at the C terminal end, i.e., cytoplasmic (Figure 2). Exception may occur in special cases (for instance if one wants to look for interactions between the huge extracellular domains of class C GPCRs. In brief, place the cDNAs coding for the proteins of interest without their stop codon inside the pRLuc-N1 or the pEYFP-N1 vectors to obtain the fusion proteins that contain RLuc or EYFP. One of the receptors (R1) should be fused to Rluc and the other one (R2) to EYFP. We recommend trying both pair combinations as, often, one combination works better than the other. For negative control, a non-interacting receptor (R3) should be fused to EYFP to perform BRET using R1-Rluc.

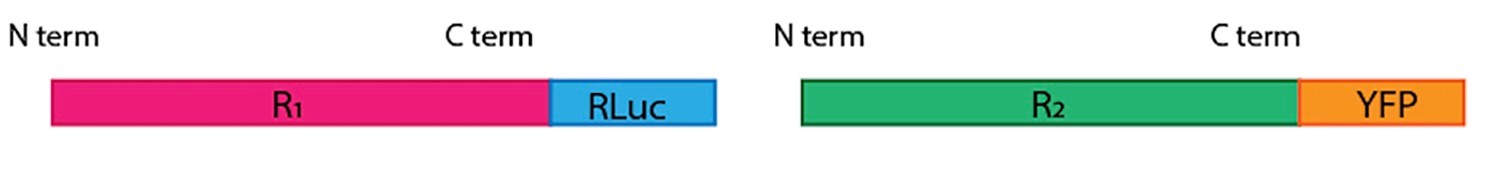

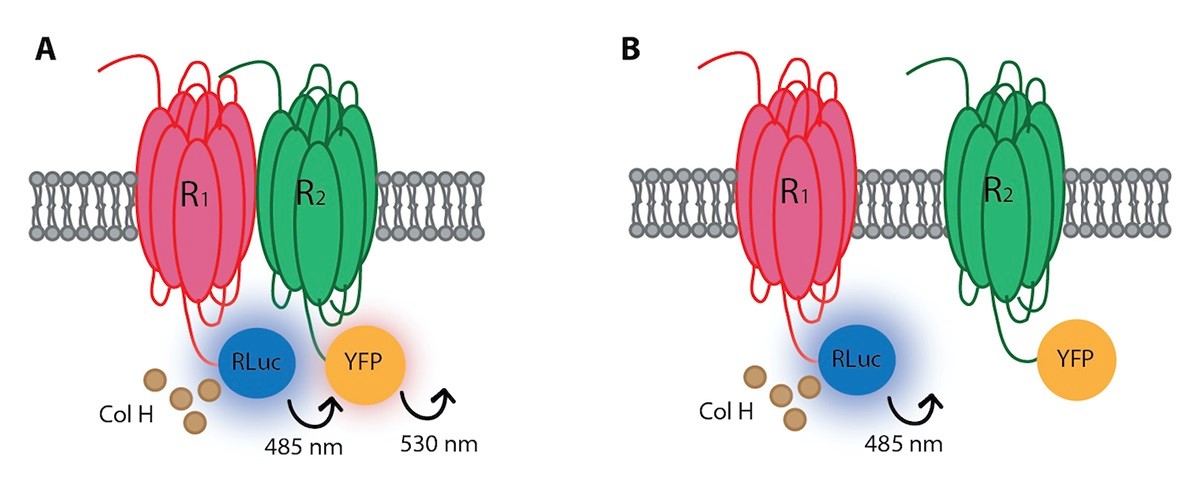

Figure 2. Cartoon representation of the fusion proteins containing Rluc or YFP at the C terminus of each receptor
Cell culture and transient transfection (any current cell transfection reagent suitable for eukaryotic cells may be used; we routinely use PEI)
1. Grow HEK-293T cells in DMEM supplemented with 2 mM L-glutamine, 100 U/ml penicillin/streptomycin, 1% (v/v) MEM Non-Essential Amino Acid Solution and 5% (v/v) heat inactivated Fetal Bovine Serum (FBS) at 37 °C and 5% CO₂ humid atmosphere. Cell growth is optimal without need to use higher FBS concentrations. Plate cells in 6-well plates at a density of 250,000 cells/well. A single BRET assay requires 9 transfection conditions, and each will require 2 wells. In total 9 x 2 = 18 wells = three 6-well plates. Discard every batch of cells after 10 passages and thaw a new liquid nitrogen-stored vial.
2. Twenty-four hours after plating, transfect HEK cells (they should be ~50% confluent). Increase the amount of the EYFP plasmid every two wells (as above indicated, same transfection conditions are performed in 2 wells). Rluc must be kept relatively constant and this requires preliminary assays to optimize the EYFP/Rluc ratios. An example of transfection conditions is given in Table 1. The first condition, that contains only RLuc, is used as a blank for cell fluorescence. In further experiments, DNA amounts must be adjusted to obtain the desired protein-RLuc and protein-EYFP expression values (see below).

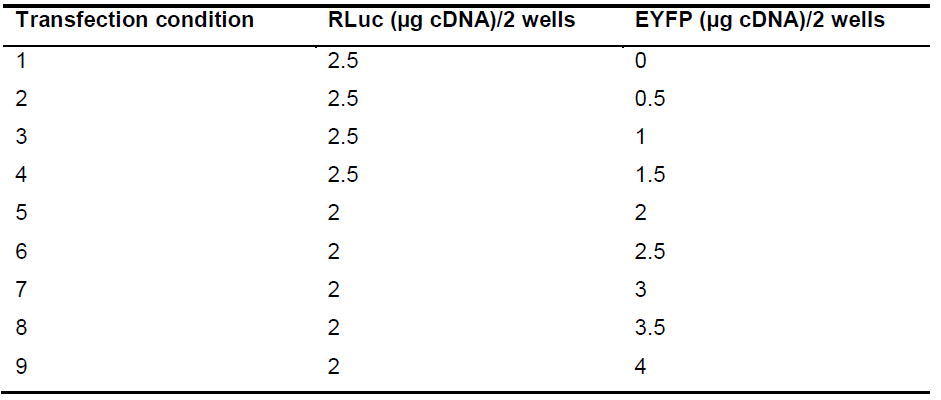

  Table 1. Example of DNA amounts used for transfection (total DNA required for two wells needed for every condition is shown)
  1. Add 250 µl 150 mM NaCl (per tube) to each of 9 sterile 15 ml centrifuge tubes.
  2. Add the desired amount of DNA and mix using vortex.
  3. In parallel, prepare a mixture of 40 µM PEI and 150 mM NaCl (1:20), vortex vigorously.
  4. Add 250 µl of the PEI:NaCl mixture to each tube, mix using vortex.
  5. Incubate for 10 min at room temperature.
  6. Add 1.5 ml/tube of non-supplemented DMEM, mix (now each tube should contain 2 ml of transfection mixture).
  7. Aspirate the culture medium from the 6-well plates and add carefully 1 ml of the transfection mixture to each well.
  8. Place cells in the incubator for 4 h at 37 °C, in 5% CO₂ humid atmosphere.
  9. Replace the transfection mixture with 2 ml of supplemented DMEM and place again cells in the incubator for 48 h.
Cell preparation for BRET assay
1. Prepare HBSS (see Recipes) supplemented with 0.1% (w/v) glucose, prewarm the mixture in the water bath at 37 °C.
2. Aspirate culture medium from transfected cells.
3. Wash cells with the prewarmed solution of HBSS-glucose.
4. Add 1 ml HBSS-glucose per well.
5. Detach cells, pool cells from the 2 wells with the same transfection condition in a 2 ml Eppendorf tube.
6. Centrifuge for 5 min at 1,000 x g (room temperature).
7. Resuspend each pellet in 200 µl of HBSS-glucose.
8. To adjust the protein amount, proceed to Bradford protein assay.
  1. In a 96-well transparent microplate, add 10 µl/well of each bovine serum albumin (BSA) dilution (0-1 mg/ml; in duplicates).
  2. Add 10 µl cell sample/well.
  3. Add Bradford reagent (200 µl/well; previously diluted 1:5 in MilliQ water).
  4. Shake the plate at room temperature for 2 min.
  5. Read the absorbance at 595 nm.
  6. Use GraphPad software to calculate the standard parameters and use them to calculate protein concentration in each cell suspension. Calculate the amount of HBSS-glucose that must be added to each cell suspension to obtain a protein concentration equivalent to 0.2 mg/ml.
Assessing the amount of EYFP expression
1. Load 100 µl/well (20 µg protein) of each sample (in duplicates) on 96-well black microplates with transparent bottom.
2. Using a Fluostar Optima Fluorimeter plate reader, excite samples with a high-energy xenon flash lamp using a 10 nm bandwidth excitation filter at 485 nm, and read fluorescence at 530 nm. See example fluorescence measurements in Table 2.

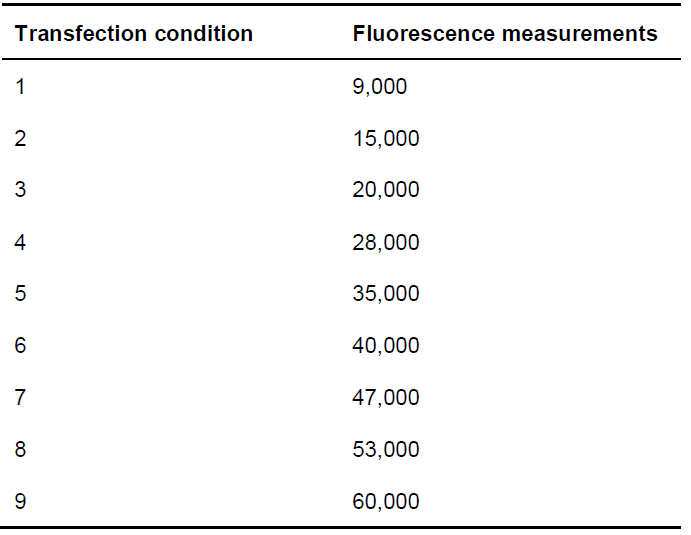

  Table 2. Example of fluorescence measurements from protein-EYFP expression for each of the conditions indicated in Table 1
BRET measurements
1. Prepare a Coelenterazine H: HBSS-glucose dilution from the Coelenterazine H stock (see Recipes) (1:40), keep on ice and protected from light.
2. Load 90 µl/well of each cell suspension (in duplicates) on 96-well white microplates with opaque bottom.
3. Add 10 µl/well of the Coelenterazine H solution (final concentration of coelenterazine is 5 µM); gently shake the plate.
4. Read the energy transfer (e.g., on a Mithras LB 940 plate reader) 1 min after the addition of coelenterazine H, using a 485 nm filter (short wavelength) to detect the bioluminescence emitted by protein-Rluc, and a 530 nm filter (long-wavelength) to detect the fluorescence emitted by protein-EYFP upon energy transfer from protein-RLuc. The Mithras reader is able to integrate both wavelengths and provide the BRET values, that is, the ratio between the two readings (see Table 3 for examples of BRET readings).

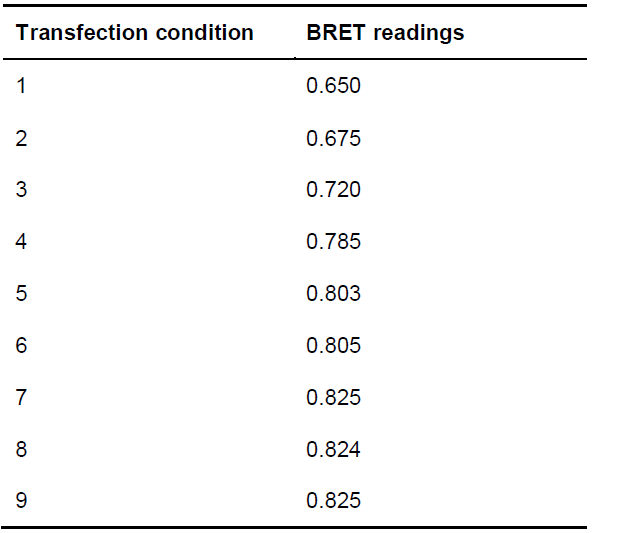

  Table 3. Example of BRET readings for each of the conditions indicated in Table 1
Assessing the amount of Rluc expression
To determine protein-Rluc expression, read the bioluminescence of the sample 10 min after the addition of coelenterazine H on the Mithras LB 940 plate reader using the 485 nm filter (use the same samples used for BRET readings). See Table 4 for examples of protein-RLuc readings.

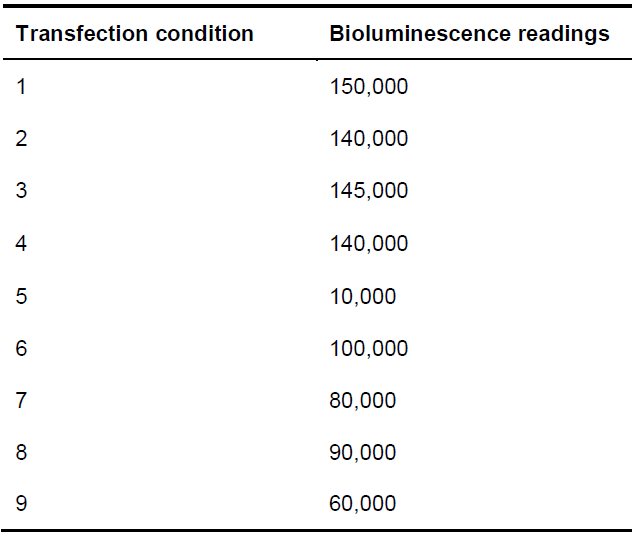

Table 4. Example of bioluminescence readings from protein-RLuc expression for each of the conditions indicated in Table 1

Data analysis

Notes:

When reading protein-YFP fluorescence, the value of the first transfection condition (i.e., the one lacking protein-EYFP) should be around 9,000 fluorescence units, and those of the rest of the conditions should increase up to 60,000 fluorescence units (see Table 2).
When reading protein-Rluc expression, values should be around 50,000-150,000 units (see Table 4).
If expression values are not in this range, discard the data. Readjust transfection amounts until obtaining expression values in the indicated range.

Calculations
1. The X axis of the BRET graph (Figure 3) shows the ratio between the expression of both fusion proteins in the assay. Subtract the value of protein-YFP emission of the first transfection condition (blank) from all conditions. Then, divide this fluorescence value by protein-RLuc expression of the corresponding transfection condition. Finally, multiply this ratio by 1,000 for easier data handling (Table 5).

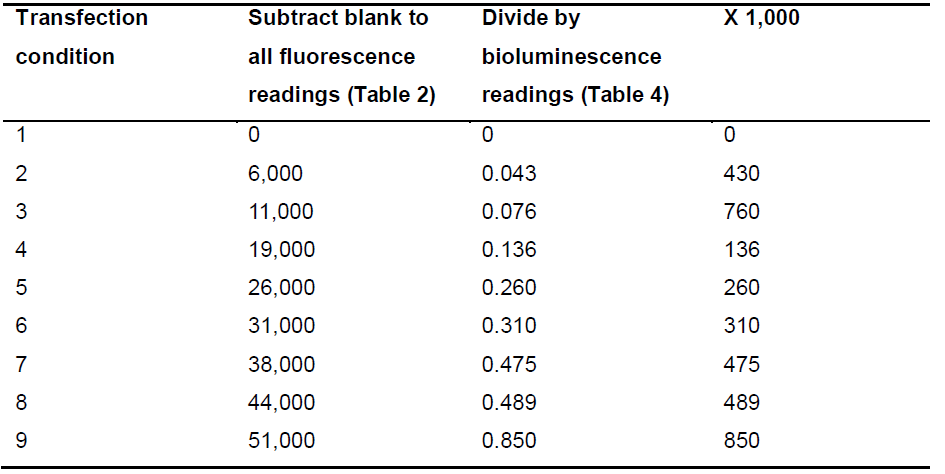

  Table 5. Example of calculations of the independent variable (X axis values)
2. The Y axis of the graph shows net BRET (Figure 3). Net BRET is defined as [530 nm emission/485 nm emission] minus the [530 nm emission/485 nm emission] value obtained in the first condition (blank). When measuring BRET, Mithras software already gives for each well plate the ratio between protein-EYFP emission (due to energy transfer) and protein-Rluc emission (see Table 3). To all these values subtract the value of the ratio of the first condition (blank). The netBRET value is usually expressed in milliBRET units (mBu) = net BRET x 1,000. Negative netBRET values should be discarded. netBRET values under 20 mBu indicate lack of energy transfer (in the conditions of the assay) (Table 6).

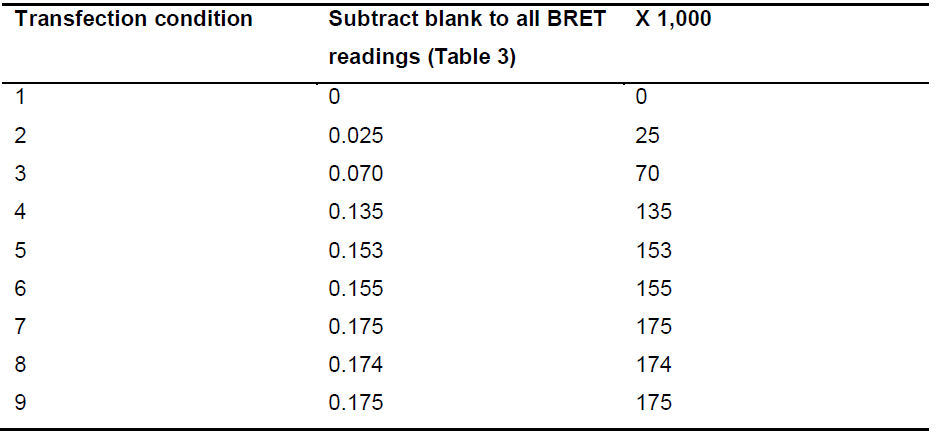

  Table 6. Example of calculations of the dependent variable (Y axis values)Table 6. Example of calculations of the dependent variable (Y axis values)
Data plotting and calculation of parameters: BRET_max and BRET₅₀
Around 5 replicates (all showing good expression values) of each condition are needed to build an appropriate BRET curve. When enough data is collected, enter X/Y pair of values for each condition into GraphPad software and adjust values by non-linear regression to the “One-site specific binding equation” (provided by the software: Y = B_max·X/(K_D + X)). GraphPad will show parameter values for B_max and K_D; B_max is equivalent to the maximal BRET (BRET_max) and K_D is equivalent to the ratio (in X axis) providing a BRET reading (Y axis) equal to BRET_max/2. These parameters are useful to compare data from different BRET experiments/conditions.

If data result in a saturable curve, which at least reaches a BRET_max of 20 mBu, the BRET is considered as positive, that is, there is an interaction between the two receptors (Figure 3). If necessary, in order to obtain readings at higher X-axis values (to reach saturation) do further transfection conditions with higher protein-EYFP amount. Any linear relationship is considered a negative result, i.e., a lack of interaction. In this case, e.g., when plotting the negative control, data must be adjusted by linear regression (x = 0, y = 0, Figure 4).
Advantages, pitfalls and trouble solving
The advantage of BRET over FRET is the lack of fluorescence emission source to excite the fluorescence donor. In addition, fluorescent illumination may lead to high background signals and, eventually, to acceptor excitation and/or signal quenching. As an exception, FRET is the choice when interactions are investigated in sections of tissue by means of a confocal-FRET approach. Lack of specific signal may be not related with lack of interactions. As already mentioned, the two options may be tried: R1-Rluc and R2-YFP or R2-Rluc and R1-YFP. Eventually BRET² (using a receptor fused to Rluc and another receptor fused to GFP²) may solve the issue as the intensity of the signals is higher than in BRET¹.
Notes:
1. Five different BRET experimental sessions must, at least, be performed.
2. Each reading is considered a value for making calculations using the GraphPad software. It is not correct to make the mean of results of “same” condition in different days. Reason: transfection efficiency varies from day to day. Accordingly, the ratio in the X-axis changes from experiment to experiment and, therefore, the X-value mean of replicates of each point in a given experiment is considered an individual value. The SD is obtained after nonlinear regression including all “individual” data points obtained in all experimental sessions. During several years, researchers used to put mean X values from different experiments and “horizontal” bar errors, but this procedure is incorrect.

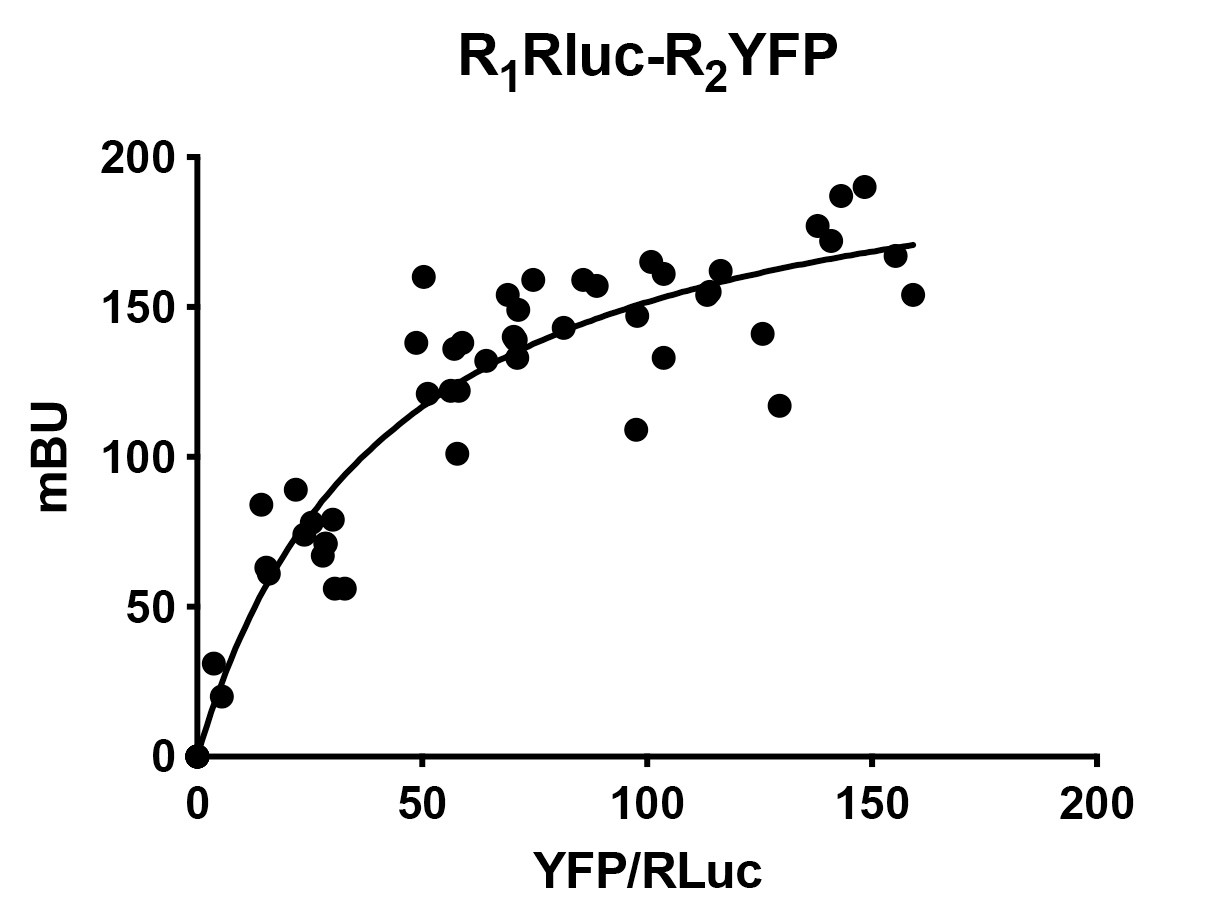

  Figure 3. Example of positive BRET. When two receptors form heteromers, BRET assay results in a saturable curve. Bmax and K_D for the curve are provided by non-linear-regression. For this curve, BRET_max= 220 ± 10 mBU and BRET50= 43 ± 7 (data are mean ± SEM).

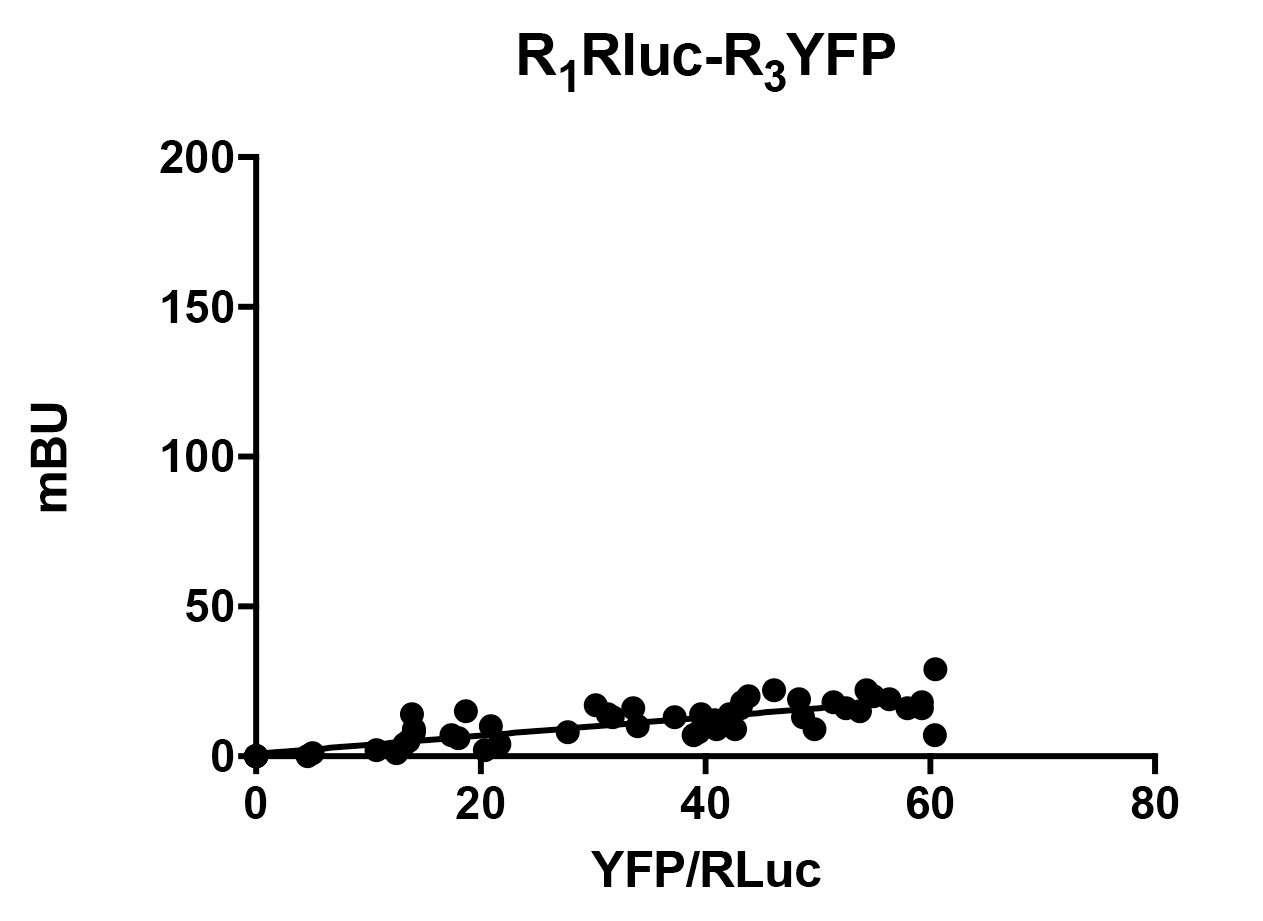

  Figure 4. Example of negative BRET. In the case of two receptors that do not form heteromers, data fit to a linear regression.

Recipes

Sterile 40 µM PEI
1. Dilute 1 g PEI in 1 L MilliQ water, adjust to pH= 5.5 with 1 M HCl
2. Filter through a 0.22 µm filter
3. Store in small volume aliquots to avoid continuous freeze/thaw cycles (e.g., 5 ml)
Sterile 150 mM NaCl
Dilute 8.7 g NaCl in 1 L MilliQ water, filter through a 0.22 µm filter
Serial BSA dilutions (0-1 mg/ml)
Resuspend 1 mg BSA in 1 ml of MilliQ water, and do serial dilutions in MilliQ water to obtain 0.5, 0.4, 0.3, 0.2, 0.1 and 0 mg/ml solutions
Supplemented DMEM
Add 25 ml of heat-inactivated FBS (incubate FBS for 30 min at 56 °C), 5 ml of L-glutamine, 5 ml of penicillin/streptomycin and 5 ml of MEM Non-Essential Amino Acids Solution in a 500 ml DMEM bottle
HBSS
1.26 mM CaCl₂
5 mM KCl
0.44 mM KH₂PO₄
0.5 mM MgCl₂
0.4 mM MgSO₄
137 mM NaCl
0.34 mM Na₂HPO₄
10 mM HEPES
For 5 L:
0.92 g CaCl₂·2H₂O
1.85 g KCl
1.85 g KH₂PO₄
0.235 g MgCl₂, anhydrous
0.5 g MgSO₄·7H₂O
40 g NaCl
0.605 g Na₂HPO₄·12H₂O
11.925 g HEPES
Dissolved in 5 L MilliQ water, pH = 7.4
Store solution at 4 °C
For HBSS-glucose 0.1% (w/v):
Dilute 100 mg glucose in 100 ml HBSS (prepare fresh)
Coelenterazine H solution
Resuspend 1 mg stock in 1,227 µl ethanol

Acknowledgments

This work was supported by the Spanish Ministry of Innovation and Competitiveness (MINECO). Grant Ref No. SAF2009-07276, SAF2012-39875-C02-01 and BFU2015-64405-R (they may include EU FEDER funds).
This protocol was commissioned upon publication of Navarro et al., 2018. A selection of articles from our laboratory in which the protocol has been used are: Canals et al. (2003 and 2004), Carriba et al. (2008), Martínez-Pinilla et al. (2014 and 2015), Navarro et al. (2016 and 2018a and 2018b), Rodríguez-Ruiz et al. (2017) and Hinz et al. (2018).

Competing interests

Authors declare no competing of interests.
