Intracellular Invasion and Killing Assay to Investigate the Effects of Binge Alcohol Toxicity in Murine Alveolar Macrophages

Materials and Reagents

1. Pipette tips (USA scientific, catalog numbers: [10 μl] 1011212710; [200 μl] 11208710; [1,000 μl] 11267710)
2. T-75 tissue culture flask (VWR, catalog number: 10062860)
3. 5 ml serological transfer pipette (Corning, Falcon, catalog number: 357543)
4. 10 ml serological transfer pipette (Corning, Falcon, catalog number: 356551)
5. 25 ml serological transfer pipette (Corning, Falcon, catalog number: 356535)
6. Tissue culture 24-well plates (Sigma-Aldrich, catalog number: SIAL0524)
7. Sterile Petri dish (BD, Falcon, catalog number: 351029)
8. 50 ml tube (Falcon, Becton Dickinson, catalog number:352098)
9. 15 ml tube (Falcon, Becton Dickinson, catalog number: 352099)
10. Eppendorf tubes (1.6 ml, Flat top) (Midwest Scientific, catalog number: SS1500)
11. L-shaped spreader (USA Scientific, catalog number: 29775500)
12. Burkholderia thailandensis E264
13. 0.25% Trypsin (Gibco, Life Technologies, catalog number: 25200056)
14. Phenol red-free RPMI-1640 medium (Life Technologies, Gibco, catalog number: 11835030)
15. Heat Inactivated FBS (fetal bovine serum) (ATCC, catalog number: 80721500)
16. 1 M HEPES (Sigma-Aldrich, catalog number: 7365459)
17. 100x Non-Essential Amino Acid Solution (ATCC, catalog number: 302116)
18. 75.0 g/L Sodium Bicarbonate Solution (HyClone, Thermo Scientific, catalog number: SH30033.01)
19. 100x Antibiotic/Antimycotic Solution (J R Scientific, Inc., catalog number: 20004)
20. 1x Ca²⁺/Mg²⁺-free DPBS (Gibco, Life Technologies, catalog number: A12856-01)
21. Alveolar macrophages (AMs) (ATCC, catalog number: CRL-2019)
22. 20 μg IFN-γ (ProSpec-Tany TechnoGene Ltd., catalog number: Cyt358a)
23. Luria Bertani (LB) broth (BD, Difco, catalog number: 244620)
24. Luria Bertani agar (BD, BBL, catalog number: 212304)

25. Absolute Ethanol (200 proof) (Fisher Scientific, catalog number:174904)
26. Kanamycin (BioChemika, Fluka, catalog number: 42904168)
27. Clorox Germicidal Bleach (VWR, catalog number: 10028048)
28. Triton X-100 (Sigma Chemical CO., catalog number:103H0421)
29. 10% Heat inactivated FBS/1x DPBS (see Recipes)
30. 1x antibiotic/antimycotic solution (see Recipes)
31. Alveolar macrophage media (RPMI) (see Recipes)
32. 200 U/μl IFN-γ (see Recipes)
33. 0.08% ethanol (see Recipes)
34. 250 or 50 μg/ml Kanamycin (see Recipes)
35. 10% Clorox Bleach (see Recipes)
36. 0.1% Triton X-100 (see Recipes)


Equipment

1. P10 Pipetman (Rainin, catalog number: A0602538G)
2. P20 Pipetman (VWR, catalog number: 041432480)
3. P200 Pipetman (VWR, catalog number: 441454097)
4. P1000 Pipetman (Gilson, catalog number: F123602)
5. Spectrophotometer (Eppendorf, BioPhotometer, model number: 613124291)
6. 37 °C, 5.5%, CO₂ water jacketed Incubator (Eppendorf, New Brunswick, model number: C017051201000)
7. Biosafety cabinet (Forma Scientific, model number: 1286)
8. Shallow form water bath (Bio-Rad, Sheldon Manufacturing, INC., model number: BR122)
9. Hemocytometer chamber (Hausser Scientific, catalog number: 3100)
10. -20 °C freezer
11. -80 °C freezer
12. Inverted light microscope (VanGuard, model number: 002443)
13. Autoclave
14. Orbital floor shaker (New Brunswick Scientific CO., model number: C25)
15. Refrigerated tabletop centrifuge for 2 ml tubes (Lab Care America, Jouan CR3, model number: CR3i)
16. Centrifuge, Sorvall legend RT+ (Thermo Scientific, catalog number: 75004377)

Software

1. GraphPad Prism 5 (GraphPad Software)

Procedure

Notes:

1. Pre-warm all tissue culture reagents (see Recipes), to 37 °C prior to experiment.
2. This protocol was performed with sterile technique under biosafety level two conditions.

1. Grow alveolar macrophages (AMs) (Figure 1A)

   1. Thaw cryovial (1 x 10⁶ cells/1.0 ml), transfer contents of vial to a 15 ml tube and centrifuge for 3 min at 1,300 x g (4 °C).
   2. Decant supernatant and resuspend cell pellet in 1 ml of pre-warmed media (see Note above).
   3. Transfer cell re-suspension into a T-75 tissue culture treated flask.
   4. Incubate the tissue culture flask for 48-72 h in the incubator (see Equipment #6).
   5. Replace media in the tissue culture flask every 24 h prior to experiment.
   6. Allow AM’s to grow to 70%-80% confluency in the tissue culture flask prior to use in an experimental tissue culture plate.


2. Seed AMs in tissue culture plate (Figure 1B)

   1. Remove media from the T-75 flask and wash cells with 5 ml 1x DPBS.
   2. Discard 1x DPBS wash.
   3. Trypsinize tissue culture flask by adding 3 ml of trypsin for 4 min at 37 °C.
   4. Gently scrape the bottom of the flask to remove attached cells.
   5. Agitate flask and observe under an inverted light microscope to ensure that > 90% of the cells have detached.
   6. Neutralize trypsin by adding 6-8 ml pre-warmed media.
   7. Remove cell suspension from the flask and transfer to a 15 ml conical tube.
   8. Spin down cells at 480 x g for 5 min, then remove as much supernatant as possible.
   9. Resuspend cells in 3-5 ml of RPMI (pre-warmed to 37 °C).

   10. Take 10 μl of the cell resuspension and mix with 10 μl trypan blue. Calculate the concentration of the cell suspension using a hemocytometer as described in Tachibana et al. (2016 and 2017).
       Equation for calculating concentration using the hemocytometer:




   11. Ensure no excessive cell doublets are present microscopically. We recommend to re-dissociate excessive cell clumping.
   12. Dilute cell suspension to the actual final volume of 5 x 10⁵ cells/ml in RPMI.
   13. Aliquot 1 ml RPMI cell suspension per well to a 24-well flat bottom plate.
   14. Incubate overnight at 37 °C to enable cells to become adherent.


3. Challenge cells with binge alcohol dose (Figures 1C and 1D)

   1. Bring absolute ethanol (200 proof) to room temperature.
   2. Replace media and add media supplemented with ethanol reaching a 0.08% v/v concentration in 1 ml (see Recipes).
   3. For negative control add media without ethanol.
   4. Challenge cells with binge alcohol dose for 3 h.
   5. Wash cells with 1x DPBS and replace media with antibiotic-free media.
      Note: Incubator water bath is replaced with water supplemented with ethanol reaching a 0.08% (v/v) concentration. Atmosphere ethanol concentration is equivalent to tissue culture media alcohol concentration to minimize evaporation.


4. Stimulation (Figure 1E)
   Prime cells: remove cell supernatant and add fresh RPMI media with 400 U/ml IFN-γ, incubate at 37 °C for 8 to 12 h. Replace media for other wells without 400 U/ml IFN-γ for “no- IFN-γ” control.
   Note: Alveolar macrophages are stimulated with IFN-γ after alcohol challenge and prior to viable bacterial challenge. No additional exogenous LPS stimulation is required.


5. Bacterial preparation and infection (Figure 1F)

   1. For each study, utilize frozen stock cultures (Burkholderia spp.) and inoculate LB broth (see Recipes) and incubate overnight at 37 °C in an orbital shaker incubator.
   2. Dilute overnight bacterial culture 1:100 (0.1 ml into 9.9 ml LB broth) and allow to grow to late-logarithmic phase measured by optical density (OD) at 600 nm.
   3. When OD reaches 0.3 to 0.5 absorbance, collect bacteria in 1 ml by centrifugation (2,500 x g for 5 min) and resuspend in 1 ml of antibiotic-free RPMI media.
   4. From preliminary colony forming unit (CFU) plate counts, adjust the volume to provide multiplicity of infection (MOI) of 1:1 CFUs in 20 μl. Determine the MOI (MOI = number of bacteria per alveolar macrophage cell) and alter the inocula preparation accordingly. For an MOI of 1, add 5 x 10⁵ CFU of B. thailandensis per well containing 5 x 10⁵ AM cells.
      Note: The amount of bacterial culture added will depend upon the density of the bacteria in the media. For this assay, a cell:bacteria ratio of 1:1 is used to allow initial engulfment to occur and further intracellular killing to be monitored. A preliminary experiment should be conducted to determine total CFUs/1 ml for OD used in assay after bacteria are resuspended in antibiotic-free RPMI media.
   5. Infect alveolar macrophage monolayers per well by tilting the tissue culture plate toward you while administering the bacteria into pooled media. Do not disturb adhered macrophage monolayer with pipette tip. For negative control add 1x DPBS per well.
   6. Centrifuge the cell culture plate for 5 min at 250 x g to increase interaction between cells and bacteria (see Equipment #16).
   7. Allow cells and bacteria to co-culture for 3 h.


6. Elimination of extracellular bacteria (Figure 1G)
   Note: Media and instruments in contact with viable bacteria were sterilized with 70% ethanol, 10% bleach, and DI water.

   1. Discard supernatant from the tissue culture plate into 10% bleach.
   2. Wash cell monolayers with pre-warmed 1x DPBS twice.
   3. Replace media in the tissue culture plate with RPMI supplemented with 250 μg/ml Kanamycin and incubate monolayers for 1 h.
      Note: 250 μg/ml will eliminate ≥ 90% bacteria in 1 h and maintain ≥ 95% viability of macrophage cells. To maintain cell viability, antibiotic concentration is reduced after 1 h.
   4. Remove media and replace with RPMI media supplemented with 50 μg/ml Kanamycin.
   5. Incubate cells at 37 °C for a total of 4 and 8 h post infection.


7. Macrophage lysis and measurement (Figure 1H)

   1. Discard media and replace with 0.5 ml of 0.1 % Triton X-100 lysis buffer (see Recipes).
   2. Homogenize cell monolayers completely by pipetting up and down several times using a P1000 Pipetman (i.e., at least 50 times) until no clusters of cells are observed.
   3. Transfer entire contents of each well into 1.5 ml Eppendorf tubes and label.
   4. Spin down cells at 500 x g for 10 min then remove as much solution as possible.
   5. Re-suspend cells in 1 ml of pre-warmed LB media.
   6. Serial dilute (i.e., 1:10) each sample in sterile 1.5 ml Eppendorf tubes.
   7. Apply 50 μl of re-suspended cell lysate onto pre-warmed LB agar plates (see Recipes).
   8. Spread contents of cell lysate over the surface of the LB agar plate with a sterile L-shaped spreader (i.e., hockey stick).
   9. Allow pre-labeled plates to stand right-side up for 10 min before inverting and storing at 37 °C.
   10. Incubate LB agar plates for 48 h.
       Note: At 24 h incubation, plates should be removed from the incubator and CFU’s quantified. Some colonies may appear after 24 h. Plates should be validated and further analyzed at 48 h post initial incubation.
   11. Quantify CFU’s by utilizing the following equation:
       (CFU’s x DF)/volume spread over surface of LB plate
       DF = dilution factor utilized to grow bacteria
       CFU’s = number of total colonies counted on a single plate
       For example: 150 colonies of B. thailandensis in the plate with dilution 3 (1:1,000); 150 x 10³ (dilution factor)/0.050 ml (volume spread on LB plate) = 3 x 10⁶ CFU/ml

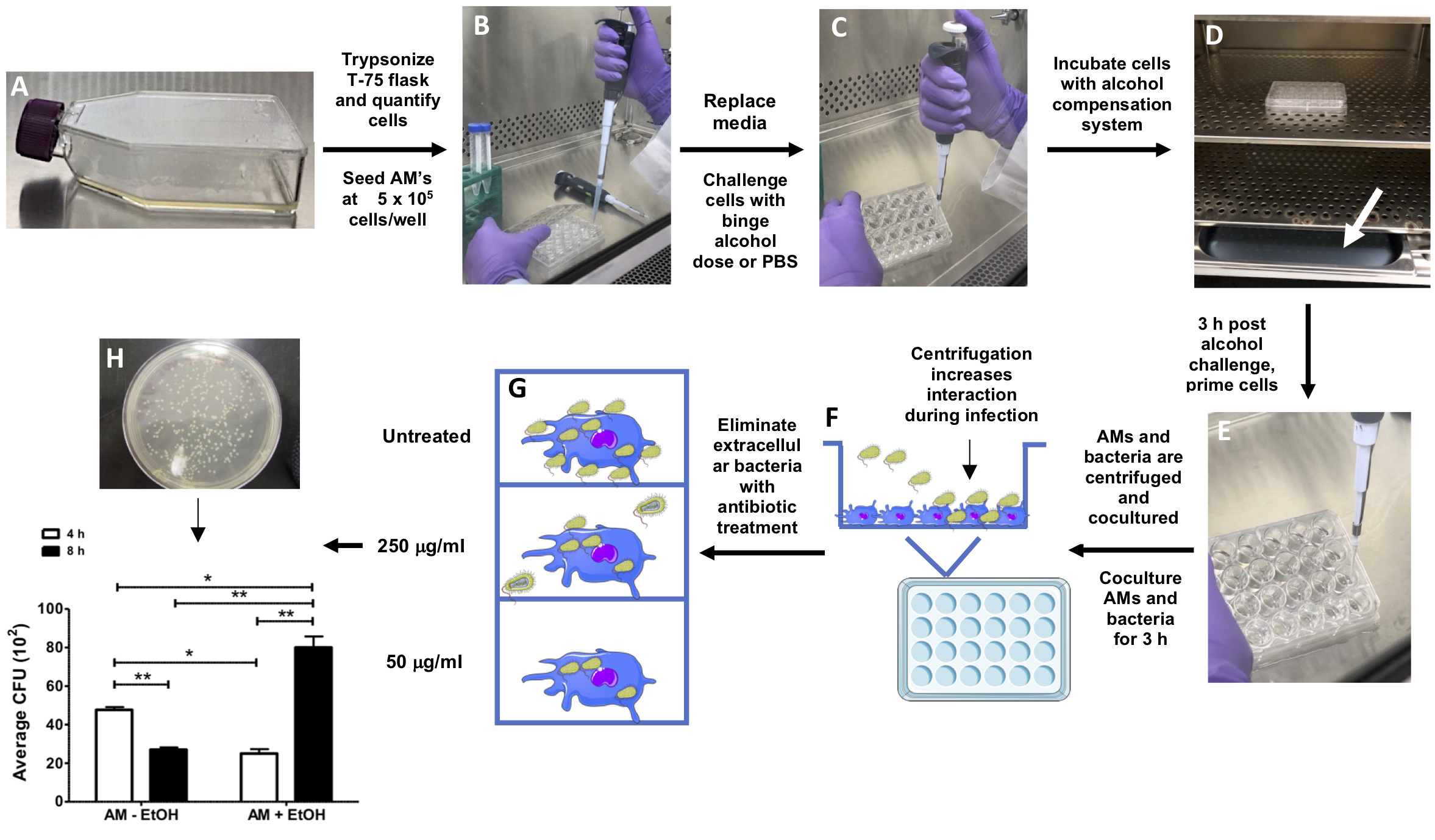

   Figure 1. Representative image at different time points of binge alcohol and phagocytosis protocol. A. Alveolar macrophages (AMs) grown in a T-75 tissue treated flask. B. Quantified AMs are seeded into a 24-well plate tissue culture at a density of 5 x 10⁵ cells/well. C. AMs are challenged with a single binge alcohol dose (0.08% v/v). D. Cells are incubated in a low evaporative tissue culture plate and the binge alcohol compensation system is applied (white arrow). E. AMs are primed with IFN-γ post alcohol challenge. F. AMs are infected and tissue culture plate is centrifuged to increase AM-bacteria interaction for engulfment and intracellular invasion. G. AMs are treated with 250 μg/ml for 1 h, followed by 50 μg/ml kanamycin to eliminate extracellular bacteria. H. After 4 and 8 h post infection, AMs are washed, lysed, serial diluted, and viable bacteria grown on LB agar plates. CFUs are quantified and averaged per experimental group compared to control (non-alcohol treated cell).


Data analysis

1. For data analysis, to assess the colony forming unit (CFU) we use a minimum of three experimental replicates. For each experimental replicate, we analyzed 3 assay replicates per dilution (i.e., 3 LB agar plates for 10¹, 10², 10³ dilutions). We take images of each LB agar plate, count bacterial colonies on each respective LB agar plate and analyze colony formation at 24- and 48-h post CFU plate formation (Jimenez et al., 2017).
2. For statistical analysis, we use GraphPad Prism. To compare two data sets, we perform a Student’s t-test.


Notes

1. When centrifuging the bacterial sub-culture, we recommend an optical density (OD) near 0.5 as you may lose bacteria during resuspension in RPMI antibiotic-free media.
2. We recommend making all reagents fresh prior to use.
3. The protocol can be adapted to test the effects of binge alcohol toxicity on AMs with different bacterial (wild-type) infections.
   Note: Preliminary studies should be conducted to determine bacterial growth conditions and antibiotic sensitivities prior to AM infection.


Recipes

1. 10% FBS/1x DPBS (10 ml)
   Note: Make fresh prior to use.

   1. In 9 ml of 1x DPBS, add 1 ml FBS
   2. Filter sterilize (0.22 μm), aliquot and store at -20 °C
2. 1x antibiotic/mycotic (10 ml)
   In 9,900 μl of 1x DPBS, add 100 μl of antibiotic/mycotic (100x)
3. Alveolar macrophage media (RPMI)
   Note: Media is made in 50 ml stocks.
   Add all of the components:
   0.5 ml HEPES
   0.75 ml Sodium-bicarbonate
   0.5 ml non-essential amino acids
   0.5 ml antibiotic/mycotic (1x)
   5 ml FBS
   42.75 ml of RPMI media
   Note: Basal media arrives supplemented with L-glutamine from purchase provider.
4. 200 U/μl IFN-γ (1 ml)

   1. Specific activity is 2 x 10⁷ U/mg or 1 x 10⁴ U/μg
   2. Dissolve 20 μg in 1 ml 1x DPBS and generate 2 x 10⁵ U/ml
   3. Aliquot stock into 10, 25, 50 μl volumes per tubes to minimize freeze-thaw cycles
   4. Utilize IFN-γ aliquots at 200 U/μl
5. 0.08% ethanol
   Note: Make fresh and allow to reach room temperature prior to use.
   In 999.2 μl of tissue culture media add 0.8 μl of 200 proof absolute ethanol (100%)
6. 250 or 50 μg/ml Kanamycin (1 ml)

   1. In 1 ml DPBS (1x), dissolve 1 mg or 1,000 μg of Kanamycin (stock)
      Note: Dissolve powder completely before dilutions.
   2. In 750 μl of 1x DPBS or tissue culture media, add 250 μl of 1mg stock for 250 μg/ml
   3. In 950 μl of 1x DPBS or tissue culture media, add 50 μl of 1 mg stock for 50 μg/ml
7. 10% Clorox Bleach (500 ml)
   Note: Make fresh prior to use.
   In 450 ml DI water, add 50 ml of 100% (undiluted) bleach
8. 0.1% Triton X-100 (50 ml)
   In 49,950 μl of 1x DPBS, add 50 μl of (undiluted) Triton X-100
9. LB Broth (1 liter)
   Dissolve 25 g LB Broth powder to 1 L of deionized water, and autoclave at 121 °C for 30 min and store at room temperature
10. LB plates
    Add 15 g of agar to 1 L of LB broth prior to autoclave process at 121 °C for 30 min and pour
    ~20 ml of liquid into sterile Petri-dishes. Allow media to cool and harden before use


Acknowledgments

This protocol is an extended version of the one described in Jimenez et al. (2017). The research has received funding from The Department of Defense (DTRA) [HDTRA1-14-C-0022]. We thank research associates at The Pathogen Microbiome Institute (PMI) at Northern Arizona University for helpful suggestions in optimizing this assay and to Dr. Paul Keim for the generously providing B. thailandensis. In addition, we thank Dr. Becky Coleman, for guidance and direction with the initial approach.

Competing interests

The authors declare that there is no conflict of interest.
