Fluorescence Titrations to Determine the Binding Affinity of Cyclic Nucleotides to SthK Ion Channels

Materials and Reagents

1. Amicon Ultra-15 Centrifugal Filter MWCO 100 kDa (Merck, catalog number: UFC910024 )
2. Amicon Ultra-4 Centrifugal Filter MWCO 100 kDa (Merck, catalog number: UFC810024 )
3. BenchMark^TM Pre-stained Protein Ladder (Thermo Fisher Scientific, Invitrogen^TM, catalog number: 10748010 )
4. Detergent Removal Column (Thermo Fisher Scientific, Pierce^TM, catalog number: 87779 )
5. Ethanol ≥ 95% (Decon Labs, catalog number: V1116 )
6. Amphipol A8-35 (Anatrace, catalog number: A835 )
7. 3',5'-cyclic AMP, cAMP (Alfa Aesar, catalog number: J62174-03 )
8. 3',5'-cyclic GMP, cGMP (Sigma-Aldrich, catalog number: G6129 )

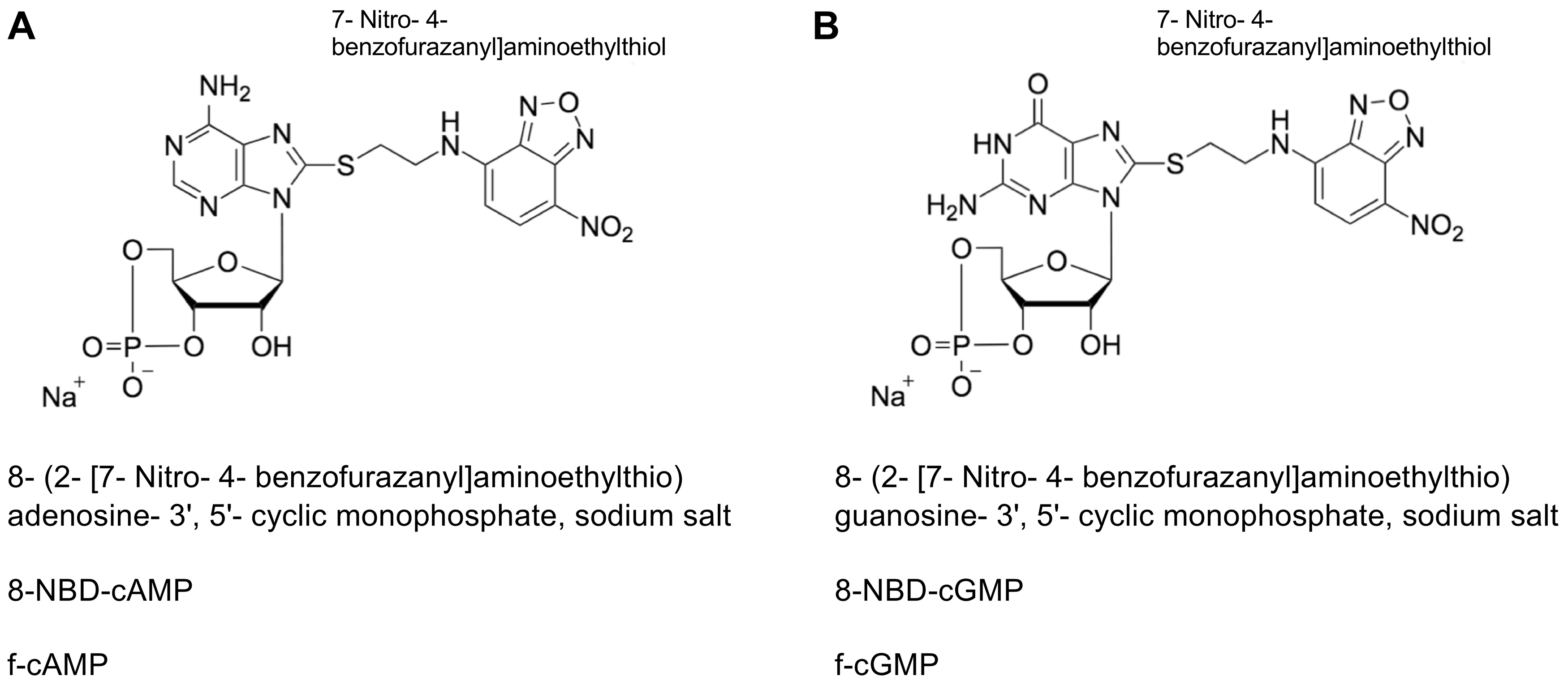

9. 8-NBD-cAMP, f-cAMP (BIOLOG, catalog number: N 002 )
10. 8-NBD-cGMP, f-cGMP (BIOLOG, catalog number: N 001 )
11. Glutaraldehyde (Sigma-Aldrich, catalog number: G6257 )
12. HEPES (Simga-Aldrich, catalog number: H3375 )
13. KCl (Simga-Aldrich, catalog number: P9333 )
14. Superdex 200 10/300 GL (GE Healthcare, catalog number: 17517501 )
15. Amphipol stock solution (see Recipes)
16. 200 mM cAMP stock solution (see Recipes)
17. Assay buffer (see Recipes)


Equipment

1. Stir bar (suitable for the cuvette)
2. Set of single channel pipettes, ranging from 0.1-1,000 μl (VWR, catalog number: 75788-460 )
3. Äkta Chromatography System (GE Healthcare)
4. NanoDrop^TM (Thermo Fisher Scientific)
5. Fluorescence-spectrophotometer (HORIBA, PTI QuantaMaster^TM, model: 800 )
6. UV cuvette (suitable for wavelengths between 230 and 800 nm, volume according to the specifications of the spectrometer between 1 and 4 ml)
7. Refrigerated Microcentrifuge (Eppendorf, model: 5418 R )
8. Rotator (Fixed Speed Rotator, Cole-Parmer, Stuart, model: SB2 )


Software

1. Data can be analyzed using any software capable of programmable, non-linear least-squares fitting (We analyzed the data using GraFit 5)
2. GraFit 5.0.13 (Erithacus Software Limited, http://www.erithacus.com/grafit/)


Procedure

1. Sample preparation and cAMP removal
   The expression and purification details of SthK are specified in Schmidpeter et al. (2018) and in the following we will only describe the details for the sample preparation in order to perform fluorescence titrations starting after eluting the sample from the immobilized metal affinity column. The ligand-removal step is only applicable for protein samples that are not stable in detergent in the absence of ligand and thus require purification in the presence of ligand.

   1. Concentrate the protein solution to ~15 mg/ml (using Amicon Ultra-15 Centrifugal Filter MWCO 100 kDa) and add additional cAMP to ~400 μM.
      Note: Make sure to saturate SthK with cAMP at this stage as this helps the stability of the protein. However, add additional cAMP only after you determined the protein concentration as the absorbance of nucleotides at 260 nm will influence the reading at 280 nm. By adding cAMP from a 200 mM stock solution the dilution will not significantly affect protein concentration (1:1,000 dilution).
   2. Briefly spin down aggregates (15,000 x g, 4 °C, 10 min) and add amphipol A8-35 in a ratio of A8-35:SthK 3:1 (weight/weight).
      Note: Amphipol should be hydrated in ddH₂O overnight at 4 °C before use. Aliquots of 100 mg/ml A8-35 can be stored at -20 °C but avoid repeated freezing and thawing.
   3. Incubate protein amphipol mixture for 1 h at 4 °C under constant agitation (such as slowly rotating).
   4. Wash detergent removal columns (Pierce^TM Detergent Removal Spin Column, 4 ml) by gravity flow with 3 column volumes of ddH₂O and equilibrate with 3 column volumes of buffer without detergent and reduced cAMP concentrations (20 mM HEPES, 100 mM KCl, 100 μM cAMP, pH 7.4).
   5. Load 1 ml of the SthK:amphipol mixture onto the detergent removal column and let solution enter the column bed completely.
   6. Add 4 ml of buffer to the column and immediately collect fractions of 500 μl.
   7. Check all fractions for their protein content by measuring absorbance spectra.
      Note: By measuring spectra from 350 nm to 220 nm, it is possible to quickly distinguish between protein-containing fractions (at 280 nm) and cAMP-containing fractions (at 260 nm) that will elute towards the end of the detergent removal column.
   8. Pool the protein-containing fractions and concentrate to ~10 mg/ml using an Amicon^® Ultra-4 concentrator with 100 kDa cutoff.
      Note: SthK is stable in amphipol even in the absence of cAMP. At this point the concentration of cAMP can be reduced by diluting the protein in buffer without cAMP and concentrating it again. Reducing the cAMP concentration before the gel filtration helps to achieve complete removal of the ligand.
   9. Load SthK in amphipol on a Superdex200 (10/300) column in assay buffer and perform the gel filtration (Figure 2A) using an Äkta system (GE Healthcare).
      Note: For details about size exclusion chromatography as well as practical aspects, the handbook from GE Healthcare Life Sciences is a good resource.
   10. Collect the peak containing tetrameric SthK (Figures 2A and 2B) and concentrate to ~400 μM using an Amicon^® Ultra-4 concentrator with 100 kDa cutoff.
   11. Determine the final protein concentration from the absorbance spectrum using the extinction coefficient of your protein (for SthK, the extinction coefficient is ε₂₈₀ = 55,900 M^-1 cm^-1).
       Note: The absorbance ratio A₂₆₀/A₂₈₀ can be used to evaluate the efficiency of cAMP removal. Typically, we reach a value of 0.5 for SthK without cAMP.

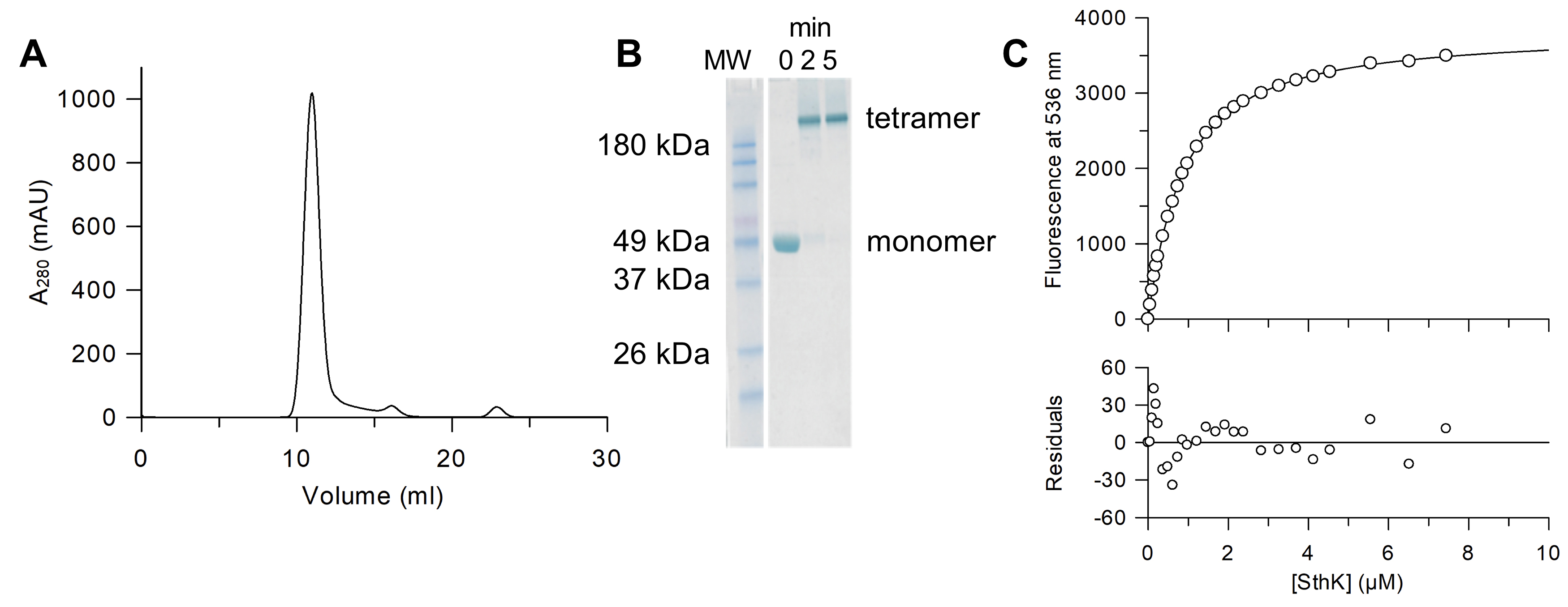

       Figure 2. Sample preparation and titration of 8-NBD-cAMP with SthK in amphipol. A. Gel filtration profile of SthK after amphipol exchange (Superdex200 10/300 in 20 mM HEPES, 100 mM KCl, pH 7.4) to remove cAMP. B. SDS-PAGE of the crosslinking of SthK in amphipol A8-35 using 0.13% glutaraldehyde (Kapoor, 2015) (at 37 °C for 5 min) shows that the main peak from the gel filtration is tetrameric SthK. All samples were heated to 98 °C for 10 min before SDS-PAGE was performed according to the manufacturer’s instructions. Selected bands of the molecular weight standard (MW, BenchMark^TM Pre-stained Protein Ladder, Thermo Fisher Scientific) are labeled. C. Example of a single titration experiment between 8-NBD-cAMP and SthK (upper panel) with averaged fluorescence values (circles) and the fit according to equation 6 (line) corrected by the fluorescence of 8-NBD-cAMP in the absence of SthK (K_D = 0.72 μM). The residuals between the fit and the data points (lower panel) demonstrate the goodness of the fit.


2. Titration of fluorescent cyclic nucleotides with SthK

   1. Prepare SthK stock solution for the titration by mixing SthK in amphipol with f-cAMP or f-cGMP and assay buffer to reach the desired concentrations (concentrations can be easily adjusted according to Table 1).
      Note: As for every fluorescence titration the molecule that generates the signal should be kept at a constant concentration throughout the experiment to avoid signal changes due to changes in the concentration. Thus, f-cAMP or f-cGMP should be added to the titrand stock in the final concentration (see Step B6).
   2. Turn on the fluorescence spectrometer and wait for at least 20 min in order for the lamp to reach a stable temperature and set the excitation wavelength to 463 nm, the emission wavelength to 536 nm each with 5 nm bandwidth.
      Note: The bandwidth settings depend strongly on the fluorometer. If fluorescence bleaching is observed during the experiment the excitation bandwidth can be reduced. If the recorded signal intensity is low the emission bandwidth can be increased.
   3. Wash a UV-compatible cuvette 2 x with ddH₂O, 2 x 70% Ethanol and again 2 x ddH₂O, quickly dry it using pressured air, put a clean stir bar inside the cuvette and place the cuvette in the fluorometer.
   4. Add 1,999.8 μl of assay buffer to the cuvette and adjust the speed of the stir bar to medium.
      Note: Constant stirring of the solution throughout the entire experiment ascertains homogeneous equilibration of the components and furthermore increases signal stability by reducing effects of local fluorescence bleaching.
   5. Equilibrate the buffer for 2 min and measure the fluorescence at 536 nm after excitation at 463 nm.
      Note: There are two main modes of measuring the fluorescence. Some instruments read a set number of points and average the fluorescence. Make sure to set the value to at least 5 measurements. The other possibility is to monitor the fluorescence over time and average manually over at least 1 min.
   6. Add 0.2 μl of f-cAMP or f-cGMP from a 1 mM stock solution to the cuvette and equilibrate for 2 min before measuring the fluorescence (0 μM SthK value).
      Note: Using 0.1 μM of fluorescent cNMP turned out to give a good signal in our case. The concentration can be adjusted according to the sensitivity of the spectrometer and the K_D value of the interaction that is being analyzed.
   7. Add 2 μl of the SthK/f-cAMP or SthK/f-cGMP stock solution to the cuvette (according to Table 1), equilibrate for 2 min and measure the fluorescence.
   8. Repeat Step B7 with the volumes defined by your pipetting scheme (see example in Table 1).
      Note: Equilibrate for 2 min every time you add SthK from the stock solution to make sure the complex formation reaches a stable equilibrium state.
       

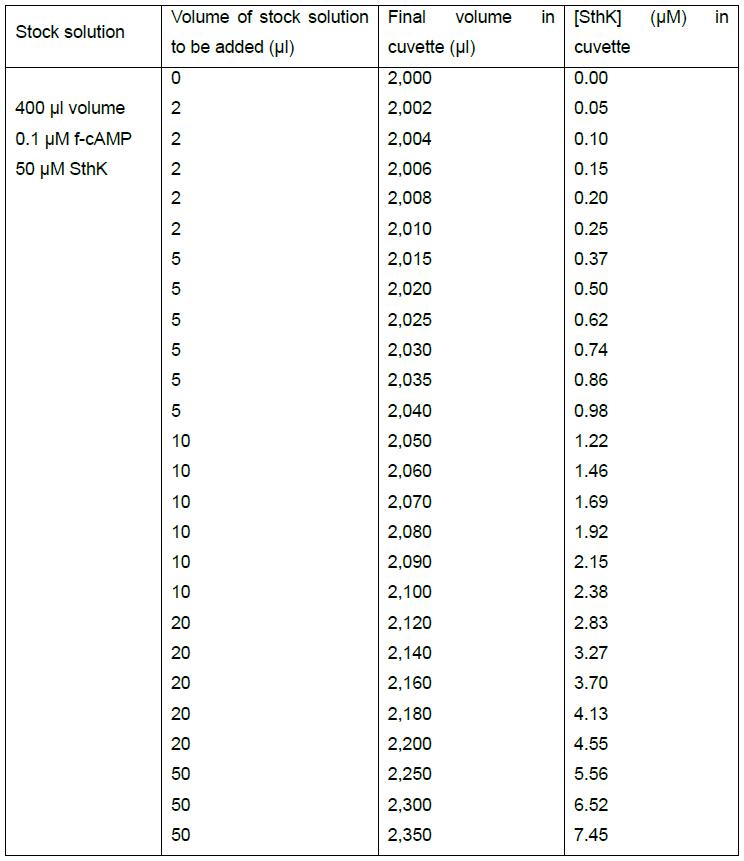

      Table 1. Example of a pipetting scheme for 0.1 μM f-cAMP and increasing concentrations of SthK


      Table 1 provides an example of how a spreadsheet can be set up to easily adjust volumes and concentrations for the titration experiment. The volume and concentrations of the interacting molecules in the stock solution are given in the first column. The final volume in the cuvette (column 3) and the final SthK concentration (column 4) should be calculated as functions of the stock concentration and the added volume (column 1 and 2, respectively) to enable easy adjustments of the experiment. By varying the titrand concentration in the stock solution and the volumes that will be added to the cuvette in every step it is possible to span a wide range of concentrations throughout the titration.


3. Competition assay between labeled cAMP and unlabeled cNMP

   1. Prepare stock solution of SthK in amphipol, f-cAMP and cNMP according to your pipetting scheme (Table 2).
      Note: The concentrations for f-cAMP and SthK are fixed and cNMP (the titrand/competitor) is added at higher concentration. This ensures that the concentrations of the components that provide the read-out (complex between SthK and f-cAMP) are constant throughout the experiment.
   2. Turn on the fluorescence spectrometer and wait for at least 20 min in order for the lamp to reach a stable temperature and set the excitation wavelength to 463 nm, the emission wavelength to 536 nm each with 5 nm bandwidth.
      Note: The bandwidth settings depend strongly on the fluorometer. If fluorescence bleaching is observed during the experiment, the excitation bandwidth can be reduced. If the recorded signal intensity is low, the emission bandwidth can be increased.
   3. Wash a UV-compatible cuvette 2 x with ddH₂O, 2 x 70% Ethanol and again 2 x ddH₂O, quickly dry it using pressured air, put a clean stir bar inside the cuvette and place the cuvette in the fluorometer.
   4. Add assay buffer to the cuvette and adjust the speed of the stir bar to medium. Omit volume for f-cAMP and SthK from the buffer volume in order to reach 2,000 μl for the first data point (see Steps C5 and C6).
   5. Add 0.3 μM f-cAMP to the cuvette, equilibrate for 2 min and measure the fluorescence (this serves as control measurement).
   6. Add 0.3 μM SthK to the cuvette, equilibrate for 2 min and measure the fluorescence (this is the 0 μM cNMP value).
   7. Add 1 μl of the stock solution (defined by your pipetting scheme in Table 2) to the cuvette and equilibrate for 2 min before measuring the fluorescence.
   8. Repeat Step C7 with the volumes defined by your pipetting scheme (Table 2, column 2).
      Note: Equilibrate for 2 min every time you add SthK from the stock solution to make sure the complex formation reaches a stable equilibrium state.

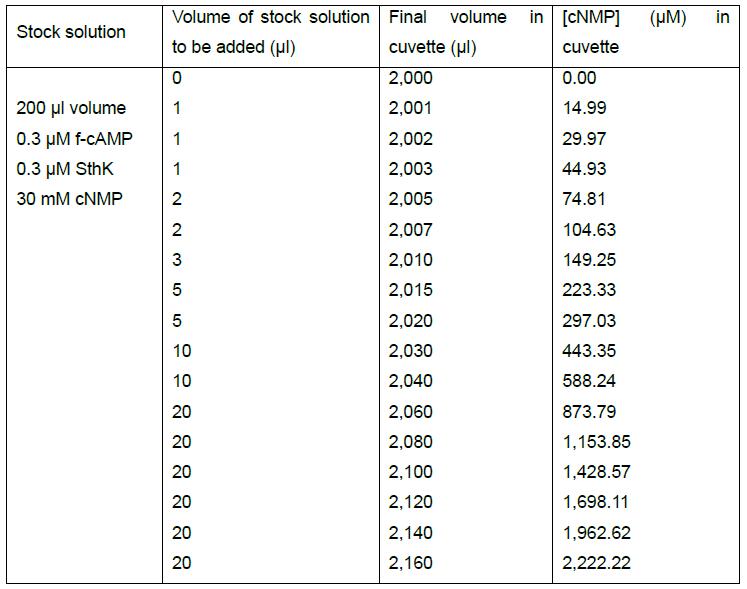

      Table 2. Example of a pipetting scheme for the competition of cNMP with the complex formed between 0.3 μM f-cAMP and 0.3 μM SthK


      Table 2 provides an example of how a spreadsheet can be set up to easily adjust volumes and concentrations for the competition experiment. The volume and concentrations of the interacting molecules in the stock solution are given in the first column. The final volume in the cuvette (column 3) and the final concentration of cNMP (column 4) should be calculated as functions of the stock concentration and the added volume (column 1 and 2, respectively) to enable easy adjustments of the experiment. By varying the competitor concentration (cNMP) in the stock solution and the volumes that will be added to the cuvette in every step, it is possible to span a wide range of concentrations throughout the competition experiment.

Data analysis

In our case, we recorded the fluorescence for every SthK concentration for 1 min with 1 sec intervals and exported the signal as text files. The data were imported into Excel, averaged manually, and the averaged values were then plotted as function of the ligand concentration (SthK for the titration with fluorescent cyclic nucleotides or unlabeled cyclic nucleotide for the competition assays) in GraFit (Figure 2C, Schmidpeter et al., 2018). Analysis was performed for every single titration and competition experiment separately, the resulting K_D values were averaged and the standard error of the mean (SEM) was calculated. For each condition, at least three independent experiments were performed for different protein purifications (Schmidpeter et al., 2018).

1. Analysis of the titration experiments

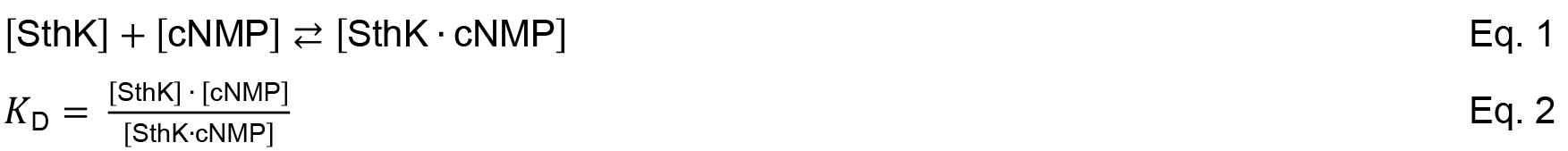

   The titration of fluorescent cyclic-nucleotides with SthK is analyzed according to a two-state model (Equation 1) that directly defines the dissociation constant K_D (Equation 2).



   With [SthK] being the concentration of free SthK monomers, [cNMP] the concentration of free cyclic-nucleotide, [SthK ∙ cNMP] the concentration of the resulting complex and K_D the dissociation constant.

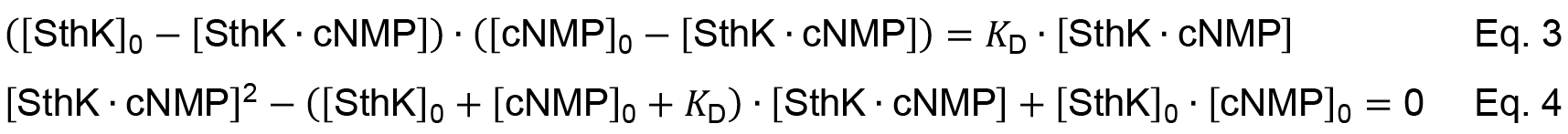

   Given the conservation of mass the free concentrations can be expressed as function of the total concentration and the concentration of the complex (e.g., [SthK] = [SthK]₀ - [SthK ∙ cNMP]). Equation 2 can be re-written to Equation 3 leading to a quadratic equation that describes the complex formation (Equation 4).



   Solving the quadratic equation gives Equation 5.

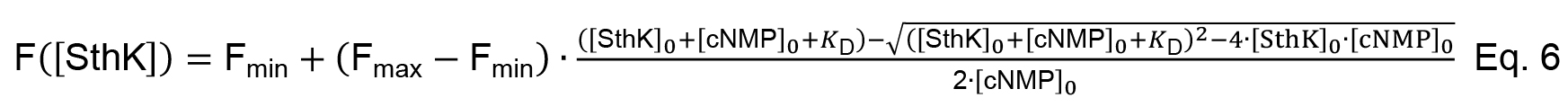

   As the concentration of the fluorescent cNMP is constant throughout the experiment Equation, 5 can be divided by [cNMP]₀. The equation now describes the fraction of bound cNMP as function of [SthK]₀. Furthermore, we assume that the fluorescence increase of cNMP upon interaction with SthK describes the complex formation leading to the final equation to analyze the binding data (Equation 6, Figure 2C).



   With F_min and F_max being the minimum and the maximum fluorescence, respectively (i.e., the fluorescence of [cNMP]₀ alone and [cNMP]₀ saturated with SthK).
   The measured fluorescence values can be normalized using F_min and F_max as determined from this fitting procedure which then describe the fraction of bound cNMP according to the assumptions made before.


2. Analysis of the competition experiments
   Analysis of the data obtained from the competition experiments is more complex as two ligands compete for one binding site according to Equation 7 and has been described before (Wang, 1995; Wilkinson, 2004; Cukkemane et al., 2007).



   where [SthK], [fcAMP] and [cNMP] denote for the concentrations of free SthK, 8-NBD-cAMP and cNMP (either cAMP or cGMP), respectively. [SthK ∙ fcAMP] and [SthK ∙ cNMP] describe the two possible complexes between SthK and 8-NBD-cAMP or SthK and cNMP.

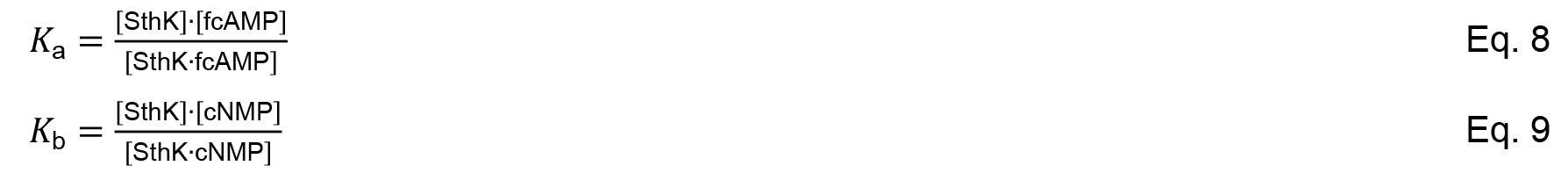

   Accordingly, two dissociation constants can be determined, K_a for the complex between SthK and 8-NBD-cAMP (Equation 8) and K_b for the complex between SthK and cNMP (Equation 9).



   Similar to the titration experiment and considering mass conservation Equations 7-9 can be combined to a cubic equation (Equation 10).

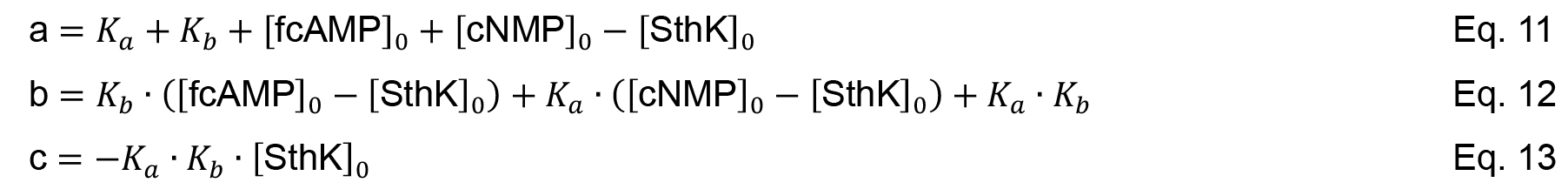

   with a, b and c defined in Equation 11-13.



   where [fcAMP]₀, [cNMP]₀ and [SthK]₀ denote for the total concentration of each compound.

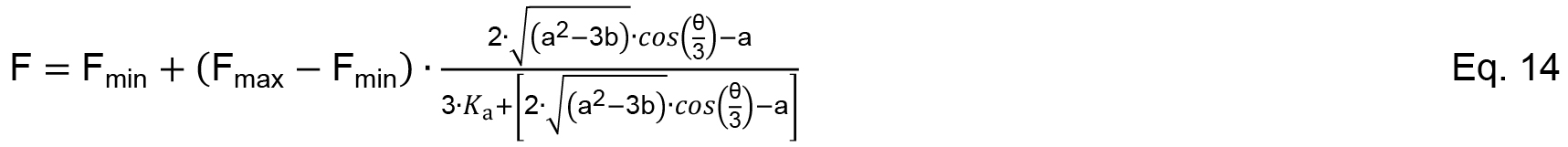

   The cubic function has only one meaningful solution for the specified problem and a detailed derivation of the analysis can be found in Wang (1995) with a more descriptive explanation in Wilkinson (2004). Again, the observed signal change is related to the complex formation between SthK and 8-NBD-cAMP and the data from the competition experiment can be analyzed according to Equation 14.

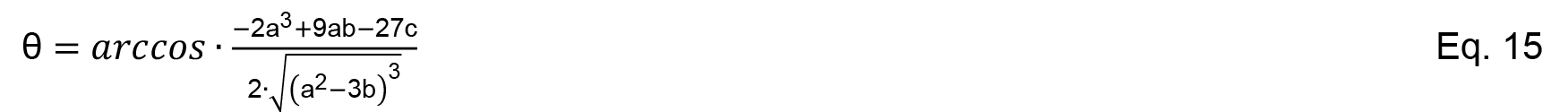

   with θ defined in Equation 15.



   Note: This analysis enables the calculation of K_a and K_b simultaneously. However, the dissociation constant for f-cAMP as determined in the direct binding assay can also be set as constant during the fitting process to reduce the number of free parameters.


Notes

In general, both assays, direct binding of a fluorescent ligand and competition between two ligands, are very robust. In our experience, the biggest variability comes from the content of bound cAMP after gel filtration as determined by the final A₂₆₀/A₂₈₀ ratio of the protein sample.

Recipes

1. Amphipol stock solution
   100 mg/ml A8-35 in ddH₂O (hydrated overnight at 4 °C)
2. 200 mM cAMP stock solution

   1. Dissolve 0.66 g of cAMP in 9.5 ml ddH₂O
   2. Adjust pH to 7.4, fill up to 10 ml and check the exact concentration of the stock solution by measuring the absorbance at 260 nm (the extinction coefficient of cAMP is ε₂₆₀ 14,600 M^-1 cm^-1)
   3. Store cAMP stock solution in 200 μl aliquots at -20 °C
3. Assay buffer
   20 mM HEPES, 100 mM KCl, pH 7.4, sterile filtered (0.22 μm)
