Materials and Reagents

Pipette tips
Petri dishes 60 x 15 mm 500/cs (Fisher Scientific, catalog number: FB0875713A )
Sterile 150 x 20 mm-culture tube (Sigma-Aldrich, catalog number: C1048 )
Sterile 150 x 16 mm-culture tube (Science Lab Supplies, catalog number: 6135-5-012 )
1.5 ml tube
Amicon Ultra 0.5 ml centrifugal filters MWCO 10 kDa (Sigma-Aldrich, catalog number: Z677108)
Manufacture: EMD Millipore, catalog number: UFC501096 .
Amicon Ultra centrifugal filter units Ultra-4, MWCO 30 kDa (Sigma-Aldrich, catalog number: Z648035)
Manufacture: EMD Millipore, catalog number: UFC803024 .
Cryovial (Simport, catalog number: T310-2A )
96-well solid plate (Colorimetric assay) (Cayman Chemical, catalog number: 400014 )
96-well cover sheet (Cayman Chemical, catalog number: 400012 )
Derivative of B. subtilis NCIB31610
Bacillus subtilis NCIB3610 and JH642 (Bacillus Genetic Stock Center, catalog numbers: 3A1 and 1A96 )
Sodium chloride (NaCl) (Sigma-Aldrich, catalog number: S7653 )
Bacto peptone (BD, Bacto^TM, catalog number: 211677 )
Nitrate/Nitrite Colorimetric Assay Kit (Cayman Chemical, catalog number: 780001 )
Nitrate/Nitrite assay buffer (Cayman Chemical, catalog number: 780022 )
Nitrate Reductase Enzyme Preparation (Cayman Chemical, catalog number: 780010 )
Nitrate Reductase Cofactor Preparation (Cayman Chemical, catalog number: 780012 )
Nitrate Standard (Cayman Chemical, catalog number: 780016 )
Griess Reagent R1 (Cayman Chemical, catalog number: 780018 )
Griess Reagent R2 (Cayman Chemical, catalog number: 780020 )
Luria Bertani broth (Sigma-Aldrich, catalog number: L3522 )
Luria Bertani broth with agar (Sigma-Aldrich, catalog number: L2897 )
Agar (Sigma-Aldrich, catalog number: A1296 )
Potassium phosphate dibasic (K₂HPO₄) (Sigma-Aldrich, catalog number: P2222 )
Potassium phosphate monobasic (KH₂PO₄) (Sigma-Aldrich, catalog number: P9791 )
MOPS (Sigma-Aldrich, catalog number: M9381 )
Magnesium sulfate heptahydrate (MgSO₄·7H₂O) (Sigma-Aldrich, catalog number: M1880 )
Calcium chloride dihydrate (CaCl₂·2H₂O) (Sigma-Aldrich, catalog number: C3881 )
Manganese(II) chloride (MnCl₂·2H₂O) (EMD Millipore, catalog number: 1059340100 )
Glycerol (Sigma-Aldrich, catalog number: G5516 )
Iron(III) chloride hexahydrate (FeCl₃·6H₂O) (Sigma-Aldrich, catalog number: 236489 )
Glutamate (Sigma-Aldrich, catalog number: 49621 )
Tryptophan (Sigma-Aldrich, catalog number: T0254 )
Phenylalanine (Sigma-Aldrich, catalog number: P2126 )
Chloramphenicol (Sigma-Aldrich, catalog number: C0378 )
100% ethanol (Sigma-Aldrich, catalog number: E7023 )
Cholesterol (Sigma-Aldrich, catalog number: C8667 )
Sodium phosphate dibasic (Na₂HPO₄) (Sigma-Aldrich, catalog number: S3264 )
Sodium phosphate monobasic (NaH₂PO₄) (Sigma-Aldrich, catalog number: S3139 )
Potassium chloride (KCl) (Sigma-Aldrich, catalog number: P9541 )
β-mercaptoethanol (Sigma-Aldrich, catalog number: M6250 )
Lysozyme from chicken egg white (Sigma-Aldrich, catalog number: L6876 )
Triton X-100 (Sigma-Aldrich, catalog number: X100 )
O-nitrophenyl-β-D-galactopyranoside (Sigma-Aldrich, catalog number: N1127 )
Sodium carbonate (Na₂CO₃) (Sigma-Aldrich, catalog number: 223484 )
10 N NaOH
Nematode growth medium (NGM) broth (see Recipes)
MSgg medium (see Recipes)
5 mg/ml chloramphenicol (see Recipes)
5 mg/ml cholesterol (see Recipes)
1 M MgSO₄ (see Recipes)
1 M CaCl₂ (see Recipes)
Phosphate buffer (see Recipes)
Z buffer (see Recipes)
10 mg/ml lysozyme solution (see Recipes)
10% Triton X-100 solution (see Recipes)
O-nitrophenyl-β-D-galactopyranoside (ONPG) 4.5 mg/ml (see Recipes)
1.2 M Na₂CO₃ (see Recipes)
50% glycerol (see Recipes)
100 mM MOPS pH = 7 (see Recipes)

Equipment

Erlenmeyer flask (Fisher Scientific, catalog number: FB5006000 )
Pipettor (Gilson, catalog number: F167300 )
Glass pipette
Refrigerated incubator (Thermo Fisher Scientific, Thermo Scientific^TM, catalog number: 51028064 ; Fisher Scientific, catalog number: 37-20 )
Note: The product “Fisher Scientific, catalog number: 37-20 ” has been discontinued.
Water bath (AQUA^® LYTIC incubator 37 °C)
Freezers (-20 °C; So-Low Environmental Equipment) (Siemens, model: So-Low Ultra C85-22 )
Autoclave (Tuttnauer, model: Model 6690 )
Stirring hotplate (Corning, catalog number: 6795-620 )
Centrifuge (Eppendorf, model: 5430 )
Tabletop centrifuge (Eppendorf, model: 5424 )
Molecular Dynamics Model SpectraMAX 340 PC microplate reader (Molecular Devices, model: SpectraMAX 340PC384 )

Procedure

Preparation of B. subtilis strains culture
1. Using sterile procedures, add 2 ml of sterile MSgg or NGM broth (see Recipes) in a sterile 150 x 20 mm-tube. Inoculate medium with 20 µl of a B. subtilis strains frozen culture (JH642 or NCIB3610) (see Note 3). For NGM broth’s preparation, mix 3 g NaCl and 2.5 g Bacto peptone in an Erlenmeyer flask. Add to 1 L of dH₂O. Autoclave at 121 °C for 20 min. Cool flask in 55 °C water bath for 15 min. Add 1 ml 1 M CaCl₂, 1 ml 5 mg/ml cholesterol in ethanol, 1 ml 1 M MgSO₄ and 25 ml 1 M KPO₄ buffer. Swirl to mix well.
2. Incubate for 16-18 h at 37 °C with shaking (overnight culture).
Preparation of B. subtilis strains culture supporting biofilm formation
1. Using sterile procedures, add 2 ml of sterile MSgg or NGM broth in a sterile 150 x 16 mm-tube. Inoculate medium with 20 µl of a B. subtilis strain overnight culture.
2. Incubate at 25 °C for 36 h with (planktonic condition) or without shaking (biofilm-supporting condition) (see Note 4).
Preparation of B. subtilis strains samples for NO determination (according to the kit’s instructions)
1. Take the tubes and disrupt the biofilm by vortexing until a homogenous suspension is obtained. Take a 100 µl aliquot for CFU (colony-forming units) counting (see Note 1).
2. Centrifuge at 12,470 x g for 20 min. Transfer the supernatant to a sterile 1.5 ml Eppendorf tube and discard pellet.
3. Ultrafilter using a 10 or 30 kDa molecular weight cut-off filter using a commercially available centrifuge. The filters should be pre-rinsed with ultrapure water prior ultrafiltration.
4. Wait for 3 h, the time required for the conversion of nitrate to nitrite.
Preparation of a standard curve (according to the kit’s instructions)
1. Standard curve for nitrate and nitrite must be included. If you plan to measure only total NO products (nitrate + nitrite), only the nitrate standard curve is required.
2. In a clean tube, place 0.9 ml of ‘Nitrate Assay Buffer’ from the kit. To this, add 0.1 ml of reconstituted ‘Nitrate Standard’ and vortex for 20 sec. The concentration of this stock standard is 200 µM.
3. Use this standard for the preparation of the nitrate standard curve as described below. The standard curve for nitrate is prepared by addition of reagents to the plate wells in the following way (Figure 1):

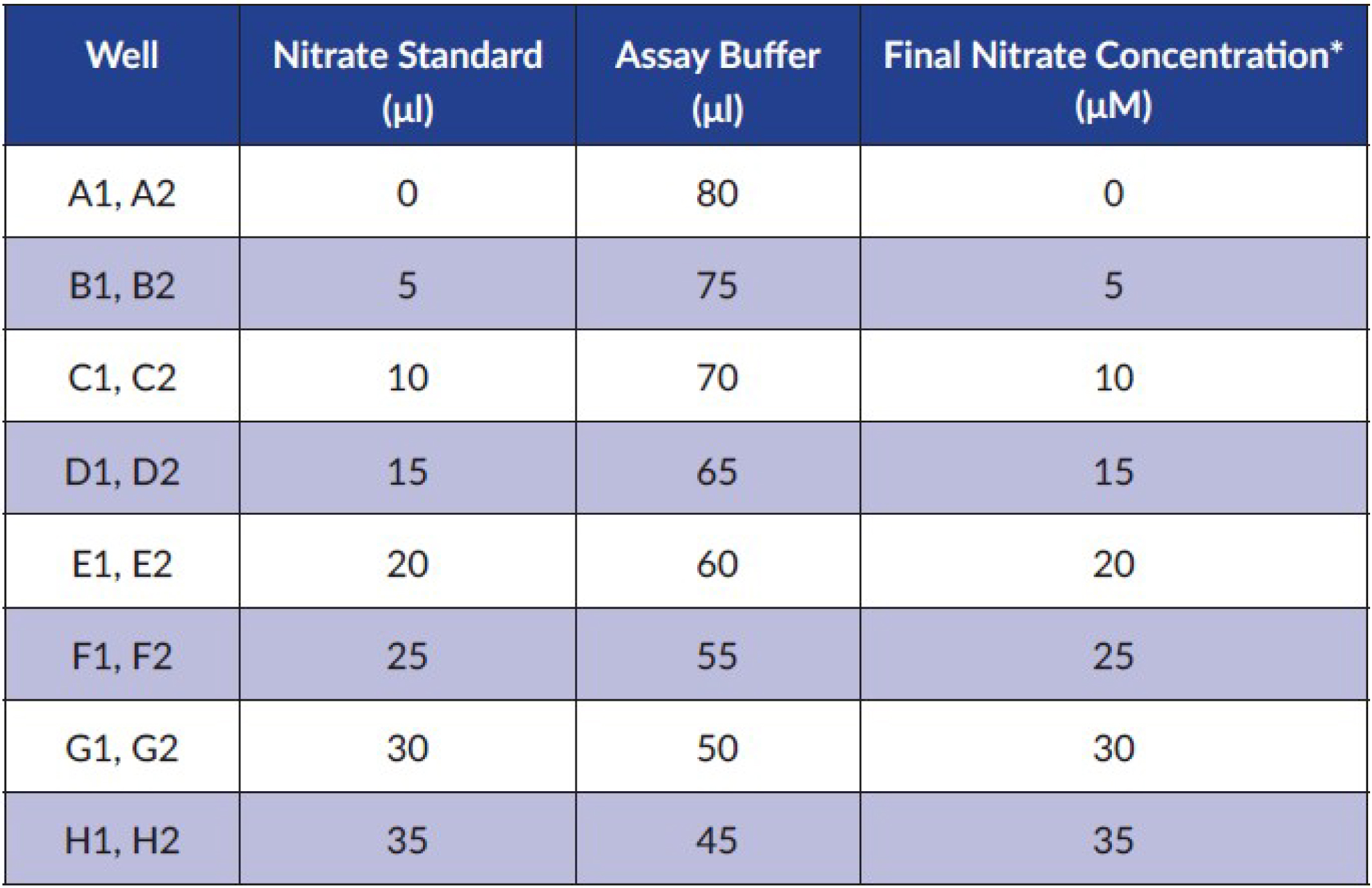

  Figure 1. Preparation of nitrate standard curve according to the kit’s instructions
Performing the assay (according to the kit’s instructions)
1. Add 200 µl of water or ‘Nitrate Assay Buffer’ to the blank wells. Do not add any other reagents to these wells.
2. Add up to 80 µl of sample to the wells in a pattern you choose. The final volume must be adjusted to 80 µl using the ‘Nitrate Assay Buffer’ solution.
3. Add 10 µl of the ‘Enzyme Cofactor Mixture’ to each of the wells (standards and unknown) (see Note 6).
4. Add 10 µl of the ‘Nitrate Reductase Mixture’ to each of the wells (standards and unknown).
5. Cover the plate with the plate cover and incubate at room temperature for 2 h. It is not necessary to shake the plate during incubation.
6. After incubation time, add 50 µl of the ‘Griess Reagent R1’ to each of the wells (standards and unknown) (see Note 7). Pipette up and down 2-3 times.
7. After incubation time, add 50 µl of the ‘Griess Reagent R2’ to each of the wells (standards and unknown) (see Note 7). Pipette up and down 2-3 times.
8. Allow the color to develop for 10 min at room temperature. It is not necessary to cover the plate.
9. Read the absorbance at 540 nm using a plate reader.
Calculations
1. Subtract the absorbance value of the blank wells from the absorbance values of all the other wells.
2. Make a plot of the absorbance at 540 nm as a function of nitrate concentration. The nitrate standard curve is used for determination of total nitrate + nitrite concentration. An example is shown in Figure 2.
3. Calculate NO concentration as follows: (Nitrate + Nitrite) (µM) = ([A₅₄₀ - y - intercept)/slope] x (200 µl/volume of sample used (µl)) x dilution
4. According to the CFU obtained in step C1, normalize NO (µM) to 1 x 10⁸ CFU.

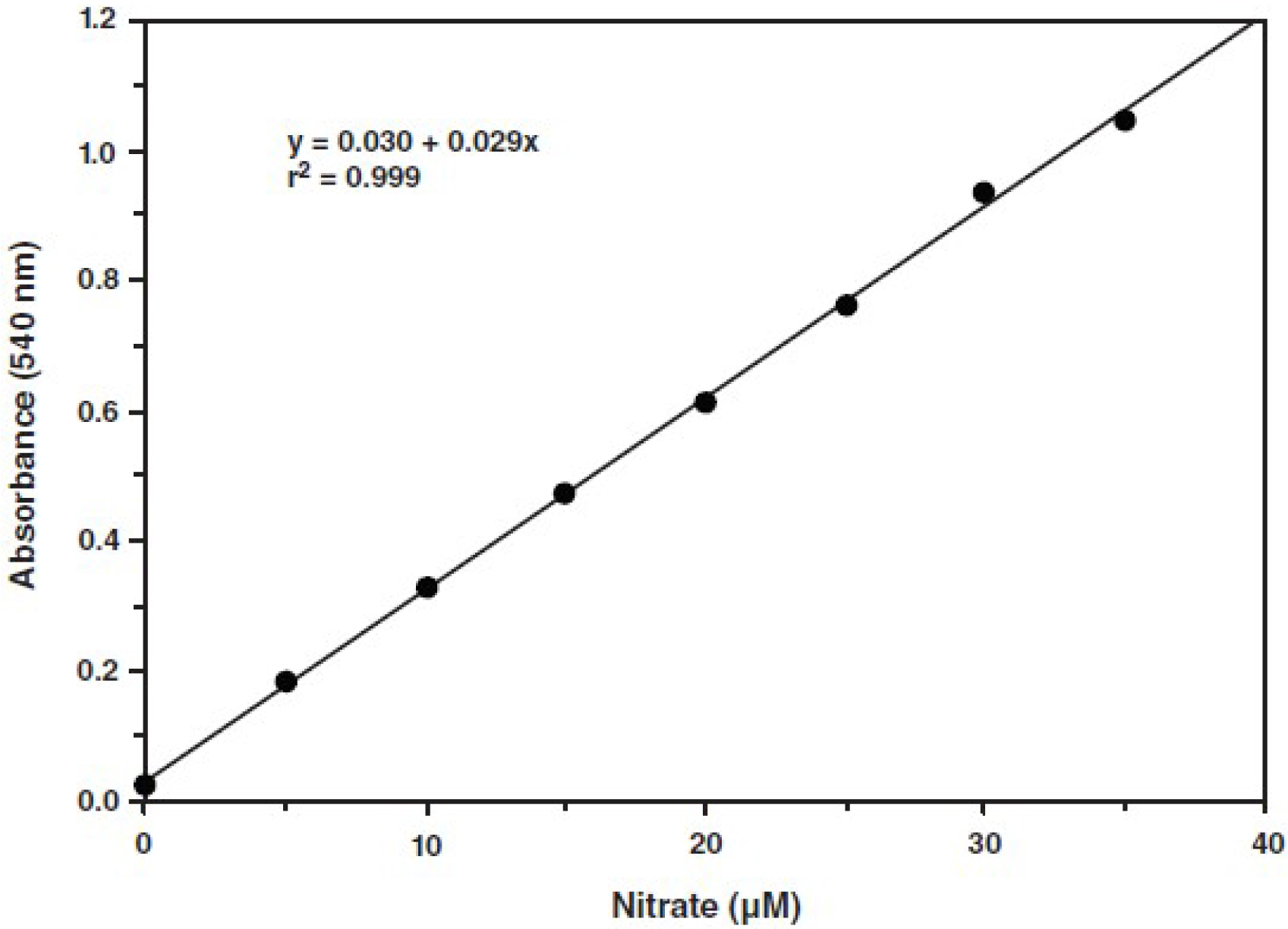

  Figure 2. A typical standard curve (according to the kit’s instructions)
Determination of β-galactosidase activity (Arabolaza et al., 2003) (see Note 5)
1. The bacterial strain used in this study is a derivative of B. subtilis NCIB31610 containing Pcsf-lacZ fusion integrated into the bacterial chromosome at the non-essential amyE locus.
2. Introduce 2 ml of MSgg or NGM broth aseptically into previously autoclaved 150 x 16 mm-culture tube and 2 µl of 5 mg/ml chloramphenicol.
3. Each tube is inoculated with 20 µl of an overnight culture; uninoculated tubes containing only MSgg or NGM broth serve as controls for cross-contamination.
4. The cultures are placed on a rotating shaker at 130 rpm (planktonic conditions) or without shaking (biofilm-supporting conditions) and incubated at 37 °C.
5. The tubes are incubated for at least 36 h. To determine the culture density, take the tubes and disrupt the biofilm by vortexing until a homogenous suspension is obtained. Take a 100 µl aliquot for CFU counting (see Note 1). The A₅₂₅ of the diluted culture (1/10 dilution) is determined using a Molecular Dynamics Model SpectraMAX 340PC microplate reader. As discussed below, dilution of the culture is required because cell density is not proportional to A₅₂₅ when the values are above 0.8-1.
6. Two aliquots of 1 ml from the disrupted culture are arrested by the addition of 2 µl of 5 mg/ml chloramphenicol (see Recipes) using a repeater pipettor and the tubes are placed on ice. Then, centrifuge the 1.5 ml Eppendorf tubes, for 5 min at 4 °C at 12,470 x g. Supernatants are removed and pellets are either frozen at -20 °C or assayed immediately (see Note 2) (Figure 3).

  Figure 3. Flowchart image showing the basic steps of culturing bacteria in planktonic or biofilm-supporting conditions and samples collection
7. For cell permeabilization, 0.73 ml of Z buffer (see Recipes) is dispensed into the pellet.
8. A reagent blank containing 0.73 ml of Z buffer is run with the unknowns.
9. Add 10 µl of 10 mg/ml fresh lysozyme solution (see Recipes) to the tubes and incubate for 15 min in a 37 °C water bath.
10. Transfer the tubes to bench and add 10 µl of 10% Triton X-100 (see Recipes). Permeabilization is accomplished by aspirating and dispensing the mixtures 10 times.
11. Immediately after permeabilization, at zero time, the assay is initiated by adding 100 µl of 4.5 mg/ml ONPG (see Recipes) to each tube. In the end of the assay, the tubes are incubated at 28 °C for the appropriate length of time, e.g., 15 min, before the reaction is terminated by the addition of 150 µl of 1.2 M Na₂CO₃ to each tube (see Recipes).
12. Then, the tubes’ content is transferred to a microplate, which is introduced into the plate reader and the A₄₂₀ values are determined.
13. Calculation of β-galactosidase activity expressed as Miller units (M.U.) is performed as follows:

  M.U. = (OD₄₂₀ x 66.7)/(OD₅₂₅ x ml used)

  where,
  OD₄₂₀ is the optical density of β-gal assay,
  OD₅₂₅ is the optical density of the bacterial culture,
  66.7 is a correction factor,
  ml used is the volume of Z buffer used to resuspend the bacterial pellet (in this case 0.73 ml).
14. According to the UFC obtained in step C1, normalize β-gal (M.U.) to 1 x 10⁸ UFC.

Data analysis

The absorbance data for A₄₂₀ and A₅₂₅ are transferred to a Microsoft Excel spreadsheet and β-galactosidase specific activities in Miller units are calculated.
Each assay should be repeated at least three times for quadruplicate.
Use the Student’s t-test with a significance cut-off level of P < 0.05 for comparisons between two groups.
Use the one-factor (ANOVA) variance analysis and correct by the post hoc Bonferroni test for multiple comparisons.

Notes

For the LB plates used to seed Bacillus subtilis, we strongly recommend drying plates at 45 °C for 20 min or 37 °C for 40 min upside down before to drop the dilutions onto each plate to avoid the sliding movement of this bacterium in solid surface with water drops from condensation.
Samples should be used immediately or store for 1 month at -20 °C.
Bacteria on an LB agar plate can be stored at 4 °C for a few weeks. However, for long-term storage, it is recommended to make glycerol stocks. The addition of glycerol stabilizes the frozen bacteria, preventing damage to the cell membranes and keeping the cells alive. A glycerol stock of bacteria can be stored stably at -80 °C for many years. For this, prepare an overnight bacteria culture, add 500 μl of the overnight culture to 500 μl of 50% glycerol (see Recipes) in a 2 ml cryovial and gently mix. Freeze the glycerol stock tube at -80 °C. The stock is now stable for years, as long as it is kept at -80 °C. Subsequent freeze and thaw cycles will reduce shelf life. To recover bacteria from your glycerol stock, open the tube and use a sterile loop or pipette tip to scrape some of the frozen bacteria off of the top. Do not let the glycerol stock thaw. Always keep your glycerol stock on ice while procedure is carried out. Streak the bacteria onto an LB agar plate. Grow Bacillus subtilis overnight at 37 °C.
For incubation in planktonic condition, tubes inoculated with the bacterial overnight culture should keep in a 45° position with shaking at 130 rpm. For incubation in a biofilm-supporting condition, tubes inoculated with the bacterial overnight culture should keep in a vertical position without shaking.
The parameters have been worked out with Bacillus subtilis and results obtained with other bacteria may not be accurate.
The ‘Nitrate Reductase Cofactor Mixture’ is light-sensitive. Protect from light. Keep on ice during use. Store at -20 °C when not in use.
The ‘Griess Reagent R1’ and ‘Griess Reagent R2’ are light-sensitive. Protect from light, especially sunlight. Store at 4 °C when not in use.

Recipes

Nematode growth medium (NGM) broth

Dissolve 3 g NaCl and 2.5 g Bacto peptone to 1 L of dH₂O
Autoclave
Store at room temperature

MSgg medium

Dissolve 17.4 g K₂HPO₄, 13.6 g KH₂PO₄, 20.9 g MOPS, 18.3 g MgSO₄ heptahydrate, 11 g CaCl₂ dihydrate, 3.1 g MnCl₂ dihydrate, 40.2 ml glycerol, 0.6 g FeCl₃ hexahydrate, 20 g glutamate, 1 g tryptophan, 1 g phenylalanine to 100 ml of dH₂O
Autoclave
Store at room temperature

5 mg/ml chloramphenicol

Dissolve 0.05 g chloramphenicol to 10 ml of 100% ethanol
Store at 4 °C

5 mg/ml cholesterol

Dissolve 0.25 g of cholesterol in 50 ml of 100% ethanol
Do not autoclave
Store at room temperature

1 M MgSO₄

Dissolve 6 g MgSO₄heptahydrate in 50 ml of dH₂O
Autoclave
Store at room temperature

1 M CaCl₂

Dissolve 5.55 g CaCl₂ dihydrate in 50 ml of dH₂O
Autoclave
Store at room temperature

Phosphate buffer

Dissolve 10.7 g K₂HPO₄ and 32.5 g KH₂PO₄ to 300 ml of dH₂O
Adjust pH to 6.0
Autoclave
Store at room temperature

Z buffer

Dissolve 2.55 g Na₂HPO₄, 1.44 g NaH₂PO₄, 0.22 g KCl, 0.074 MgSO₄ heptahydrate and 1,050 µl β-mercaptoethanol to 300 ml of dH₂O
Store at room temperature

10 mg/ml lysozyme solution

Dissolve 10 mg lysozyme to 1 ml of dH₂O
Store at 4 °C

10% Triton X-100 solution

Dissolve 1 ml Triton X-100 to 10 ml of dH₂O
Store at room temperature

O-nitrophenyl-β-D-galactopyranoside (ONPG) 4.5 mg/ml

Dissolve 0.225 g ONPG to 50 ml of dH₂O
Store at -20 °C. Use until a yellow colour develops

1.2 M Na₂CO₃

Dissolve 6.36 g Na₂CO₃ to 50 ml of dH₂O
Store at 4 °C

50% glycerol

Dissolve 25 ml 100% glycerol to 25 ml of dH₂O
Autoclave
Store at room temperature

100 mM MOPS pH = 7

Dissolve 20.93 g MOPS in 80 ml of dH₂O
Adjust the pH to the desired value with 10 N NaOH
Bring up the volume to 100 ml with dH₂O
Sterilize by filtration
