Fluorophore Labeling, Nanodisc Reconstitution and Single-molecule Observation of a G Protein-coupled Receptor

Materials and Reagents

1. PD-10 desalting column (GE Healthcare, catalog number: 17085101 )

2. 2 ml Eppendorf tube

3. Quartz microscope slides 1” x 3” x 1 mm thick, with a small diameter hole drilled at each end (http://finkenbeiner.com/quartzslides.php)

4. Microscope cover slips 22 x 40-1 (Fisher Scientific, catalog number: 12-545-C )

5. Double sided tape (Scotch, 3M)

6. Pipette tip

7. 100 kDa MWCO vivaspin 2 concentrators polyethersulfon (PES) membrane (Sartorius, catalog number: VS1041 )

8. Cy3 maleimide, mono-reactive dye (GE Healthcare, catalog number: PA13131 )

9. Timolol maleate salt (Sigma-Aldrich, catalog number: T6394 )

10. cOmplete^TM, Mini, EDTA-free protease inhibitor cocktail (Roche Diagnostics)

11. Sodium chloride (NaCl) (Sigma-Aldrich, catalog number: S9888 )

12. Talon metal affinity resin (Takara Bio, catalog number: 635502 )

13. Imidazole (Sigma-Aldrich, catalog number: I5513 )

14. DMSO (Thermo Fisher Scientific, Invitrogen^TM, catalog number: D12345 )

15. SDS-PAGE gels (Invitrogen NuPAGE Bis-Tris Pre-cast gels)

16. Purified membrane scaffold protein 1 (MSP1), expressed in E. coli, as described (Ritchie et al., 2009)

17. 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) (Avanti Lipids Polar, catalog number: 850457P )

18. 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-L-serine (POPS) (Avanti Lipids Polar, catalog number: 840034P )

19. 16:0 biotinyl Cap PE (Avanti Lipids Polar, catalog number: 870277P )

20. Bio-beads SM-2 resin (Bio-Rad Laboratories, catalog number: 1523920 )

21. Ni-NTA resin (Thermo Fisher Scientific, Thermo Scientific^TM, catalog number: 88222 )

22. Glycerol (Sigma-Aldrich, catalog number: G6279 )

23. Grease (Borer Chemie, catalog number: glisseal N )

24. Neutravidin (Thermo Fisher Scientific, Thermo Scientific^TM, catalog number: 31000 )

25. 4-(2-hydroyethyl)-1-piperazineethanesulfonic acid (HEPES) (Sigma-Aldrich, catalog number: H3375 )

26. Magnesium chloride (MgCl₂) (anhydrous) (Sigma-Aldrich, catalog number: M8266 )

27. Potassium chloride (KCl) (Sigma-Aldrich, catalog number: P9541 )

28. Ethylenediaminetetraacetic acid (EDTA) (0.5 M solution) (Sigma-Aldrich, catalog number: 03690 )

29. N-dodecyl- β-D-maltopyranoside (DDM) (Anatrace, catalog number: D310 )

30. Cholesteryl hemisuccinate (CHS) (Sigma-Aldrich, catalog number: C6512 )

31. ATP (Sigma-Aldrich, catalog number: A26209 )

32. Phosphate-buffered saline (PBS) (Fisher Scientific, catalog number: 70-011-044 )

33. Trolox (Acros Organics, catalog number: 218940050 )

34. Glucose (Sigma-Aldrich, catalog number: 158968 )

35. Glucose oxidase (Sigma-Aldrich, catalog number: G2133 )

36. Catalase (Sigma-Aldrich, catalog number: C3155 )

37. Low salt wash buffer (see Recipe)

38. High salt wash buffer (see Recipe)

39. Solubilization buffer (see Recipe)

40. Wash buffer 1 (see Recipe)

41. Wash buffer 2 (see Recipe)

42. Labeling buffer (see Recipe)

43. SEC elution buffer (see Recipe)

44. IMAC elution buffer (see Recipe)

45. Final buffer (see Recipe)

46. Imaging buffer (see Recipe)


Equipment

1. 100 ml glass tissue homogenizer (Sigma-Aldrich, catalog number: T2567 )

2. Beckman Ultra centrifuge

3. Ti45 rotor (Beckman Coulter, model: Type 45 Ti , catalog number: 339160)

4. Ti70 rotor (Beckman Coulter, model: Type 70 Ti , catalog number: 337922)

5. Beckman X-12R centrifuge(Beckman Coulter, model: Allegra^® X-12R ) or equivalent

6. AKTAxpress FPLC system (GE Healthcare, model: AKTAxpress )

7. Superdex 200 Increase 100/300 size exclusion column (GE Healthcare, catalog number: 17517501 )

8. Chromatography column packed with 1-2 ml Ni-NTA agarose beads (referred to below as Ni column)

9. Axiovert 200 microscope (Carl Zeiss, model: Axiovert 200 ) or equivalent

10. Water-immersion C-Apochromat 63x/1.2 W objective (Carl Zeiss, model: C-Apochromat 63x/1.2 W Corr ) or equivalent

11. Charge-coupled device (EMCCD) camera (Andor Technology, model: DU-897E iXon+ EMCCD ) or equivalent

12. 532 nm (green) laser (CrystaLaser, catalog number: CL532-050-S ) or equivalent


Software

1. Data acquisition software (available from https://cplc.illinois.edu/software/)

2. MATLAB scripts

3. Igor software

Procedure

The protocols described here were developed for a beta 2 adrenergic receptor (β₂AR) construct containing a thermo-stabilizing E122W mutation (Roth et al., 2008), C-terminal truncation at residue 348, deletion of residues 245 to 259 in the third intracellular loop (ICL3), a FLAG tag at the N-terminus and a 10x His tag at the C-terminus. The construct also contains C327S and C341S mutations, leaving just a single reactive cysteine residue (Cys265) for fluorophore labeling. The deletions, truncations and cysteine mutations do not disrupt binding of ligands to the receptor (Liu et al., 2012). The procedures to express the receptor in sf9 insect cells infected with high-titer recombinant virus are described elsewhere (Cherezov et al., 2008).

1. Receptor purification and Cy3 labeling
   1. Lyse and wash frozen β₂AR biomass (5 L, roughly 0.5 mg receptor/1 L biomass) using a 100 ml glass tissue homogenizer. Cell lysis is chiefly achieved through the use of hypertonic (low salt) buffer and the mechanical force of homogenization. Wash lysed biomass with the low salt wash buffer and the high salt wash buffer 3 times, respectively (500 ml per wash). Use Beckman Ultra centrifuge to pellet membrane fragment suspension (158,000 x g, Ti45 rotor, 35 min, 4 °C) in between washes. The washed membranes can be stored at -80 °C for up to two weeks or 4 °C overnight. Ideally, the washed membrane should be aliquoted, so that each aliquot of membranes contains roughly 0.5-1 mg of final purified receptor.

   2. Treat one aliquot of washed membrane with 1 mM timolol (dissolved in ddH₂O), 1 crushed Roche protease inhibitor tablet for 30 min at 4 °C. This step can be done by adding a previously prepared 100 mM timolol stock (stored at 4 °C) and crushed Roche inhibitor directly to the suspended membrane. Then, thoroughly mix the treated membrane with the solubilization buffer at 1:1 ratio for 3 h at 4 °C.

   3. Remove membrane pellet from supernatant using Beckman Ultra centrifuge (rotor Ti70) at 265,000 x g, 35 min, 4 °C. Add stock 5 M NaCl, 4 M imidazole to the supernatant, so that the final concentration is 800 mM NaCl, 20 mM imidazole. Add 0.5 ml washed talon slurry to the supernatant and incubate at 4 °C overnight.

   4. Pellet talon resin using Beckman X-12R centrifuge (or equivalent) at 500 x g, 1 min, 4 °C and remove supernatant. Wash with 50 ml wash buffer 1, 10 ml wash buffer 2, 10 ml labeling buffer. Add 5 ml labeling buffer on top of the pelleted resin, and 20 μl of 5 mg/ml (in DMSO) Cy3 stock (approximately 25 μM final concentration, whereas the receptor concentration is approximately 1-5 μM). Incubate at 4 °C for 2 h in the dark.

   5. Load talon resin onto an empty column and wash with 50 ml wash buffer 2 using gravity flow. Elute purified, labeled receptor using 1 ml fractions of elution buffer. Run SDS-PAGE to visualize the elution pattern. Concentrate Cy3-labeled receptors using a 100 kDa MWCO vivaspin2 concentrator.


2. Nanodisc preparation

   1. Mix labeled receptor, purified MSP1 and phospholipid mixture at a molar ratio 1:10:700 in a 2 ml Eppendorf tube. The phospholipid mixture contains POPC, POPS and biotinyl Cap PE in the ratio 67.5%, 27.5%, and 5%. Add Bio-Bead resin and incubate overnight at 4 °C.

   2. Remove Bio-Bead resin by pelleting. Purify nanodiscs by size exclusion chromatography using an AKTAxpress FPLC system, superdex 200 Increase 100/300 GL column and SEC elution buffer. Representative elution profiles of membrane protein-nanodisc complexes are presented elsewhere (Ritchie et al., 2009). Remove empty nanodiscs by immobilized metal affinity chromatography (IMAC) using an AKTAxpress FPLC system, Ni column and IMAC elution buffer. Exchange buffer to the final buffer using a PD-10 desalting column (GE Healthcare).
      Note: Ni-NTA and talon (Co²⁺) resins are both used to purify the receptor protein with poly-histidine tag, but differ in that 1) Ni²⁺ has greater affinity for histidine, conferring a larger binding capacity per ml of resin, whereas 2) Co²⁺ has greater selectivity toward histidine. As such talon resins are preferable to be used on crude lysate, as described in step A3 above, whereas Ni-NTA is preferable for the final purification step described here.


3. Surface immobilization of receptor-nanodisc complexes

   1. Clean quartz slides and cover slips, passivate the surfaces with polyethylene glycol (5% biotinylated), as described previously (Lamichhane et al., 2010).

   2. Prepare a microfluidic channel about 4-5 mm wide on the quartz slide using double sided tape, fix cover slip on top of the double sided tape and close the two ends of channel using silicon grease at the time of experiment (Figure 2). This device is subsequently referred to as the sample chamber.

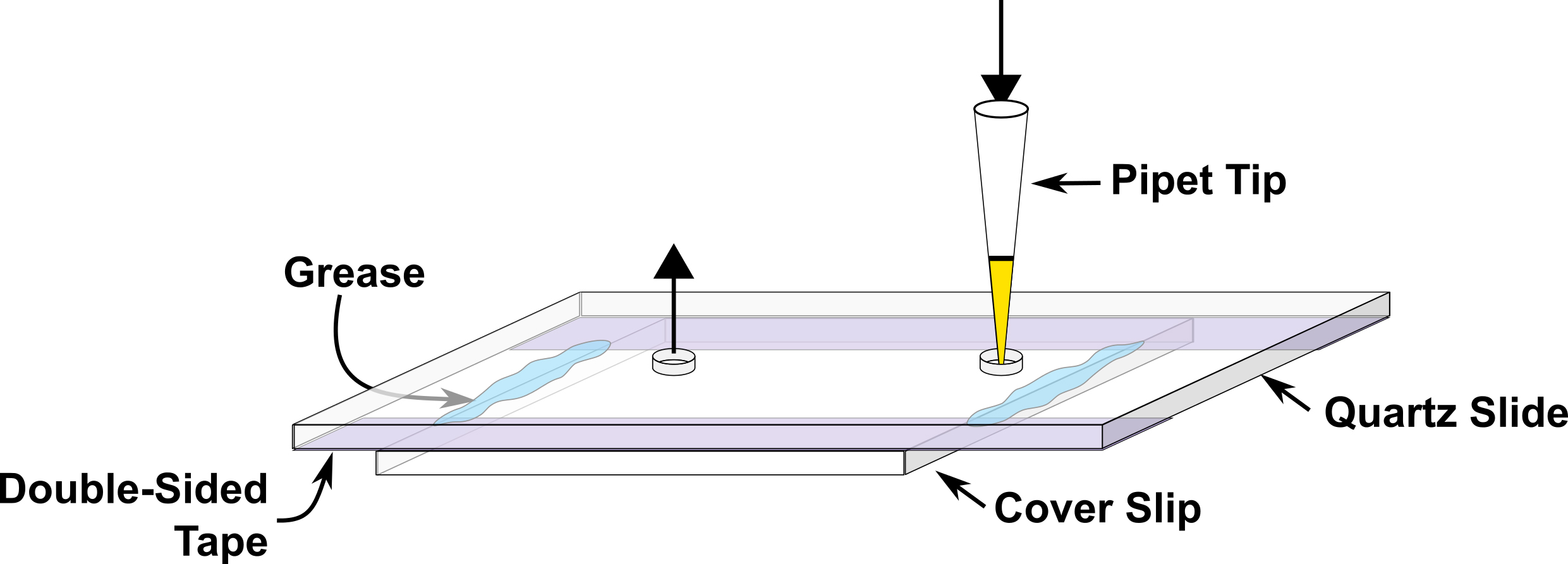

      Figure 2. Illustration of the microfluidic sample chamber. Buffers or sample solutions are introduced through the entrance port via a pipette tip, as shown. Any excess solution flows out of the exit port, as shown.


   3. Fill the sample chamber with 0.2 mg/ml neutravidin and incubate for five minutes followed by final buffer wash.

   4. Fill the sample chamber with 100 μl of receptor-nanodisc complexes (approximately 1 nM concentration), incubate for 10 min to allow complexes (containing 5% biotinylated lipids) to bind to neutravidin on the surface, then flush the chamber with imaging buffer.


4. Single-molecule fluorescence data acquisition

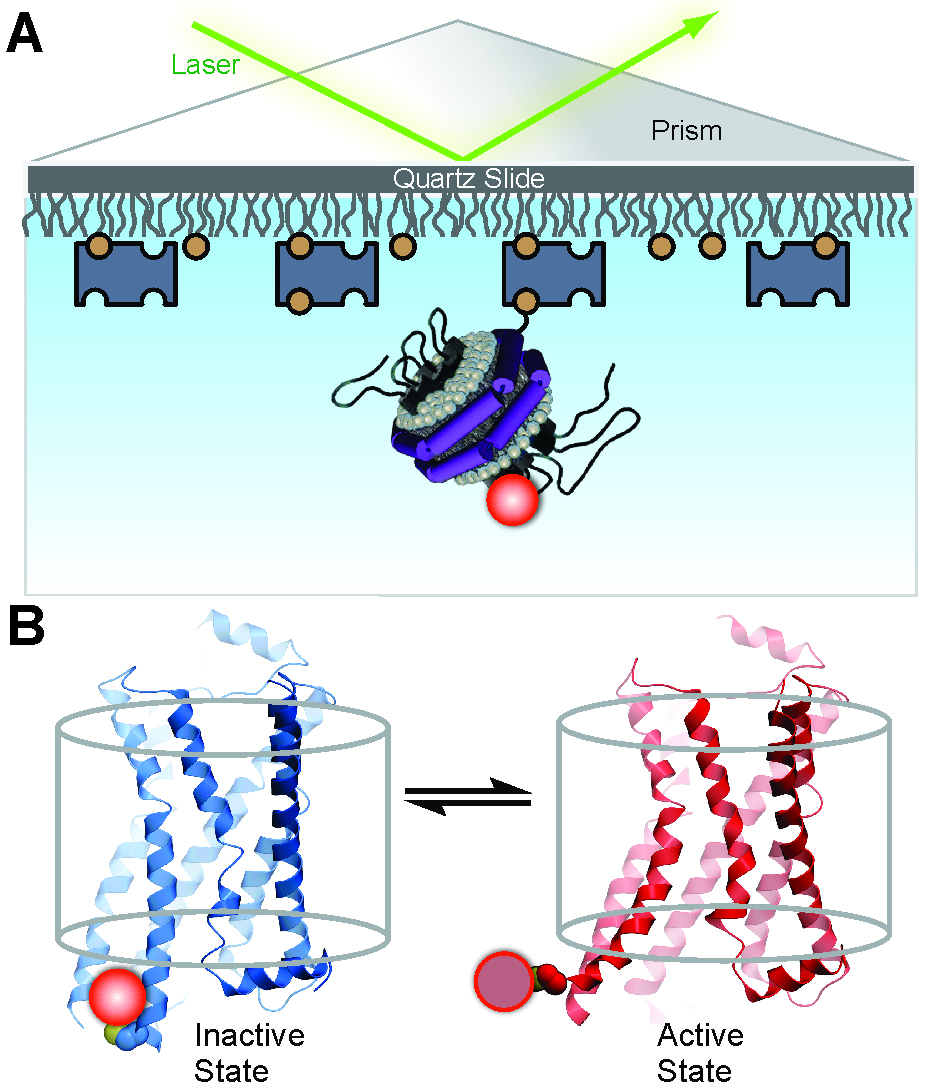

   1. A microscope capable of total internal reflection fluorescence (TIRF) measurements, equipped with a 532 nm (green) laser for excitation (prism-based or objective-based illumination) and an intensified charge coupled device (CCD) camera capable of detecting the fluorescence emission from single fluorophores (Berezhna et al., 2012) is used to record a TIRF image of the surface at regular time intervals (e.g., every 100 msec or shorter, depending on the frame time of the CCD camera) for a total period of at least 100 sec. Many discrete fluorescent spots should be visible in the image, each representing individual receptor-nanodisc complexes (Figure 3A).

   2. Add a ligand, such as the agonist formoterol or inverse agonist ICI 118,551 (1 mM), to the sample chamber, allow ligand to interact with receptor (30 min to 1 h) and repeat the data acquisition. Alternatively, prepare a new sample chamber containing a pre-incubated mixture of receptor-nanodisc complexes and ligand.

   3. As a control to test for non-specific binding, add receptor-nanodisc complexes to a surface lacking neutravidin. Very few fluorescent spots should be visible on the surface (Figure 3B).

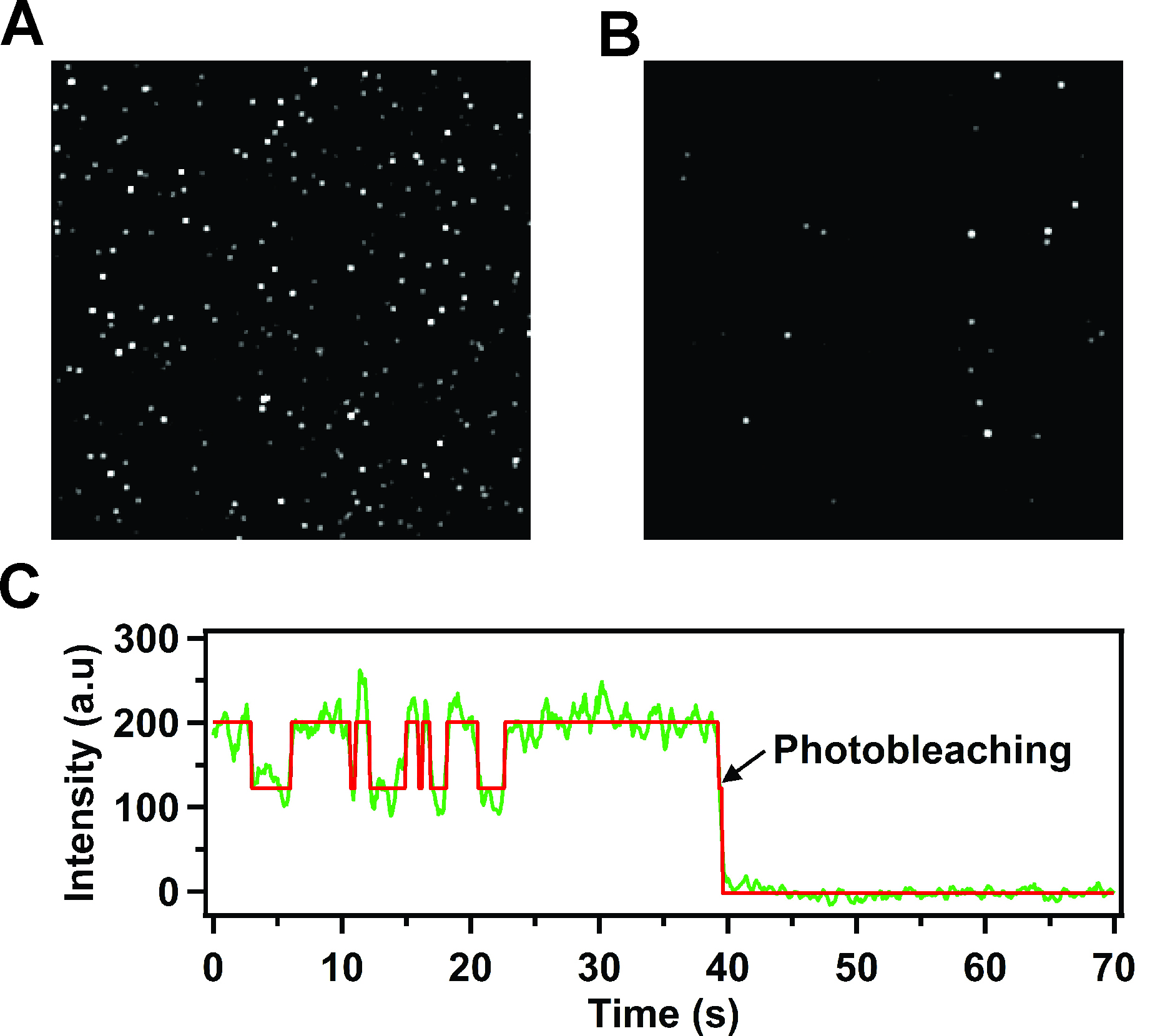

      Figure 3. TIRF images of immobilized receptor-nanodisc complexes and representative time trace for a single receptor-nanodisc complex (reproduced from Lamichhane et al., 2015). A. Typical TIRF image showing a 5 x 5 μm region (approximate dimensions) of immobilized Cy3-labeled β₂AR reconstituted in nanodiscs. Each spot is due to the fluorescence emitted from an individual receptor-nanodisc complex. The very bright spots are due to a small fraction of receptor-nanodisc aggregates, which are readily identified and excluded from the data analysis. B. Corresponding TIRF image for a control surface lacking neutravidin. The number of fluorescent spots is greatly reduced relative to part A, indicating a negligible level of non-specific adsorption of receptor-nanodisc complexes. C. Representative fluorescence intensity versus time trace from a single nanodisc-bound receptor, showing repeated two-state intensity jumps prior to an irreversible photobleaching event. The red line is the best fit from Hidden Markov modeling. The single-step photobleaching transition confirms that a single receptor molecule is contained within the nanodisc.


Data analysis

1. Use data acquisition software (available from https://cplc.illinois.edu/software/) to acquire the emission intensity of each identified spot on the surface at each time point.

2. Filter the data to reject spots that: (a) show very high emission intensity, indicative of receptor-nanodisc aggregates, or (b) show photoblinking transitions (emission intensity transiently samples a zero-intensity state). For subsequent analysis, select time traces that show a single-step photobleaching transition, indicative of a single receptor molecule (Figure 3B).

3. For each selected time trace, establish the background intensity level after the single photobleaching transition. Correct the intensity at all preceding time points accordingly. Steps 2 and 3 (Data analysis) can be automated using suitable MATLAB scripts.

4. The majority of selected time traces should show reversible transitions between two distinct intensity levels (Figure 3C). Using at least 100 traces, construct binned intensity histograms representing the intensity states sampled in the entire collection (using Igor software). The histograms typically reveal two distinct peaks. Fit the histograms with two Gaussian functions to identify the centers and relative areas of each peak (using Igor or Origin software).

5. Repeat this analysis for the data obtained in the presence of agonist or inverse agonist ligands. The intensity peak representing the active state of the receptor will be enhanced in the presence of agonist, while the peak representing the inactive state will be enhanced in the presence of inverse agonist, thereby establishing the identities of the two peaks. The peak areas report the equilibrium distribution of inactive and active conformational states of the receptor.

6. Fit each selected intensity trace using Hidden Markov analysis (McKinney et al., 2006) to determine the dwell times spent in each state prior to transition to the other (example of fit shown in Figure 3C). Construct histograms of the dwell times for each state from the entire collection of complexes. Fit the histograms with single-exponential decay functions to determine rate constants for the activation or deactivation transitions (using Igor software). If the single-exponential fits are poor, based on the reduced chi-square value, refit the histograms with bi-exponential functions (Lamichhane et al., 2015).

Recipes

1. Low salt wash buffer
   10 mM HEPES, pH = 7.5, 20 °C
   10 mM MgCl₂
   20 mM KCl
   2 mM EDTA

2. High salt wash buffer
   10 mM HEPES, pH = 7.5, 20 °C
   10 mM MgCl₂
   20 mM KCl
   1 M NaCl

3. Solubilization buffer
   100 mM HEPES, pH = 7.5, 20 °C
   300 mM NaCl
   1% (w/v) DDM, 0.2% CHS (w/v)

4. Wash buffer 1
   50 mM HEPES, pH = 7.5, 20 °C
   800 mM NaCl
   10 mM MgCl₂
   20 mM imidazole
   0.05% (w/v) DDM, 0.01% (w/v) CHS
   8 mM ATP

5. Wash buffer 2
   50 mM HEPES, pH = 7.5, 20 °C
   150 mM NaCl
   20 mM imidazole
   0.05% (w/v) DDM, 0.01% (w/v) CHS

6. Labeling buffer
   50 mM HEPES, pH = 7.5, 20 °C
   150 mM NaCl
   0.05% (w/v) DDM, 0.01% (w/v) CHS
   GPCR ligand

7. SEC elution buffer
   50 mM PBS, pH = 7.4, 20 °C

8. IMAC elution buffer
   50 mM HEPES, pH = 7.5, 20 °C
   150 mM NaCl
   200 mM imidazole
   0.05% (w/v) DDM, 0.01% (w/v) CHS

9. Final buffer
   50 mM HEPES, pH = 7.5, 20 °C
   150 mM NaCl

10. Imaging buffer (final buffer plus oxygen scavenging system)
    50 mM HEPES, pH = 7.5, 20 °C
    150 mM NaCl
    2 mM trolox
    2-5% (w/v) glucose
    50 µg/ml glucose oxidase
    10 µg/ml catalase


Acknowledgments

This work was supported by the Roadmap Initiative grant P50 GM073197 from the National Institutes of Health. The protocol described here is adapted from the work of Lamichhane et al. (2015).

References

1. Baker, J. G. (2010). The selectivity of beta-adrenoceptor agonists at human β₁-, β₂- and β₃-adrenoceptors. Br J Pharmacol 160(5): 1048-1061.

2. Bayburt, T. H. and Sligar, S. G. (2010). Membrane protein assembly into Nanodiscs. FEBS Lett 584(9): 1721-1727.

3. Berezhna, S. Y., Gill, J. P., Lamichhane, R. and Millar, D. P. (2012). Single-molecule Forster resonance energy transfer reveals an innate fidelity checkpoint in DNA polymerase I. J Am Chem Soc 134(27): 11261-11268.

4. Cherezov, V., Liu, J., Griffith, M., Hanson, M. A. and Stevens, R. C. (2008). LCP-FRAP assay for pre-screening membrane proteins for in meso crystallization. Cryst Growth Des 8(12): 4307-4315.

5. Cherezov, V., Rosenbaum, D. M., Hanson, M. A., Rasmussen, S. G., Thian, F. S., Kobilka, T. S., Choi, H. J., Kuhn, P., Weis, W. I., Kobilka, B. K. and Stevens, R. C. (2007). High-resolution crystal structure of an engineered human β₂-adrenergic G protein-coupled receptor. Science 318(5854): 1258-1265.

6. Hwang, H., Kim, H. and Myong, S. (2011). Protein induced fluorescence enhancement as a single molecule assay with short distance sensitivity. Proc Natl Acad Sci U S A 108(18): 7414-7418.

7. Lamichhane, R., Liu, J. J., Pljevaljcic, G., White, K. L., van der Schans, E., Katritch, V., Stevens, R. C., Wuthrich, K. and Millar, D. P. (2015). Single-molecule view of basal activity and activation mechanisms of the G protein-coupled receptor β₂AR. Proc Natl Acad Sci U S A 112(46): 14254-14259.

8. Lamichhane, R., Solem, A., Black, W. and Rueda, D. (2010). Single-molecule FRET of protein-nucleic acid and protein-protein complexes: surface passivation and immobilization. Methods 52(2): 192-200.

9. Liu, J. J., Horst, R., Katritch, V., Stevens, R. C. and Wuthrich, K. (2012). Biased signaling pathways in β₂-adrenergic receptor characterized by 19F-NMR. Science 335(6072): 1106-1110.

10. McKinney, S. A., Joo, C. and Ha, T. (2006). Analysis of single-molecule FRET trajectories using hidden Markov modeling. Biophys J 91(5): 1941-1951.

11. Rasmussen, S. G., Choi, H. J., Fung, J. J., Pardon, E., Casarosa, P., Chae, P. S., Devree, B. T., Rosenbaum, D. M., Thian, F. S., Kobilka, T. S., Schnapp, A., Konetzki, I., Sunahara, R. K., Gellman, S. H., Pautsch, A., Steyaert, J., Weis, W. I. and Kobilka, B. K. (2011). Structure of a nanobody-stabilized active state of the β₂ adrenoceptor. Nature 469(7329): 175-180.

12. Ritchie, T. K., Grinkova, Y. V., Bayburt, T. H., Denisov, I. G., Zolnerciks, J. K., Atkins, W. M. and Sligar, S. G. (2009). Chapter 11 - Reconstitution of membrane proteins in phospholipid bilayer nanodiscs. Methods Enzymol 464: 211-231.

13. Roth, C. B., Hanson, M. A. and Stevens, R. C. (2008). Stabilization of the human β₂-adrenergic receptor TM4-TM3-TM5 helix interface by mutagenesis of Glu122(3.41), a critical residue in GPCR structure. J Mol Biol 376(5): 1305-1319.

14. Stennett, E. M., Ciuba, M. A., Lin, S. and Levitus, M. (2015). Demystifying PIFE: The photophysics behind the protein-induced fluorescence enhancement phenomenon in Cy3. J Phys Chem Lett 6(10): 1819-1823.
