Abstract

Legionella possesses a pivotal secretion machinery to deliver virulence factors to eukaryotic host cells. In this protocol, we describe the procedure for isolation of the native core complex of the Dot/Icm type IV secretion system from L. pneumophila aiming to perform biochemical and transmission electron microscopy analyses.

Keywords: Legionella, Type IV secretion, Core complex, Isolation, Electron microscopy, Bacteria, Nanomachine, Structure

Background

Legionella pneumophila is a Gram-negative bacterial pathogen that causes lung infection known as Legionnaires’ disease (Fields et al., 2002). L. pneumophila utilizes a type IV secretion system (T4SS) encoded by the dot/icm genes to transport about 300 bacterial proteins into the cytosol of their eukaryotic host to hijack cellular processes (Hubber and Roy, 2010). Composed of more than 20 proteins, the T4SS is a nanomachine built on the bacterial inner and outer membranes (Nagai and Kubori 2011; Kubori and Nagai 2016). The core complex of Dot/Icm T4SS is a biochemically stable part of the system and forms a transport conduit bridging the inner and outer membrane (Kubori et al. 2014). The core complex is composed of at least five proteins; three outer membrane-associated proteins, DotC, DotD and DotH, and two inner membrane proteins, DotF and DotG (Vincent et al., 2006). Based on the procedure for biochemical isolation of another bacterial nanomachine, the type III secretion system, from Salmonella typhimurium (Kubori et al., 1998; Marlovits et al., 2004), we modified the protocol to adapt it to the purification of the T4SS of L. pneumophla. In this protocol, we present the procedure to isolate the native core complex of the T4SS from detergent lysed wild-type L. pneumophila based on separation by ultracentrifugation. T4SS isolated using this procedure can be used to perform biochemical and transmission electron microscopy analyses described previously (Kubori et al., 2014).

Materials and Reagents

  1. Sterile swabs
  2. Sterile cell scrapers (IWAKI, catalog number: 9000-220 )
  3. Sterile conical tubes (50 ml and 15 ml)
  4. Sterile Petri dishes (100 mm in diameter)
  5. Cuvettes for spectrophotometer (1.5 ml) (BOECO, catalog number: BRA 759017 )
  6. Millex-GP filter units (EMD Millipore, catalog number: SLGP033RS )
  7. Sterile 10 ml syringe (Terumo, catalog number: SS-10LZ )
  8. Ultrafree MC filters (EMD Millipore, catalog number: UFC30GV00 )
  9. Sterile pipets (10 ml) (Thermo Fisher Scientific, Thermo ScientificTM, catalog number: 170356 )
  10. L. pneumophila Lp01 strain (Philadelphia-1 rpslL hsdR) (Berger and Isberg, 1993)
  11. cOmpleteTM protease inhibitor cocktail (Roche Diagnostics, catalog number: 11697498001 )
  12. Sodium chloride (NaCl) (Nacarai Tesque, catalog number: 31320-05 )
  13. 12.5% precast polyacrylamide gels (ATTO, catalog number: e-PAGEL E-R12.5L ; or equivalent)
  14. Glow-discharged carbon grids (Nisshin EM, catalog number: 649 )
  15. Coomassie brilliant blue (CBB) stain One (Nacarai Tesque, catalog number: 04543-51 )
  16. ACES (Sigma-Aldrich, catalog number: A3594 )
  17. BactoTM yeast extract (BD, BactoTM, catalog number: 212750 )
  18. MilliQ water
  19. Activated charcoal (Sigma-Aldrich, catalog number: C5510 )
  20. BactoTM agar (BD, BactoTM, catalog number: 214010 )
  21. L-cysteine hydrochloride monohydrate (Nacarai Tesque, catalog number: 10313-55 )
  22. Iron(III) nitrate enneahydrate, Fe(NO3)3·9H2O (Nacarai Tesque, catalog number: 19514-55 )
  23. Tris(hydroxymethyl)aminomethane (Tris) (Nacarai Tesque, catalog number: 35434-21 )
  24. Hydrochloric acid (HCl) (Nacarai Tesque, catalog number: 18321-05 )
  25. Sucrose (Nacarai Tesque, catalog number: 30404-45 )
  26. Phenylmethylsulfonyl fluoride (PMSF) (Nacarai Tesque, catalog number: 27327-94 )
  27. Isopropanol (Sigma-Aldrich, catalog number: 190764 )
  28. EDTA·2Na (Nacarai Tesque, catalog number: 15130-95 )
  29. Sodium hydroxide (NaOH) (Nacarai Tesque, catalog number: 31511-05 )
  30. Lysozyme (Wako Pure Chemical Industries, catalog number: 120-02674 )
  31. Triton X-100 (Nacarai Tesque, catalog number: 35501-15 )
  32. AG501-X8 Resin (Bio-Rad Laboratories, catalog number: 143-7425 )
  33. Magnesium sulfate heptahydrate (MgSO4·7H2O) (Nacarai Tesque, catalog number: 21003-75 )
  34. DNase I (Sigma-Aldrich, catalog number: DN25 )
  35. Potassium hydroxide (KOH) (Nacarai Tesque, catalog number: 28616-45 )
  36. Uranyl acetate (UA) (Merck, catalog number: 8473 )
  37. Phosphotungstic acid (PTA) (TAAB, catalog number: p013 )
  38. CYE plate (see Recipes)
  39. AYE medium (see Recipes)
  40. Tris-Cl solution (pH 8.0) (see Recipes)
  41. Sucrose solution (see Recipes)
  42. PMSF stock solution (see Recipes)
  43. EDTA stock solution (see Recipes)
  44. Lysozyme solution (see Recipes)
  45. Triton X-100 stock solution (see Recipes)
  46. MgSO4 stock solution (see Recipes)
  47. DNase I stock solution (see Recipes)
  48. KOH solution (see Recipes)
  49. NaOH stock solution (see Recipes)
  50. TET solution (see Recipes)
  51. PTA solution (see Recipes)
  52. Uranyl acetate solution (see Recipes)

Equipment

  1. Glass flasks (2 L)
  2. 37 °C shaking incubator
  3. 37 °C incubator
  4. Spectrophotometer
  5. Refrigerated centrifuge (KUBOTA, model: 7780 ; or equivalent models)
  6. Rotor for centrifugation (KUBOTA, models: AG-5006 , AG-6512C )
  7. Sterile centrifuge tubes (500 ml capacity, polypropylene or polycarbonate)
  8. Sterile centrifuge tubes (50 ml capacity, polyallomer or polycarbonate)
  9. Clean grass beakers (200 ml)
  10. Magnetic stir bars
  11. Magnetic stirrer
  12. pH meter
  13. Ultracentrifugation (Beckman Coulter, model: OptimaTM L-100 XP ; or equivalent models)
  14. Rotor for ultracentrifugation (Beckman Coulter, model: Type 70Ti )
  15. Tubes for ultracentrifugation (Beckman Coulter, catalog number: 355631 )
  16. Microfuge (Eppendorf, model: 5415 R )
  17. Glass beakers (1 L)
  18. Autoclavable flasks (2 L)
  19. Autoclave
  20. Electrophoresis apparatus (ATTO, model: AE-6530 ; or equivalent model)
  21. Electron microscope (JEOL, model: JEM-1011 )
  22. ÄKTA purifier (GE Healthcare)
  23. Superose 6 10/300 GL column (GE Healthcare, catalog number: 17517201 )

Procedure

  1. Grow L. pneumophila Lp01 strain on a charcoal-yeast extract (CYE) plate (Recipe No. 1) from a glycerol frozen stock for 3 days at 37 °C.
  2. Use a sterile swab to streak a L. pneumophila colony on the entire surface of CYE plates and cultivate for 2 days at 37 °C.
    Note: Two plates covered with a bacterial lawn are needed to obtain sufficient starting material to prepare 1 L culture.
  3. Take the whole bacteria using sterile cell scrapers and suspend it with ~5 ml ACES-buffered yeast extract (AYE) medium (Recipe No. 2) in a sterile tube. Measure OD600. Add the bacterial solution into 1 L AYE medium in a 2 L flask to make the suspension of OD600 0.2.
  4. Grow the bacteria for 12 h at 37 °C with rotary shaking (250 rpm).
  5. Chill the flask in icy water. Measure OD600. (It should be 2.0-3.0, indicating the late log phase of growth). Transfer the culture solution to chilled centrifuge tubes (2-3 tubes of 500 ml capacity).
  6. Harvest the bacteria by centrifugation at 12,000 x g (8,000 rpm) for 15 min at 4 °C (Refrigerated centrifuge: Kubota, model: 7780 or equivalent models; Rotor: Kubota, model: AG-5006).
  7. Resuspend the bacterial pellet with 140 ml of cold sucrose solution (Recipe No. 4) containing 1x cOmpleteTM protease inhibitor cocktail.
    Note: Thoroughly suspending bacterial pellets enhances the efficiency of the detergent lysis in step 11.
  8. Transfer the suspension to a 200 ml beaker with a magnetic stir bar on ice.
  9. Set the beaker on a magnetic stirrer at room temperature, and stir mildly until uniform suspension is achieved.
  10. Add PMSF (final 1 mM, Recipe No. 5), EDTA (final 1 mM, Recipe No. 6) and lysozyme (final 0.1 mg/ml, Recipe No. 7) in this order.
    Note: This is the process of spheroplast formation.
    Prepare a 20 mg/ml 200x stock solution. Add 0.7 ml of this stock solution to the 140 ml sucrose solution, yielding a final lysozyme concentration of approximately 0.1 mg/ml in the bacterial resuspension. Keep stirring for another 30 min at room temperature.
  11. Add slowly (drop by drop) 7 ml of 20% (w/v) Triton X-100 stock solution (final 1% w/v, Recipe No. 8) with stirring.
    Note: This is the most important step for detergent lysis of bacterial membranes. Carefully monitor the change of color and viscosity.
  12. Keep stirring until the solution becomes very clear (approximately for 30 min).
  13. Add 420 μl of 1 M MgSO4 stock solution (final 3 mM, Recipe No. 9) and 70 μl of 10 mg/ml DNase I stock solution (final 5 μg/ml, Recipe No. 10) in this order.
    Note: This step is required to digest DNA.
  14. Stir for 10 min.
  15. Add EDTA (final 10 mM).
  16. Monitoring pH using a pH meter, adjust pH to 10.0 by adding 1 N NaOH (Recipe No. 12).
    Note: During this step, large membrane vesicles and fragments that remain are disrupted. The core complex is stable at this high pH, while loosely associated contaminant proteins can be detached from the core complex. For the purpose of analyzing the loosely associated components of the T4SS, pH value can be modified to maintain these proteins in the complex.
  17. Move the beaker on ice.

Note: Procedure below should be done at 4 °C.

  1. Transfer the lysate to chilled 50 ml centrifuge tubes (divide into 3 tubes).
  2. Centrifuge the lysate at 12,000 x g for 20 min at 4 °C to remove non-lysed materials. (Refrigerated centrifuge: Kubota, model: 7780 or equivalent models; Rotor: Kubota, model: AG-6512C).
  3. Recover supernatant and transfer to ultracentrifuge tubes (Beckman Coulter).
  4. Apply ultracentrifugation at 100,000 x g for 30 min at 4 °C to precipitate protein complexes. (Ultracentrifuge: Beckman Coulter, model: Optima L-100 XP or equivalent models; Rotor: Beckman Coulter, model: Type 70Ti)
  5. Discard supernatant. Soak the pellet with 0.5 ml of cold TET solution (Recipe No. 13) including 1 mM PMSF per tube. To dissolve completely, leave the pellet in TET overnight at 4 °C.
  6. Merge the completely dissolved suspensions and transfer them in a new conical or centrifuge tube (total ~5 ml). Use extra 2-3 ml of cold TET solution to completely recover the dissolved proteins from the tubes and merge them into the new tubes.
  7. Centrifuge the suspension at 14,000 x g for 15 min at 4 °C to remove precipitate. (Refrigerated centrifuge: Kubota, model: 7780 or equivalent models; Rotor: Kubota, model: AG-6512C).
  8. Submit the supernatant to a second round of ultracentrifugation at 100,000 x g for 30 min at 4 °C. (Ultracentrifuge: Beckman Coulter, model: Optima L-100 XP or equivalent models; Rotor: Beckman Coulter, model: Type 70Ti)
  9. Resuspend the pellet in ~300 μl of cold TET. The sample is ready for biochemical and electron microscopic analyses (Figures 1A and 1B).
  10. (Optional) Further separation by Superose 6 10/300 column chromatography equilibrated with TET plus 50 mM NaCl can be used to remove large aggregates either made of T4SS or contaminant proteins. Collect the fractions and identify the fractions containing the core complex by gel electrophoresis and transmission electron microscopy (as shown in steps 28 and 29) (Figures 1C and 1D).
    Note: As TET solution contains Triton X-100 that disturbs UV monitoring, the UV peaks do not always accord with the presence of the protein complexes. Alternative approaches like sucrose density gradient ultracentrifugation can be applicable for further purification.
  11. For biochemical analysis, apply samples on 12.5% SDS-polyacrylamide gel (PAGE) and stain with ready-made Coomassie Brilliant Blue stain solution, CBB stain One (Nacarai).
  12. For transmission electron microscopy analysis, apply samples on glow-discharged carbon grids and negatively stained with 2% (w/v) PTA pH 7.0 (Recipe No. 14) or 2% (w/v) uranyl acetate (Recipe No. 15). Take micrographs at an accelerating voltage of 80 kV.

Data analysis

The second round of ultracentrifugation enhances the purity of the isolated complex, and the following column chromatography further removes the background contaminations (Figure 1).

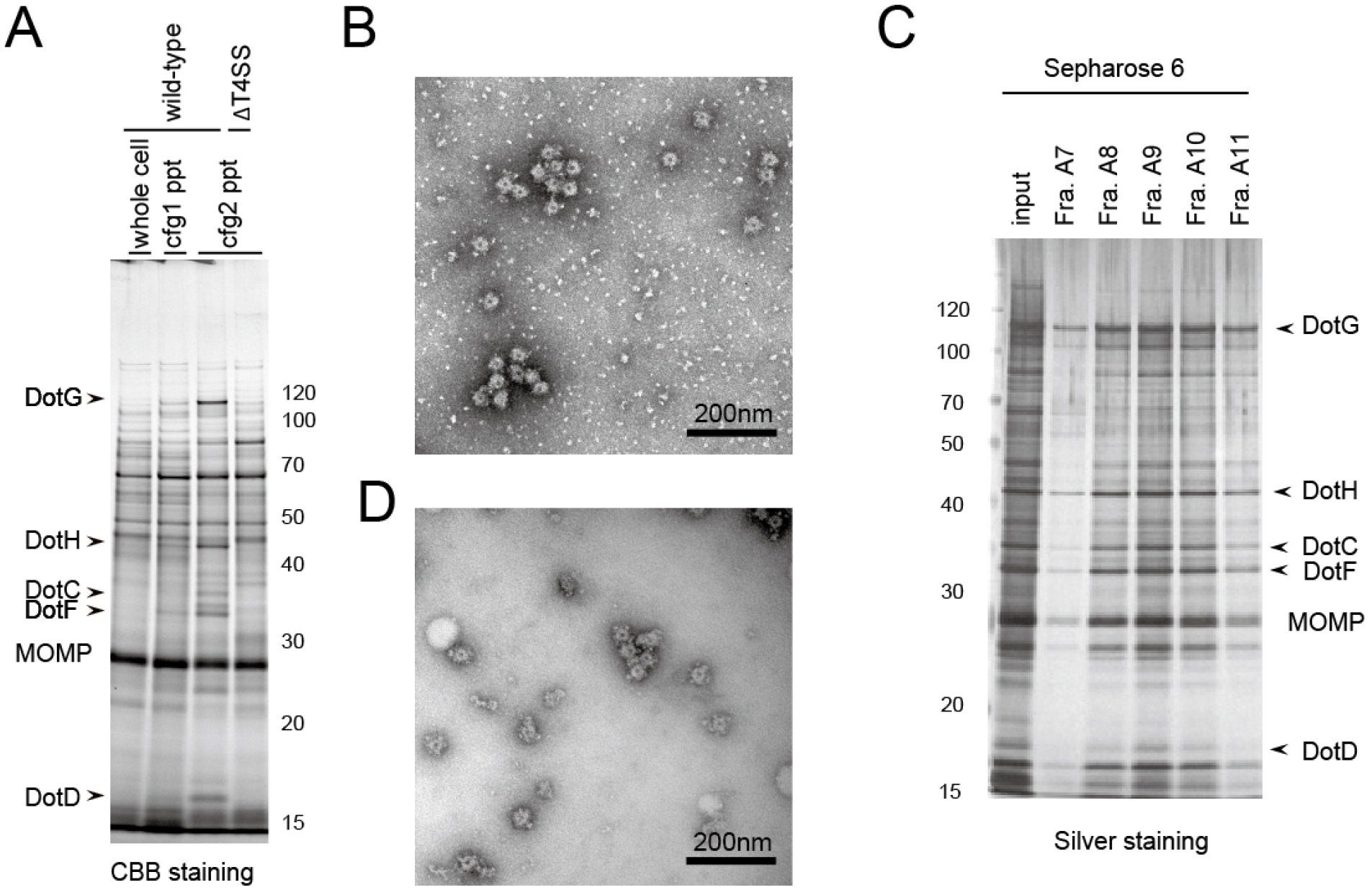

Figure 1. Example of isolated Dot/Icm T4SS core complex. A. SDS-PAGE analysis of the isolated complex in comparison between 1st and 2nd rounds of ultracentrifugation (steps 21 and 25, respectively). Whole cell: Whole cell lysate (step 20); cfg1 ppt: 1st ultracentrifugation pellet (step 22); cfg2 ppt: 2nd ultracentrifugation pellet (step 26). As a negative control, a L. pneumophila strain lacking all dot/icm genes (∆T4SS) was also submitted to the isolation procedure (the rightmost lane). B. The electron micrograph of the fraction obtained by the 2nd ultracentrifugation; C. SDS-PAGE analysis of the fractions obtained by a size exclusion column chromatography (step 27); D. The electron micrograph of the fraction A10 of (C). Molecular weight markers are shown in kDa. MOMP: Major Outer membrane Protein. The images are adapted from Kubori et al. (2014).

Recipes

  1. CYE plate (for 24 plates, 1 L)
    10 g ACES
    10 g yeast extract
    Dissolve in ~0.9 L MilliQ water in a 1 L glass beaker, adjust pH by adding 1 N KOH (see Recipe No. 11; ~40 ml) and monitoring with pH meter
    Bring the volume up to 1 L
    Add to a 2 L autoclavable flask containing a magnetic stirrer bar and 2 g activated charcoal and 15 g agar
    Mix briefly by stirring
    Autoclave the media at 121 °C for 30 min
    Cool down at room temperature until the temperature reaches ~60 °C with gentle stirring. During the time, prepare L-cysteine (0.4 g solved in 10 ml sterile MilliQ water) and Fe(NO3)3 (0.135 g solved in 10 ml sterile MilliQ water) solutions in sterile 15 ml conical tubes, and filter them with Millex-GP filter unit with 10 ml syringe
    Add L-cysteine and Fe(NO3)3 solutions (10 ml each) to 1 L medium with stirring
    Keep stirring for another 5 min to mix homogeneously
    Pour ~40 ml per Petri dish and cool down to solidify
  2. AYE medium (1 L)
    Same as CYE except that agar is omitted
    Note: AYE is not good for use on the same day of preparation. For good result, AYE should be made one day before the Legionella culture. Old media (more than a week after preparation) is not recommended.
  3. Tris-Cl solution (pH 8.0)
    1 M solution
    Adjust pH to 8.0 with HCl
    Autoclave at 121 °C for 20 min
  4. Sucrose solution
    0.5 M sucrose
    150 mM Tris-Cl (pH 8.0)
  5. PMSF stock solution
    100 mM in isopropanol
    Storage at -20 °C
  6. EDTA stock solution
    0.5 M EDTA
    Adjust pH to 8.0 with NaOH
    Autoclave at 121 °C for 20 min
  7. Lysozyme solution
    20 mg/ml in sucrose solution
    Prepare just before use
  8. Triton X-100 stock solution
    20% (w/v) solution containing ~2 g of AG501-X8 Resin for deionizing
  9. MgSO4 stock solution
    1 M solution
    Autoclave at 121 °C for 20 min
  10. DNase I stock solution
    Dissolve the powder in sterile water to give 10 mg/ml solution
    Storage at -20 °C
  11. KOH solution
    1 N solution
  12. NaOH stock solution
    1 N solution
  13. TET solution
    10 mM Tris-Cl (pH 8.0)
    1 mM EDTA
    0.1% Triton X-100
  14. PTA solution
    2% (w/v) phosphotungstic acid. Adjust to pH 7.0
  15. Uranyl acetate solution
    2% (w/v) uranyl acetate
    Filter with 0.22 μm ultra-free MC
