Materials and Reagents

Cell strainer (400 mesh)
Centrifuge tube (1.5 ml and 10 ml) (Corning Inc., catalog number: MC-150-C )
Round Petri dish (35 mm in diameter) (Corning Inc.)
Square Petri dish (100 mm, pym-100-10) (Xinshengke)
Plastic strips
Constructed vector (Li et al., 2015)
Transgenic Secretory 24 (OsSEC24) (Li et al., 2015) rice seedlings and plasma membrane (PM) ATPase 2 (OsPMA2)-mCherry (Li et al., 2015) plus OsSEC24-GFP double-transgenic rice protoplasts
Cellulase (Onozuka, catalog number: 130419-01 )
Macerozyme (Japan) (catalog number: 121207-01)
M519 (catalog number: 14C0519105B)
Mannitol
MES (pH 5.7)
KCl
NaCl
CaCl₂
MgCl₂
Sucrose
1%-1.5% agar
Calibration medium buffer (pH 7.0) for NMT (see Recipes)
Calibration medium buffer (pH 5.0) for NMT (see Recipes)
Incubation solution (see Recipes)
Mmg solution (see Recipes)
MS medium (see Recipes)
NT medium (see Recipes)
Protoplasting enzyme solution (see Recipes)
Polyethylene glycol (PEG)-calcium solution (see Recipes)
Standard medium buffer (pH 6.0) for NMT (see Recipes)
Washing buffer (see Recipes)

Equipment

Centrifuge (SIGMA Laborzentrifugen GmbH, model: 3K15 )
Glass beaker (100 ml) (Bomex)
Growth chamber
Liquid ion exchanger (LIX) Holder (YoungerChina)
Microelectrodes (1-2 μm, 4-5 μm) (YoungerUSA)
Micropipettor (100-1,000 μl and 10-100 μl) (Eppendorf)
Non-invasive Micro-test System (YoungerUSA, model: NMT100 series )
Shaker (Focus Technology Co., Shanghai Meditry Instrument, model: THZ-C-1 )

Software

NIS-Elements AR software (available at http://www.youngerusa.com)
ASET 2.0 software (The imFlux^® software) (available at http://www.youngerusa.com)
JCal v3.2.1 (available at http://www.youngerusa.com)

Procedure

Measurement of transgenic rice root hair system
1. Culture of transgenic rice seedlings
  Fourteen-day-old transgenic rice (Oryza sativa L. ‘Japonica’) seedlings that were transformed with pCAMBIA1302-OsSEC24-GFP were germinated on MS medium under controlled conditions in a 16 h light/8 h dark cycle at 28 degrees centigrade (°C). Secretory 24 (OsSEC24) is a component of the coat protein II (OsCOPII) vesicles that are required for secretory protein sorting, including of plasma membrane (PM) ATPase 2 (OsPMA2). Further information regarding OsSec24 may be found in Li et al. (2015).
2. Non-invasive measurement
  1. Preparation and calibration of the microelectrode
    1. Chloridize the silver for 20 sec with 100 mM KCl by using a silver chloride device, as shown in Figure 1.

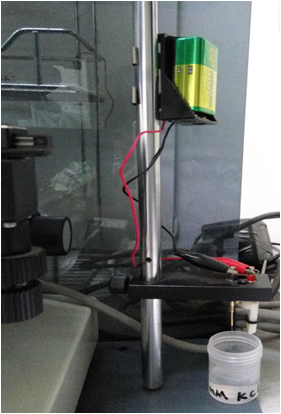

      Figure 1. Schematic diagram of the silver chloride device. A silver is connected to the positive electrode of the battery and a platinum wire is connected to the negative electrode of the battery.
    2. Fill the holder and microelectrode with 0.5 cm H⁺ liquid ion exchanger (LIX) and 1-1.5 cm NaCl/K₂HPO₄ buffer.
    3. Place the holder and microelectrode under the microscope lens and fill the tip of the microelectrode with 15-25 μm H⁺ LIX, as shown below and in Figures 2 and 7.

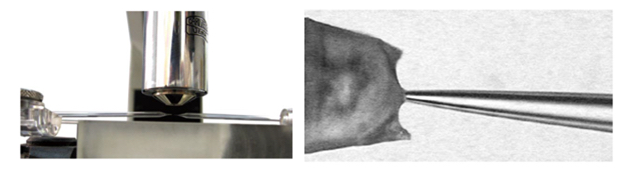

      Figure 2. Schematic diagram of a position of the microelectrode and LIX holder. Microelectrode (right) and LIX holder (left) are in the same field of a microscope. The picture is from YoungerUSA (Xuyue, Beijing) NMT Service Center.
    4. Install the microelectrode into the Non-invasive Micro-test device and manually place the microelectrode in the ready position, as shown in Figure 3.

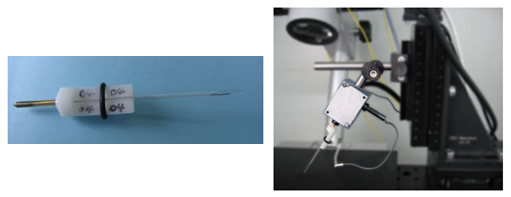

      Figure 3. Connection diagram of microelectrodes and Non-invasive Micro-test device. The prepared microelectrode is inserted into the device. The picture is from YoungerUSA (Xuyue, Beijing) NMT Service Center.
    5. Calibrate each ion-specific microelectrode against a set of known pH buffers before and after each experiment with the ASET 2.0 software to prevent electrode drift (Figure 4). Click the Technique button and ensure ISP/PVP is set at X-30 before calibration, thus, setting the dx at 30 µm. Click the Technique button and choose Calibration, and input 0.0001 in the space for solution 1 and 0.01 in solution 2. Place the reference electrode and microelectrode into the standard medium buffer and ensure that the whole tips of reference electrode and microelectrode are immersed in the standard medium buffer. Calibrate proton (H⁺) microelectrodes in calibration medium (pH 7.0 and pH 5.0) by clicking Solution 1 and Solution 2 button, respectively, following the same procedure and standards (Figure 7). Only use H⁺ electrodes with Nernst slope between 53 and 63 mV/decade for measurement. Data must be discarded if the calibration is incorrect.

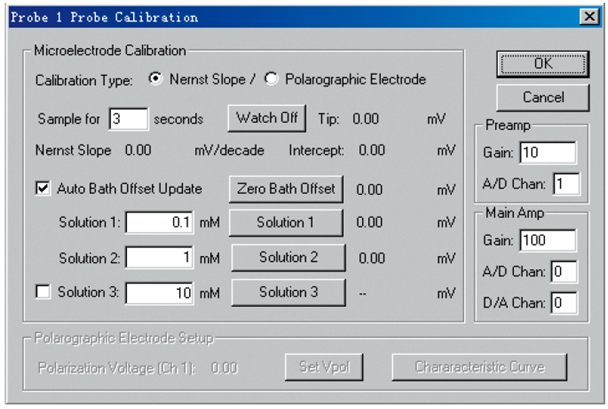

      Figure 4. Interface of the electrode calibration in ASET 2.0 software. The picture is from YoungerUSA (Xuyue, Beijing) NMT Service Center.
Measurement of H⁺ flux in the root hairs of transgenic rice seedlings
1. Wash and incubate transgenic rice roots in standard medium buffer for 5 min at room temperature.
2. Place whole transgenic rice roots in the Petri dish with standard medium buffer using plastic strips (Figure 5).

  Figure 5. Schematic diagram of how to place whole transgenic rice roots
3. View root hairs and microelectrodes under high magnification (40x) with the Zeiss compound microscope by using the NIS-Elements AR software and position as shown in Figure 8C.
4. Position microelectrodes close to the root hairs belonging to the mature region of the lateral roots, as shown in Figure 8C. Click the Mode button and choose Watch, then click the Record and Resume button to start computer measurement. Microvolt differences are measured at two excursion points at a frequency of 0.05 Hertz (Hz) manipulated with the help of NIS-Elements AR and ASET 2.0 software, as shown in Figure 6. The distance between the two excursion points (dx) is 30 micron (μm). Monitor kinetics of net H⁺ fluxes near each root hair for 15 min. Two roots per rice seedling and two root hairs per root were assayed.

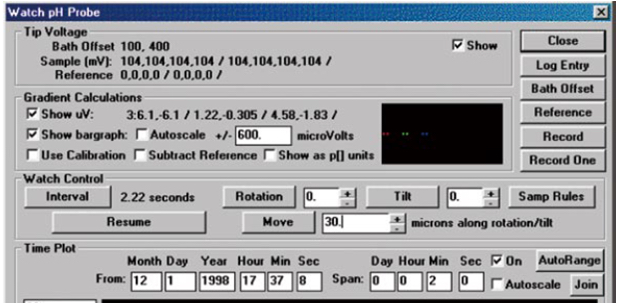

  Figure 6. Interface of the watch mode in ASET 2.0 software. The picture is from Younger USA (Xuyue, Beijing) NMT Service Center.
5. Microvolt differences are exported as raw data before conversion into net H⁺ fluxes by using JCal v3.2.1. Choose the H⁺ measured and the dr equal to the dx used, and input the slope and intercept measured during calibration. Finally, enter the data Origin(1) millivolts (mV) and AvgOrigin-X microvolts (µV) as measured by ASET 2.0 software(The imFlux^® Software). H⁺ flux is then calculated directly by using the JCal v3.2.1 software. A positive number represents the outflow of H⁺ whereas a negative number represents the inflow of H⁺. The H⁺ flux assay of each group of transgenic rice root hairs consists of four independent replications (Figure 8).

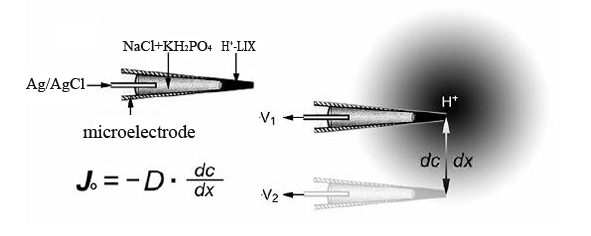

  Figure 7. Schematic diagram of H⁺ flux detection. The microelectrode tip is filled with H⁺ LIX and NaCl/K₂HPO₄ buffer. The chloridized silver (Ag/AgCl) is immersed in the NaCl/K₂HPO₄ buffer. A voltage gradient (dV = V₂ - V₁) is measured by the electrometer between two positions over the travel range (dx). A concentration gradient (dc) is calculated using dV. D, H⁺ diffusion constant; J, net ion flux of H⁺.

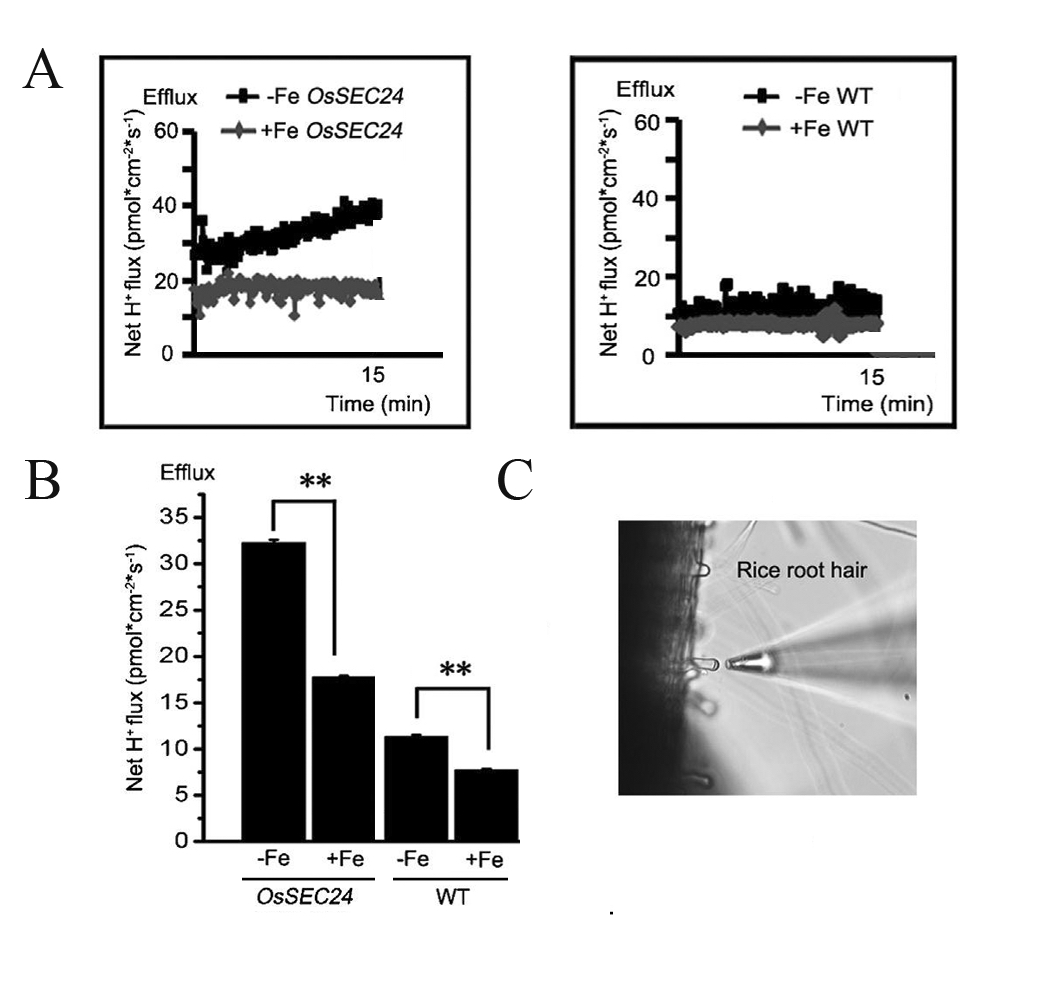

  Figure 8. Measurement of H⁺ efflux in rice root hair by using NMT (Li et al., 2015). The results indicate the effects of OsSEC24 on H⁺ extrusion in transgenic rice roots under -Fe conditions. A. Kinetics of H⁺ flux in OsSEC24 transgenic (left) and wild type (WT) (right) rice root hair grown on -Fe or +Fe medium for two weeks. B. The mean rates of H⁺ flux in (A), using the mean value of four independent measurements (mean ± SE). Two roots in each plant and two root hairs in each root were assayed. **indicates P < 0.01 using Student’s t-test. (C) Measuring position using the H⁺-selective microelectrode during NMT.
Measurement in transformed rice protoplasts
1. Rice cell suspension culture
  Incubate rice (Oryza sativa L. cv. Japonica) cells (in this case, courtesy of the Institute of Genetics and Development of the Chinese Academy of Sciences) suspended in NT medium at 28 °C at 150 revolutions per min (rpm) for 5 days under dark conditions.
2. Preparation and transient transformation of rice protoplasts
  Perform protoplast isolation from rice suspension cells and transient expression similar to Li et al. (2015).
  1. Preparation of rice protoplasts
    1. Harvest rice suspension cells into a centrifuge tube and allow to stand for 15 min before discarding the NT medium.
    2. Incubate rice cells in the protoplasting enzyme solution for 1-2 h at 26 °C in an orbital shaker with gentle agitation at 50-75 rpm.
    3. Isolate protoplasts from the undigested material into a glass beaker with a cell strainer and centrifuge at 2,000 rpm for 15 min at 4 °C.
    4. Resuspend cells in 5 ml of washing buffer, followed by pelleting again by centrifugation for 15 min at 2,000 rpm at 4 °C.
  2. Transient transformation of rice protoplasts
    1. Resuspend in 0.3 ml of Mmg solution at room temperature before adding 0.03 ml of plasmids including pBIN20-OsPMA2-mcherry and pBI221-OsSEC24-GFP and 0.33 ml of PEG-calcium solution.
    2. Incubate protoplasts at room temperature for 15 min in the dark for transformation.
    3. Wash transgenic protoplasts with 0.3 ml of washing buffer and centrifuge for 15 min at 2,000 rpm at 26 °C before gentle resuspension in 1 ml incubation solution in a Petri dish and incubation at room temperature for 20-25 h.
    4. Proton secretion is mediated from the cell to the environment by the plasma membrane (PM) and is typically conducted by H⁺-ATPases in plants. OsPMA2 is a rice PM-H⁺-ATPase and is sorted to the PM by vesicular trafficking. Further information concerning Ospma2 is available in Li et al. (2015).
3. Non-invasive measurement
  1. Preparation and calibration of the microelectrode
    To prepare and calibrate the microelectrode, follow the instructions given in section A2a, above, altering step A2a-v such that ISP/PVP is set at X-10.
  2. Measurement of H⁺ flux in root hairs of transgenic rice seedlings
    1. Place transformed protoplasts in a Petri dish with standard medium buffer and incubate for 5 min at room temperature.
    2. View transformed protoplasts and microelectrodes under high magnification (40x) with the Zeiss compound microscope using the NIS-Elements AR software, positioned as shown in Figure 9C.
    3. Position microelectrodes close to three equally sized transformed protoplasts as shown in Figure 9C. Press the Mode button and choose Watch in ASET 2.0 software (The imFlux^® Software). Press the Record and Resume button to start computer measurement. Microvolt differences are measured at two excursion points at a frequency of 0.05 Hz and manipulated with the aid of NIS-Elements AR and ASET 2.0 software (The imFlux^® Software). The distance between the two excursion points (dx) is 10 μm. Monitor the kinetics of net H⁺ fluxes near each protoplast for 15 min.
    4. Export raw microvolt differences and convert to net H⁺ fluxes using JCal v3.2.1. Select the measured H⁺ and the dr equal to the dx used and enter the slope and intercept measured during calibration. Finally, paste the values for Origin(1) millivolts(mV) and AvgOrigin-X µV as measured by the ASET 2.0 software (The imFlux^® Software). H⁺ flux is calculated directly by the JCal v3.2.1 software. A positive number represents H⁺ outflow whereas a negative number represents H⁺ inflow. The H⁺ flux assay of each type of transformed protoplast consists of three independent replications (Figure 3).

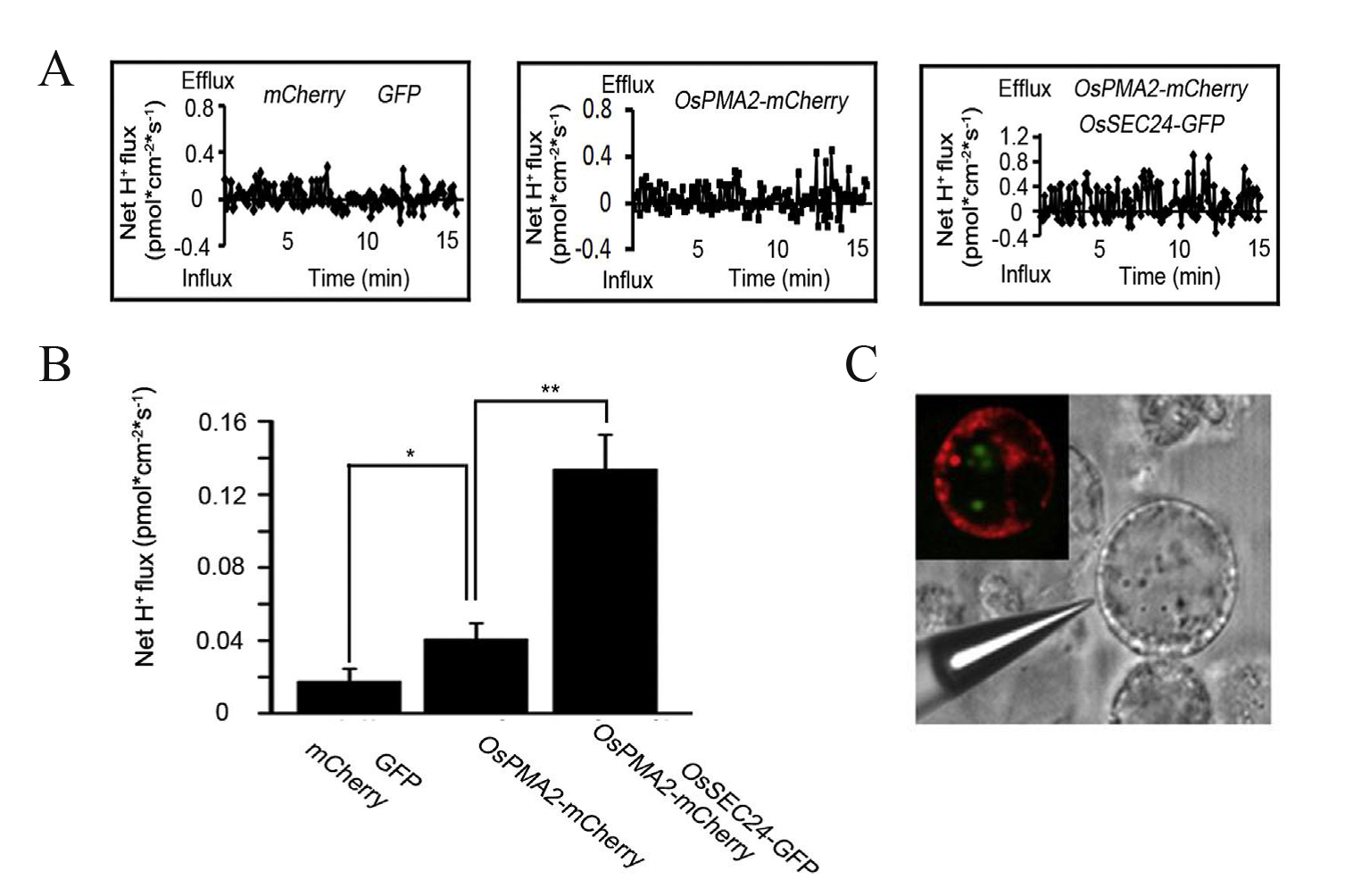

      Figure 9. Measurement of H⁺ efflux in transformed rice protoplasts using NMT (Li et al., 2015). The results indicate the effects of OsSEC24 on the transport of OsPMA2 in a rice protoplast. A. Kinetics of H⁺ flux in mCherry plus GFP double-transgenic rice protoplasts (empty vector on the left), OsPMA2-mCherry single-transgenic protoplasts (in the middle) and OsPMA2-mCherry plus OsSEC24-GFP double-transgenic protoplasts (on the right). The experiment was performed three times. B. The mean rates of H⁺ flux in A, using the mean value of three independent measurements (mean ± SE). *indicates P < 0.05 using Student’s t-test whereas **indicates P < 0.01 using Student’s t-test. C. Location of OsSEC24 (in vesicle, colored green) and PMA2 (in PM, colored red) in transformed rice protoplasts using confocal microscopy and measuring position using the H⁺-selective microelectrode of NMT.

Recipes

Calibration medium buffer (pH 7.0) for NMT
0.6 M mannitol
4 mM MES (pH 5.7)
4 mM KCl
154 mM NaCl
125 mM CaCl₂
pH adjusted to 7.0 with HCl or NaOH
Stored at 4 °C
Calibration medium buffer (pH 5.0) for NMT
0.6 M mannitol
4 mM MES (pH 5.7)
4 mM KCl
154 mM NaCl
125 mM CaCl₂
pH adjusted to 5.0 with HCl or NaOH
Stored at 4 °C
Incubation solution
0.6 M mannitol
4 mM KCl
154 mM NaCl
125 mM CaCl₂
4 mM MES (pH 5.7)
Stored at 4 °C after autoclave sterilization (121 °C, 15 min)
Mmg solution
15 mM MgCl₂
0.6 M mannitol
4 mM MES (pH 5.7)
Stored at 4 °C after autoclave sterilization (121 °C, 15 min)
MS medium
4.43 g/L M519
88 mM sucrose
pH adjusted to 5.7 with HCl or NaOH
1%-1.5% agar
Distribute medium to square petri dishes and stored at 4 °C after autoclave sterilization at 121 °C for 15 min
NT medium
4.43 g/L M519
88 mM sucrose
4.5 mM 2,4-dichlorophenyloxyacetic acid (2, 4-D)
pH adjusted to 5.8 by using HCl or NaOH
Stored at 4 °C after autoclave sterilization (121 °C, 15 min)
Protoplasting enzyme solution
0.6 M mannitol
10 mM MES (pH 5.7)
Storage at 4 °C after autoclave sterilization at 121 °C for 15 min and add 1 mM CaCl₂, 0.1% bovine serum albumin, 1.5% cellulase RS and 0.75% macerozyme before plating enzymolysis
Polyethylene glycol (PEG)-calcium solution
40% PEG3350
0.6 M mannitol
0.1 M CaCl₂
Stored at 4 °C
Standard medium buffer (pH 6.0) for NMT
0.6 M mannitol
4 mM MES (pH 5.7)
4 mM KCl
154 mM NaCl
125 mM CaCl₂
pH adjusted to 6.0 with HCl or NaOH
Stored at 4 °C
Washing buffer
154 mM NaCl
5 mM KCl
125 mM CaCl₂
2 mM MES (pH 5.7)
Stored at 4 °C after autoclave sterilization (121 °C, 15 min)

Acknowledgments

The protocol was adapted from our previously published paper Li et al. (2015). We wish to thank Younger USA (Xuyue, Beijing) NMT Service Center for technical support. This study was supported by the National Natural Science foundation of China (Grant Nos. 30770178 and 30971856), Beijing Municipal National Science Foundation Key Fund Projects (B) (Grant No. KZ200710028013), Beijing Municipal National Science Foundation (No. 5042004), and the Seventh Beijing Municipal Outstanding Teacher Award (2011).

References

Li, S., Pan, X. X., Berry, J. O., Wang, Y., Naren, Ma, S., Tan, S., Xiao, W., Zhao, W. Z., Sheng, X. Y. and Yin, L. P. (2015). OsSEC24, a functional SEC24-like protein in rice, improves tolerance to iron deficiency and high pH by enhancing H⁺ secretion mediated by PM-H⁺-ATPase. Plant Sci 233: 61-71.
Newman, I. A., Kochian, L. V., Grusak, M. A. and Lucas, W. J. (1987). Fluxes of H⁺ and K⁺ in corn roots : characterization and stoichiometries using ion-selective microelectrodes. Plant Physiol 84(4): 1177-1184.
Sun, T., Li, P., Yin, L., Xu, Y. and Yu, S. (2007). Non-invasive scanning ion-selective electrode technique and its applications to the research of higher plants. Progress in Natural Science 17(6): 625-629.
Tan, S., Han, R., Li, P., Yang, G., Li, S., Zhang, P., Wang, W. B., Zhao, W. Z. and Yin, L. P. (2015). Over-expression of the MxIRT1 gene increases iron and zinc content in rice seeds. Transgenic Res 24(1): 109-122.
Xu. Y, Sun. T and Yin. L. P. (2006). Application of non-invasive microsensing system to simultaneously measure both H⁺ and O₂ fluxes around the pollen tube. Journal of Integrative Plant Biology 48 (7): 1-5.
Yang, G., Ma, F., Wang, Y., Feng, C. G., Li, P., Xu, Y., Zhao, W. Z. and Yin, L. P. (2010). Vesicle-related OsSEC27P enhances H⁺ secretion in the iron deficient transgenic tobacco root. Chinese Science Bulletin 55(13): 3298-3304.
