Assays for Determination of Acetylesterase Activity and Specificity Using pNP-acetyl and Acetylated Polysaccharides as Substrates

Materials and Reagents

1. Plant material

2. 4-Nitrophenyl acetate (Sigma-Aldrich, catalog number: N8130 )

3. 4-Nitrophenyl (Sigma-Aldrich, catalog number: N1048 )

4. Tris-HCl

5. EDTA

6. MgCl₂

7. Xylan from Birchwood (Sigma-Aldrich, catalog number: X4252 )

8. Pectin from citrus fruit (Sigma-Aldrich, catalog number: P9436 )

9. Sodium phosphate

10. Sodium hydroxide

11. Hydroxylamine hydrochloride (Acros Organics, catalog number: 5470-11-1 )

12. Perchloric acid (Sigma-Aldrich, catalog number: 311421-50ML )

13. Absolute methanol

14. Glucose-penta-acetate (Sigma-Aldrich, catalog number: G2354-25G )

15. Deionized water

16. Bio-Rad Protein Assay (Bio-Rad Laboratories, catalog number: 500-0006 ) (optional)

17. Extraction/reaction buffer (see Recipes)

18. Re-suspension buffer (see Recipes)

19. Acid-alcohol solution (see Recipes)

20. Ferric Perchlorate reagent (MP Biomedicals, catalog number: 215875 ) (see Recipes)


Equipment

1. Sharp razor blade

2. pH meter

3. Microtiter plate reader

4. Microcentrifuge

5. Centrifuge compatible with 15 ml vials

6. 96-well microtiter plate

7. Parafilm

8. Sharp razor blade

9. 10 ml syringe

10. Light water flow laboratory vacuum

11. SpeedVac dryer

12. Vortex

13. NanoDrop spectrophotometer (optional)

14. Shaker for microtubes

Procedure

1. Apoplast protein extraction from plant material
   Note: Acetylesterase activity assay can be applied not only for apoplast proteins but also for total proteins extracts and purified enzymes.
   1. Harvest 2-5 g of aerial parts (stems, leaves, siliques, flowers, and buds) of plants and immediately cut into 5 mm segments using a sharp razor blade.
   2. Place plant material into a 10 ml syringe which had its tip sealed with Parafilm (Figure 1A-B).
   3. Add 5 ml of pre-cooled extraction/reaction buffer.
   4. Place the syringe into a centrifuge tube (tip is showing downwards, Figure 1C) and treat under vacuum in exicator (Figure 1D-E) twice for 15 min with a 5 min break in a cold room at 10 °C.
   5. Open the tip of syringe, carefully drain the buffer by gravity flow and discard it.
   6. Centrifuged at 1,000 x g for 10 min at 10 °C.
   7. Place apoplast extracts accumulates at the bottom of the tube on ice.
   8. Estimate protein concentration by NanoDrop or by Bradford assay described at Bradford Protein Assay (He, 2011).

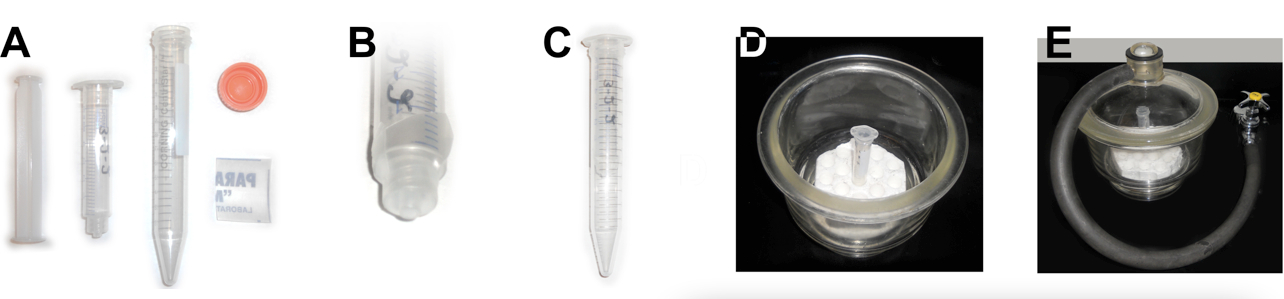

      Figure 1. Apoplast extraction tools. A. Initial set: 5 ml syringe, 15 ml centrifuge tube, parafilm. B. Syringe tip sealed with parafilm. C. Syringe with sealed tip placed into centrifuge tube. D. Syringe with sealed tip in centrifuge tube placed into vacuum exicator. E. Vacuum exicator connected to the vacuum line.


2. Total activity of acetylesterases
   1. Dilute apoplast extract with extraction/reaction buffer to obtain 0.128 mg in 100 µl.
      Note: Amount of protein for assay will vary depending on the enzymatic activity and specificity of acetylesterases present in extract. Here we perform example made on Arabidopsis extracts.
   2. Prepare blank negative control by adding of 1 μl of 200 mM pNP-acetyl to the 100 μl of boiled for 10 min apoplast extract containing 0.128 mg of protein.
   3. Add 1 μl of 200 mM pNP-acetyl to 100 µl of diluted apoplast extract.
   4. Incubate at room temperature for 0, 5, 15, 30, 60, 120, 180 min reading blank and samples absorbance at 460 nm in microplate reader at each time point.
   5. Prepare standard curve by measuring absorbance at 460 nm of 100 μl pNP solution diluted in series of concentrations ranging from 0.1 mM to 2 mM. All dilutions prepare in 3 replicates. Calculate the slope of the line which will give STD1 value equal to absorbance of 0.1 μmoles of pNP.
   6. Measure OD₄₆₀ sample-OD₄₆₀ blank for each time point and calculate the slope.
   7. Calculate the amount of released pNP using the following formula:
      Slope/STD1*0.1/0.128
      Slope (from step B6)
      0.1 and STD1 (from step B5)
      0.128 (from step B2)
      Obtaining valueу will indicate amount of released pNP µmoles per 1 min per 1 mg of apoplast proteins


3. Assay for acetylesterase activity using  natural substrates (cell wall derived polysaccharides)
   1. Apply 0.12 mg of apopalst protein in extraction/reaction buffer to 20 mg of natural substrate in total volume 0.6 ml.
   2. Prepare blank negative control by adding 0.12 mg of boiled apoplast protein in extraction/reaction obuffer to 20 mg of natural substrate.
   3. Incubate at room temperature for 0, 30 min, 1 h, 3 h, 6 h shaking at 130 rpm.
   4. At each time point spin down polysaccharide material (1 min at 17,000 x g) and take an aliquot 100 μl of supernatant.
      Note: After taking the aliquot vortex the pellet and continue incubation.

   5. Dry the aliquot using SpeedVac.
   6. Re-suspend dry material in 40 μl of Re-suspension buffer (use vortex).
   7. Add 100 μl of deionized water and mix carefully.
   8. Add 100 μl of acid-alcohol solution and mix carefully.
   9. Add 260 μl of Ferric Perchlorate reagent and mix carefully.
   10. Incubate at room temperature 15-30 min.
   11. Measure the absorbance at 510 nm.
   12. Measure OD₅₁₀ sample-OD₅₁₀ blank for each time point and calculate the slope.
   13. Prepare standard curve using glucose-penta-acetate with a series of dilutions from 0.1 mM to 2 mM in 40 μl solution following by steps C7-12 paragraphs from above. Calculate slope which will give STD2 value equal to absorbance of 0.2 nmoles of acetyl residues.
   14. Calculate the amount of released acetyls from natural substrates by following formula:
       Slope*0.2/STD2/0.02
       Slope (from step C12)
       0.2 and STD2 (from step C8)
       0.02 (from a. 0.18 mg of apoplast protein was used in total 6 measurements)
       Determined value will indicate amount of released acetyls (nmoles) per 1 min per 1 mg of apoplast protein

Recipes

1. Extraction buffer
   25 mM Tris-HCl
   50 mM EDTA
   150 mM MgCl₂ (pH 7.4)

2. Re-suspension buffer
   0.25 M hydroxylamine hydrochloride
   1 M sodium hydroxide solution

3. Acid-alcohol solution
   5% perchloric acid in absolute methanol

4. Ferric Perchlorate reagent
   0.3% ferric perchlorate (non-yellow)
   0.5% perchloric acid dissolved in 88% methanol


Acknowledgments

The authors acknowledge Carver Funding for the support of this work.

References

1. He, F. (2011). Bradford protein assay. Bio-protocol 1(6): e45.

2. McComb, E. and McCready, R. (1957). Determination of acetyl in pectin and in acetylated carbohydrate polymers. Anal Chem 29(5): 819-821.

3. Pogorelko, G., Lionetti, V., Fursova, O., Sundaram, R. M., Qi, M., Whitham, S. A., Bogdanove, A. J., Bellincampi, D. and Zabotina, O. A. (2013). Arabidopsis and Brachypodium distachyon transgenic plants expressing Aspergillus nidulans acetylesterases have decreased degree of polysaccharide acetylation and increased resistance to pathogens. Plant Physiol 162(1): 9-23.

4. Pogorelko, G., Fursova, O., Lin, M., Pyle, E., Jass, J. and Zabotina, O. A. (2011). Post-synthetic modification of plant cell walls by expression of microbial hydrolases in the apoplast. Plant Mol Biol 77(4-5): 433-445.
