Materials and Reagents

10 cm culture dishes (Corning, catalog number: 430167 , or equivalent)
Pasteur pipettes (Fisher Scientific, catalog number: 13-678-20A , or equivalent)
Microcentrifuge tubes (FroggaBio, catalog number: LMCT1.7B , or equivalent)
PVDF membrane (Bio-Rad Laboratories, catalog number: 1620177 )
Sterile 0.45 μm Luer-Lok syringe filters (Pall, catalog number: 4614 , or equivalent)
Sterile 20 ml syringes with Luer-Lok (BD, catalog number: 302830 , or equivalent)
Sterile 50 ml conical tubes (FroggaBio, catalog number: TB50-500 , or equivalent)
Sterile pipette tips (Diamed Advan Tech, catalog numbers: DIATEC520-5376 ; DIATEC520-5876 ; DIATEC520-6501 , or equivalent)
Polycarbonate tubes and lids (Beckman Coulter, catalog number: 355618 , or equivalent)
Serological pipettes, 10 ml (Corning, catalog number: 4488 , or equivalent)
293T cells (ATCC, catalog number: CRL-3216 )
NIH 3T3 (ATCC, catalog number: CRL-1658 )
R187 Hybridoma (ATCC, catalog number: CRL-1912 )
Anti-eGFP (Takara Bio, catalog number: 632381 )
Anti-Mouse IgG, HRP conjugated (Cell Signaling, catalog number: 7076S )
Anti-Rat IgG, HRP conjugated (Merck, catalog number: AP183P )
Dulbecco's modified Eagle's medium (DMEM) high glucose, with L-glutamine, sodium pyruvate and phenol red (WISENT, catalog number: 319-005-CL , or equivalent)
ECL (Bio-Rad Laboratories, catalog numbers: 1705060S [Clarity^TM] or 1705062S [Clarity Max^TM], or equivalents)
Fetal bovine serum (FBS) (Thermo Fisher Scientific, Gibco^TM, catalog number: 12483020 , or equivalent)
HCl, 36.5-38% (Fisher Scientific, catalog number: A144S-500 )
Hybridoma-SFM (Thermo Fisher Scientific, Gibco^TM, catalog number: 12045076 )
KCl (Fisher Scientific, catalog number: BP366-500 )
KH₂PO₄ (Fisher Scientific, catalog number: P285 500 )
Methanol (for Transfer Buffer, see Recipes) (VWR, catalog number: 56902-543 )
Milli-Q Water (or equivalent)
Na₂HPO₄ (Fisher Scientific, catalog number: S393-3 )
NaCl (Fisher Scientific, catalog number: BP358-10 )
NaOH, 10N certified (Fisher Scientific, catalog number: SS255-1 )
Penicillin/Streptomycin (GE Healthcare, catalog number: SV30010 , or equivalent)
Polyethylenimine (PEI) (Polysciences, catalog number: 23966-1 , or equivalent)
Sodium dodecyl sulphate (SDS) (VWR, catalog number: 97064-496 , or equivalent)
Sucrose (WISENT, catalog number: 800-081-LG , or equivalent)
Tris-Base (for transfer buffer, see Recipes) (Fisher Scientific, catalog number: BP152-5 )
Triton X-100 (VWR, catalog number: 97062-208 , or equivalent)
10x PBS (see Recipes)
1x PBS (see Recipes)
PBS-T (see Recipes)
20% (m/v) sucrose in PBS (see Recipes)
2% (v/v) Triton X-100 or 0.2% (m/v) SDS in 5% (m/v) sucrose in PBS (see Recipes)
Complete DMEM (see Recipes)
Transfer Buffer (25x) (see Recipes)

Note: We used VWR as a distributor for Pall & Corning products.

Equipment

Pipettes (Gilson, catalog number: F167700 , or equivalent)
0.22 μm Steritop^® filters (Merck, catalog number: SCGPT10RE , or equivalent)
Balance (Fisher Scientific, catalog number: 01-919-358, or equivalent)
Manufacturer: Ohaus, catalog number: 30100606/RM .
Biosafety cabinet (Thermo Fisher Scientific, model: 1323TS , or equivalent)
Digital Imager (GE Healthcare, model: ImageQuant LAS 4000, catalog number: 28955810 , or equivalent)
Fridge (4 °C) (Whirlpool, model: WRT148FZDM , or equivalent)
Hemocytometer (Hausser Scientific, Bright-Line^TM, catalog number: 3100 , or equivalent)
Microscope (Fisher Scientific, catalog number: LMI6PH2 , or equivalent)
Manufacturer: Laxco, catalog number: LMI6PH2 .
Refrigerated table-top centrifuge (Thermo Fisher Scientific, model: 75004524 , or equivalent)
Tissue culture incubator, humidity, temperature and CO₂ regulated (Thermo Fisher Scientific, model: 3110 , or equivalent)
Type 70Ti Rotor (Beckman Coulter, catalog number: 337922 , or equivalent)
Ultracentrifuge (Beckman Coulter, model: 969347 , or equivalent)

Procedure

Refer to Figure 1 for an overview of the two methodologies used in this protocol.

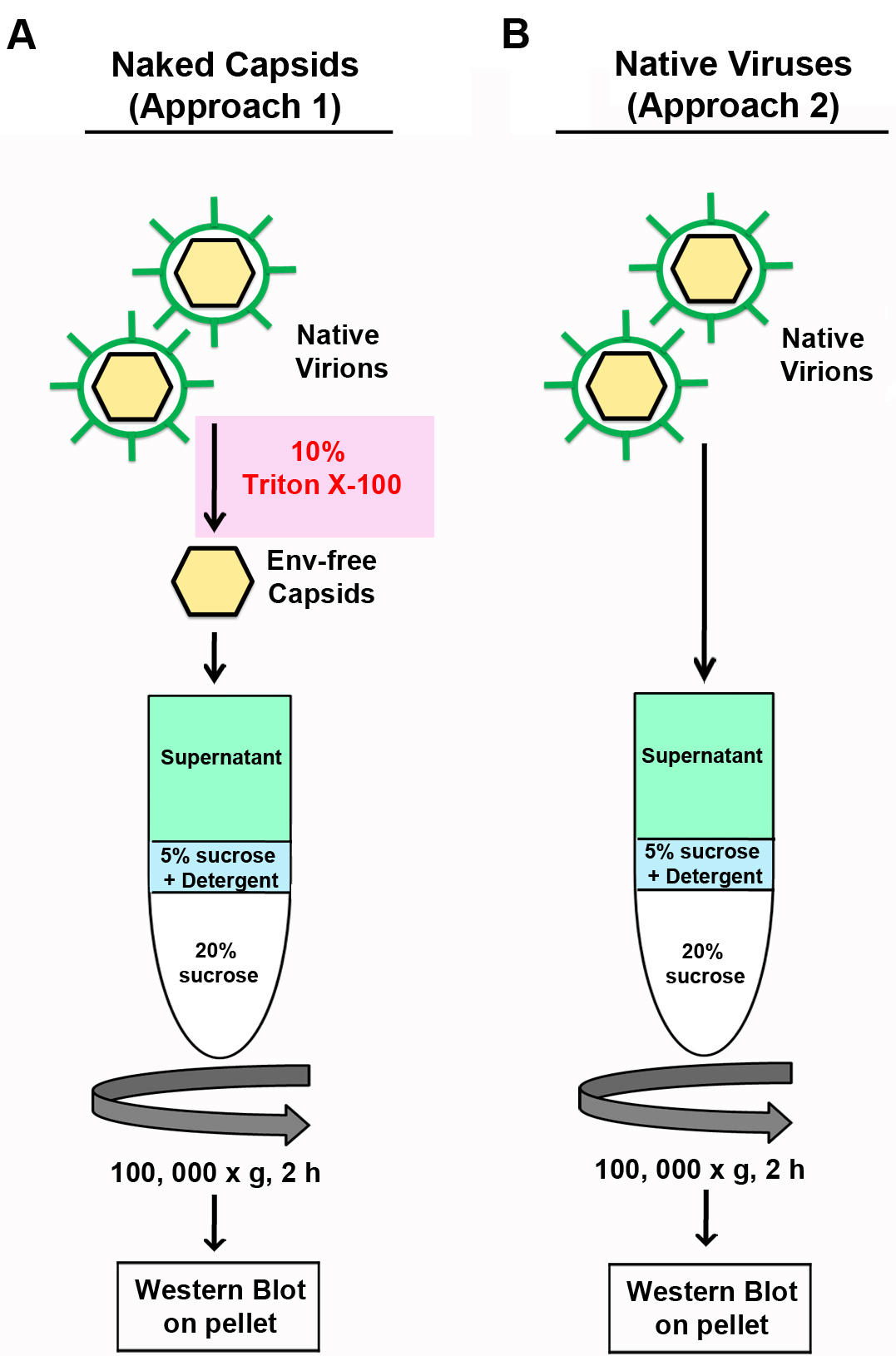

Figure 1. Overview of the Retroviral Capsid Core Stability Assay. Figure adapted from Renner et al., 2018a. A. Approach 1. Retroviruses are stripped of their envelope phospholipid bilayer coat via an initial treatment with detergent. These envelope-deficient (Env-free) capsids are subjected to ultracentrifugation, which briefly exposes them to an additional detergent treatment before entering a detergent-free sucrose solution. The density of this bottom layer containing 20% sucrose allows for efficient pelleting of intact capsids, but is a barrier to pelleting free CA protein and less dense protein complexes. B. Approach 2. A similar approach can be performed without the detergent pre-treatment step on native viruses. In this situation, the viruses will then be slightly more resistant to the detergent layer in the sucrose column. Performing these methods in combination will provide informative results about viral capsid core stability. The pellet is then analyzed by SDS-PAGE using antibodies specific to the CA protein, in this case p30 of M-MLV.
Seed 10 cm dishes with viral producer cells (i.e., viable infected cells that produce representative viral particles) in 8 ml of complete DMEM. For this assay, we typically seed 2 dishes each with 2 x 10⁶ NIH 3T3 cells, chronically infected with MLV. Alternatively, the cells (such as 293T) can be transfected with a virus expressing plasmid (see Notes 1 and 2).
Allow the cells to propagate and produce virus at 37 °C in 5% CO₂ until they reach confluence; this should take approximately 72-96 h. Confluence is determined by lack of surface area remaining on the well's growth surface.
Before collecting the viral supernatant, pre-cool the ultracentrifuge to 4 °C.
Collect the viral supernatant (roughly 15 ml) using a serological pipette, and transfer it into a 50 ml conical tube. In these conditions, this is an excess of virus that will allow for multiple attempts at SDS-PAGE analysis if necessary.
Centrifuge this supernatant for 5 min at 500 x g at room temperature (20-25 °C) to clear cellular debris.
During this centrifugation step, prepare the appropriate number of syringes and 0.45 μm filters.
Transfer the cleared supernatant into a syringe and filter it directly into another 50 ml conical tube.
1. Approach 1: Add Triton X-100 to a final concentration of 10% (i.e., 1.7 ml Triton X-100 + 15 ml viral supernatant), mix by inversion or pipetting. Incubate at room temperature (20-25 °C) for 20 min (see Note 3).
2. Approach 2: Move to Step 9.
Transfer the solution into a Type 70Ti tube.
If necessary, top up each tube with media or PBS such that they contain approximately 7.5 ml below the maximum threshold.
Place a sterile Pasteur pipette into each 70Ti tube, with the thin side immersed in viral media. Placement and use of the Pasteur pipette in this fashion is shown in Figure 2 of a recent publication by our laboratory (Renner et al., 2018b).
Slowly add the sterile 5% sucrose-detergent buffer of choice, 2 ml of this is sufficient (see Note 4). This allows for a short exposure to detergent before passing through the denser, 20% sucrose solution, which is detergent-free. In our experiments, we typically use 5% sucrose + 2-10% Triton X-100 or 0.2% SDS.
Using the same Pasteur pipette, slowly add the sterile 20% sucrose solution through the Pasteur pipette so it may form a cushioning layer below the detergent layer (see Note 4). Five milliliters of this solution is sufficient.
Insert the lids and caps onto the tubes and balance each tube appropriately for ultracentrifugation (within 0.05 g). Sterile media or PBS can be used to adjust the mass of viral samples (see Note 5).
Cap each tube, ensuring the O-rings and aluminum caps are sealed properly. Insert these tubes appropriately into the Type 70Ti rotor and insert the rotor into the ultracentrifuge (see Note 5).
Ultracentrifuge these samples with an acceleration and deceleration set to maximum, for 2 h at 4 °C at approximately 100,000 x g.
Remove the tubes from the rotor, visualize the pellets and circle with a marker. These pellets are rather translucent with a white tinge, as the envelope should have been stripped from them at this stage. As time passes after the centrifugation, these pellets become more difficult to see and may dislodge, so samples need to be processed as fast as possible.
Gently remove supernatants using a serological pipette and resuspend the pellet in buffer of choice. We typically use 250 µl Laemmli sample buffer for analysis by SDS-PAGE. Resuspend slowly and carefully to avoid the introduction of bubbles.
Store at -20 °C or -80 °C until ready for analysis.

Data analysis

SDS-PAGE:
Viral capsid core stability can be determined by quantifying essential viral components; loss of viral envelope glycoprotein is expected to occur as the phospholipid bilayer will be dissociated from the capsid. Density of the bottom sucrose layer will govern the stringency and overall yield of this assay. For M-MLV, we targeted the p30 capsid protein (R187, rat monoclonal, 1 µg/ml) and viral envelope glycoprotein Env-eGFP (anti-eGFP, JL-8, mouse monoclonal, 0.2 µg/ml). For the p30 capsid antibody, R187 cells were propagated in the conditions outlined by the ATCC using Hybridoma-SFM. The supernatant may be directly used or purified using Protein A or G resins. The remaining antibodies, including secondaries, were purchased as outlined in the Materials and Reagents section.
This approach and necessary background information are illustrated and interpreted in our recent publication in the Journal of Virology (Renner et al., 2018a). The development of this protocol was to assess the impact on core stability caused by mutations in various viral structural proteins and in an accessory protein called glycosylated Gag (also known as glycogag or gPr80). Figure 2 below depicts the localization of each mutation in the viral proteins. A virus mutant named M-MLV [CTA] specifically depicts the loss of the CTG alternative start codon for gPr80, making this virus deficient in this protein. The other mutants express gPr80 lacking glycosylation sites. These mutations consequently impact the matrix (N113) and CA (N480 and N505) structural proteins.

Figure 2. Schematic representation of the glycosylated Gag (gPr80) protein. This figure was adapted from Renner et al., 2018a. Translation of gPr80 is initiated from an alternative start codon, CTG (amino acid (AA) position 1). N-linked glycosylation occurs at AA positions 113, 480 and 505. As illustrated above, these are located in the coding sequences for the Matrix (MA/p15) and Capsid (CA/p30) proteins of Pr65, respectively.

Figure 3 below outlines an example of implementation and data acquired using both approaches 1 and 2 of this protocol. The first lane of each gel shows an untreated control of the viral stock to verify quality of the input virus. Approach 1, which involves pre-treatment of the virus with Triton, completely removes viral envelopes, as depicted by the loss of Env-eGFP staining by Western blot (Figure 3A). This approach clearly shows that loss of gPr80 expression or mutation of N480 results in a detectable reduced capsid core stability (p30 signal), whereas mutating both N113 and N505 do not appear destabilize the capsid core.
Approach 2, which does not involve a pre-treatment with detergent, depicts a gradual loss of the viral envelope with increasing concentrations of detergent, as indicated by diminishing Env-eGFP staining (Figure 3B). This approach illustrates a similar reduction in capsid core stability when comparing the WT M-MLV with the gPr80-deficient virus and the N113Q/N480Q/N505Q mutant. Moreover, Approach 2 reveals more subtle differences between the gPr80-deficient virus and the N113Q/N480Q/N505Q mutant that were not visible in Figure 3A. Chiefly, that [N113Q/N480Q/N505Q] is more stable in the presence of mild detergent than the gPr80-deficient virus. These conclusions were reflected in our direct comparison with the Fate of Capsid Assay in our recent publication (Renner et al., 2018a).

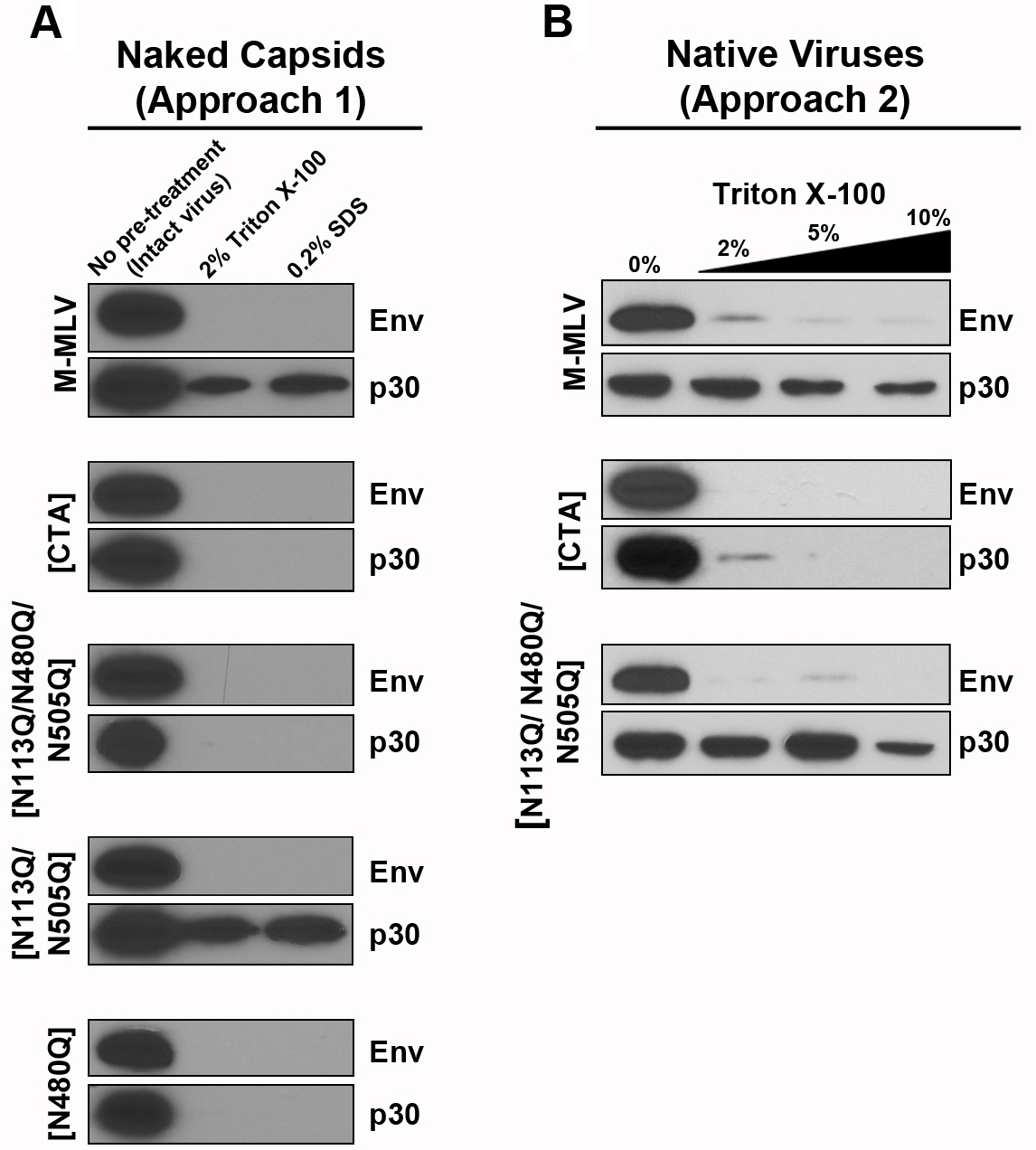

Figure 3. Assessment of viral capsid core stability. This figure was adapted from Renner et al., 2018a. Various M-MLV glycosylated Gag mutants were harvested from cell supernatants as previously described. Intensity of each band is directly proportional to the amount of antibody, and therefore antigen present in the sample; the stronger the band, the more protein of interest is present. A. Viruses were pre-treated with 10% Triton X-100 to remove the envelope (Approach 1). The viruses were then spun through a first layer containing 5% sucrose with either 2% Triton X-100 or 0.2% SDS (Figure 1). Ultracentrifugation pellets were then analyzed by SDS-PAGE. B. Viruses were not pre-treated with any detergent (Approach 2). The first lane represents a sample untreated with detergent, while the next 3 lanes depict treatments with increasing concentrations of detergent within the upper 5% sucrose layer (Figure 1). Absence of an envelope glycoprotein band (Env), but presence of a p30 (capsid) band in SDS-PAGE analysis illustrates envelope-free and intact capsid cores that have survived ultracentrifugation. Reduced or absent p30 staining highlights capsids with decreased structural stability.

Overall, the two technical approaches presented here individually constitute fast, simple and effective ways to monitor capsid core stability of retroviruses. Additionally, by using these two approaches in parallel, it is possible to reproducibly reveal small, but significant, differences in capsid core stability. While Approach 1 challenges the structural stability of naked capsids that have been stripped of their envelope; Approach 2 probes the overall stability of intact, native, viruses challenged with a mild nonionic surfactant. Finally, the results from these two methods were also compared to the well-characterized fate of capsid assay, which yielded similar conclusions in our system, but constitutes a more labor-intensive and time-consuming approach (Renner et al., 2018a).

Notes

Cell type will vary depending on the virus of choice for this assay. NIH 3T3 cells were chosen as they are easy to work with while being highly permissive to MLV infection and production. If chronically infected producer cells are not a feasible option, transfection of a suitable cell line has also been verified as effective using this protocol. For transfection, follow the published guidelines for your chosen reagents.
Optimal production time may vary depending on the virus or cell type.
Pipetting detergent stocks may prove difficult due to their viscosity. Cutting the end of a pipette tip with scissors may help. Alternatively, it may be more accurate to determine the volume of detergent used by mass. Detergent of choice and incubation time may vary depending on virus and experimental conditions. Optimization is recommended with non-denaturing conditions.
If difficulties are found with the layering of the multiple sucrose layers (i.e., layers are visibly mixing), it is possible to freeze these layers individually with liquid nitrogen prior to adding the viral supernatant. This can be done by immersing the tube containing only the bottom layer of sucrose into a container of liquid nitrogen. Addition of the second layer can be done on top of the frozen bottom layer without fear of mixing. The tube can be immersed once again to freeze both layers in place while the sample is added. This will ensure a proper separation of layers before the centrifugation step has begun. However, just be certain the centrifuge tubes that are being used are compatible with the low temperatures of the liquid nitrogen.
Be very careful when maneuvering with these tubes, as the sucrose layers can mix with the viral supernatant. It is important that all layers remain distinct and separated.

Recipes

10x PBS
80 g/L NaCl
2 g/L KCl
7.63 g/L Na₂HPO₄
2.4 g/L KH₂PO₄
Sterilize if to be stored for extended period
Note: We typically make a 10x stock solution of PBS to reduce significance of the error associated with weighing these powders.
1x PBS
Dilute 10x PBS as necessary to a 1x PBS solution with distilled water
Adjust pH to 7.4 using NaOH or HCl and sterilize
Store anywhere between 4 °C and 25 °C
PBS-T
Add Tween-20 to a final concentration of 0.1% (v/v) (1 ml for each liter) to 1x PBS
Store at room temperature
20% (m/v) sucrose in PBS
200 g sucrose
100 ml 10x PBS solution
Volume brought to 1 L with sterile H₂O
Adjust pH to 7.4 using NaOH or HCl
Filter sterilize
Store in fridge (4 °C)
2% (v/v) Triton X-100 or 0.2% (m/v) SDS in 5% (m/v) sucrose in PBS
2.5 g sucrose
1 ml Triton X-100 or 0.1 g SDS
5 ml 10x PBS Solution
Volume brought to 50 ml with sterile H₂O
Adjust pH to 7.4 using NaOH or HCl
Filter sterilize
Store at room temperature
Note: If a different percentage of Triton X-100 or SDS are required, scale up or down accordingly.
Complete DMEM
(10% FBS, 100 U/ml Penicillin, 100 µg/ml Streptomycin)
DMEM high glucose
50 ml Fetal Bovine Serum
5 ml penicillin/streptomycin solution
Store in fridge (4 °C)
Transfer Buffer (25x)
72.8 g Tris-Base
360 g Glycine
Volume brought to 2 L with sterile H₂O
Store this at room temperature
Just before use, dilute to 1x using 20% total volume methanol and the remainder sterile H₂O (i.e., 1 L total volume = 200 ml methanol, 40 ml 25x Transfer Buffer and 760 ml sterile H₂O).
