Materials and Reagents

Samco Extra Fine-tip polyethylene transfer pipettes (Thermo Fisher Scientific, Fisher Scientific^TM, Molecular BioProducts, catalog number: 231 )
1.5 ml microcentrifuge tubes (Eppendorf, catalog number: 0030125150 )
5 ml polystyrene round-bottom tubes (flow cytometry tubes) (Corning, Falcon^®, catalog number: 352008 )
Flow-Count Fluorospheres (Beckman Coulter, catalog number: 7547053 )
Aluminum foil
Hank's balanced salt solution (HBSS + Calcium + Magnesium) (Thermo Fisher Scientific, Gibco^TM, catalog number: 14025076 )
Hank's balanced salt solution (HBSS, no calcium, no magnesium) (Thermo Fisher Scientific, Gibco^TM, catalog number: 14175095 )
Collagenase P (Roche Molecular Systems, catalog number: 11213857001 ) (2 mg/ml stock)
DNase I (Roche Molecular Systems, catalog number: 11284932001 ) (10 mg/ml stock)
Trypsin-EDTA (0.05%), phenol red (Thermo Fisher Scientific, Gibco^TM, catalog number: 25300054 )
Sodium Azide (Sigma-Aldrich, catalog number: S2002 )
Fetal Bovine Serum (FBS) (Thermo Fisher Scientific, Gibco^TM, catalog number: 1009141 )
RPMI 1640 Medium (Thermo Fisher Scientific, Gibco^TM, catalog number: 11875119 )
Bovine Serum Albumin (Sigma-Aldrich, catalog number: A7906-500G )
Paraformaldehyde (PFA) (Sigma-Aldrich, catalog number: 158127 )
Phosphate buffered saline (PBS)
LIVE/DEAD^TM Fixable Near-IR Dead Cell Stain Kit (Thermo Fisher Scientific, Invitrogen^TM, catalog number: L10119 )
Human TruStain FcX^TM (BioLegend, catalog number: 422302 )
Brilliant Violet 510^TM anti-human CD45 Antibody clone HI30 (e.g., BioLegend, catalog number: 304036 )
Phycoerythrin (PE) Mouse Anti-Human CD19 Antibody clone HIB19 (e.g., BD, catalog number: 555413 )
PE-CF594 Mouse Anti-Human CD16 clone 3G8 (e.g., BD, catalog number: 562320 )
Alexa Fluor^® 700 anti-human CD14 Antibody clone M5E2 (e.g., BioLegend, catalog number: 301822 )
Brilliant Violet 605^TM anti-human CD4 Antibody clone OKT4 (e.g., BioLegend, catalog number: 317437 )
Brilliant Violet 650^TM anti-human CD3 Antibody clone OKT3 (e.g., BioLegend, catalog number: 317323 )
FITC anti-human CD8a Antibody clone RPA-T8 (e.g., BioLegend, catalog number: 301006 )
PerCP/Cy5.5 anti-human CD56 (NCAM) Antibody clone HCD56 (e.g., BioLegend, catalog number: 318322 )
Brilliant Violet 785^TM anti-human HLA-DR Antibody clone L243 (e.g., BioLegend, catalog number: 307642 )
Digestion solution I (see Recipes)
Digestion solution II (see Recipes)
FACS buffer (see Recipes)
1% PFA (see Recipes)

Equipment

Vortex
Benchtop centrifuge
Timer
FACS flow cytometer (BD, model: LSRFortessa^TM , 4 laser)
Conventional cell culture incubator (37 °C/5% CO₂)

Software

FlowJo version 10.1.0 (FlowJo LLC, https://www.flowjo.com)
BD FACSDiva^TMsoftware

Procedure

Biopsy preparation
1. Obtain 16-gauge human kidney biopsy core with informed donor consent (see Note 1).
2. Measure the length of the kidney biopsy core prior to processing. Note the measurement; it is used to determine absolute numbers of immune cell populations (as outlined in the Notes section).
3. Place the portion of the kidney biopsy core (approx. 1-5 mm) in 0.25 ml Digestion Solution I (see Recipes) in a 1.5 ml microfuge tube.
4. Incubate at 37 °C for a total of 15 min. At 7 min, and at the end of the 15 min, gently pipette up and down several times with a Samco pipette to mechanically dissociate the cells. The diameter of the Samco pipettes listed above facilitates this dissociation.
5. Centrifuge at low speed (600 x g) for 5 min at 4 °C to pellet cells.
6. Harvest supernatant for analysis of soluble products from the biopsy. Immediately aliquot and store at -80 °C until required (see Note 2).
7. Add 0.5 ml Digestion Solution II (see Recipes) and incubate at 37 °C for 10 min. At the beginning and end of this period, gently pipette up and down several times with a Samco pipette to mechanically dissociate the cells.
8. Add 0.5 ml cell culture media containing calcium (e.g., RPMI 1640 medium) to neutralize the trypsin (see Note 3). At this point, the biopsy should be completely digested with minimal cell clumps present. However, if sufficient tissue is used, a white fibrous cord may remain which does not contain cells. This adheres to the Samco pipette tip and is easily removed.
9. Centrifuge the resulting cells at 600 x g for 5 min at 4 °C. Remove supernatant.
Antibody labeling of cells
1. Dilute LIVE/DEAD^TM Fixable Near-IR Dead Cell Stain 1:4 in PBS.
2. Resuspend cells in 0.5 ml PBS and add 0.5 μl diluted LIVE/DEAD^TM Fixable Near-IR Dead Cell Stain (final conc. 1:4,000; see Note 4).
3. Stain 15 min on ice.
4. Wash cells by adding 0.5 ml FACS buffer (see Recipes), centrifuge at 600 x g for 5 min at 4 °C and remove supernatant.
5. Resuspend cell pellet in 100 μl FACS buffer.
6. Add 5 μl of Human TruStain FcX^TM(see Note 5) to 100 μl cells in FACS buffer (5 min at RT) prior to adding antibodies of interest.

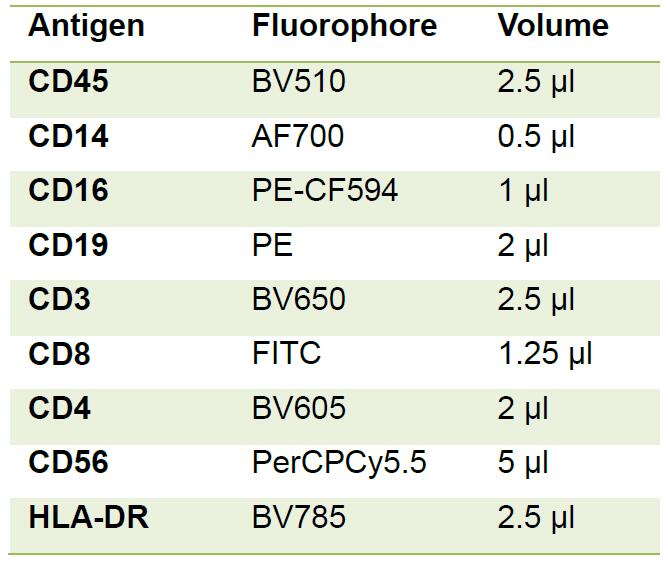

7. Prepare antibody master mix for surface staining (see panel below; Notes 6-8).
8. Add antibody master mix to cells, vortex for 5 sec and incubate for 30 min on ice.
  Note: This panel can be modified depending upon cells of interest and can also include activation markers, chemokine receptors or other molecules of interest.
9. Wash cells by adding 0.5 ml FACS buffer, centrifuge at 600 x g for 5 min at 4 °C and remove supernatant.
10. Fix cells in 1% PFA to a final volume of 270 μl and transfer into polystyrene FACS tube (see Note 11). Cover with aluminum foil and keep on ice/refrigerate until acquisition. Cells should be analyzed on the flow cytometer within four days. It is possible to run cells without fixation if the acquisition is performed within two hours.
11. Immediately prior to analysis, add 30 μl Flow-Count fluorospheres (see Note 12).
12. Analyse by flow cytometry.
Flow cytometry
1. Set up compensation on a flow cytometer.
2. Acquire entire sample.

Data analysis

Identify and analyze cells of interest. Samples are analyzed with FlowJo.
1. Within the single, live, CD45⁺ immune cells, gates are first set on polymorphonuclear (increased SSC) and mononuclear cells.
2. The polymorphonuclear cells are further gated into neutrophils (CD16⁺) or basophils/eosinophils (CD16^-).
3. The mononuclear cell population is gated into monocytes and lymphocytes. The monocytes are separated from the lymphocytes based on their increased side scatter and expression of CD14.
4. The lymphocyte population is further gated into B cells (CD19⁺) and T cells (CD3⁺) cells. Cells that are both negative for CD19 and CD3 (double negative) are further gated into NK cell subsets and DC by expression of CD56 (NK cells) or HLA-DR (DC; see Figure 1).
Calculate cell numbers using Flow-Count fluorospheres (see Note 14).

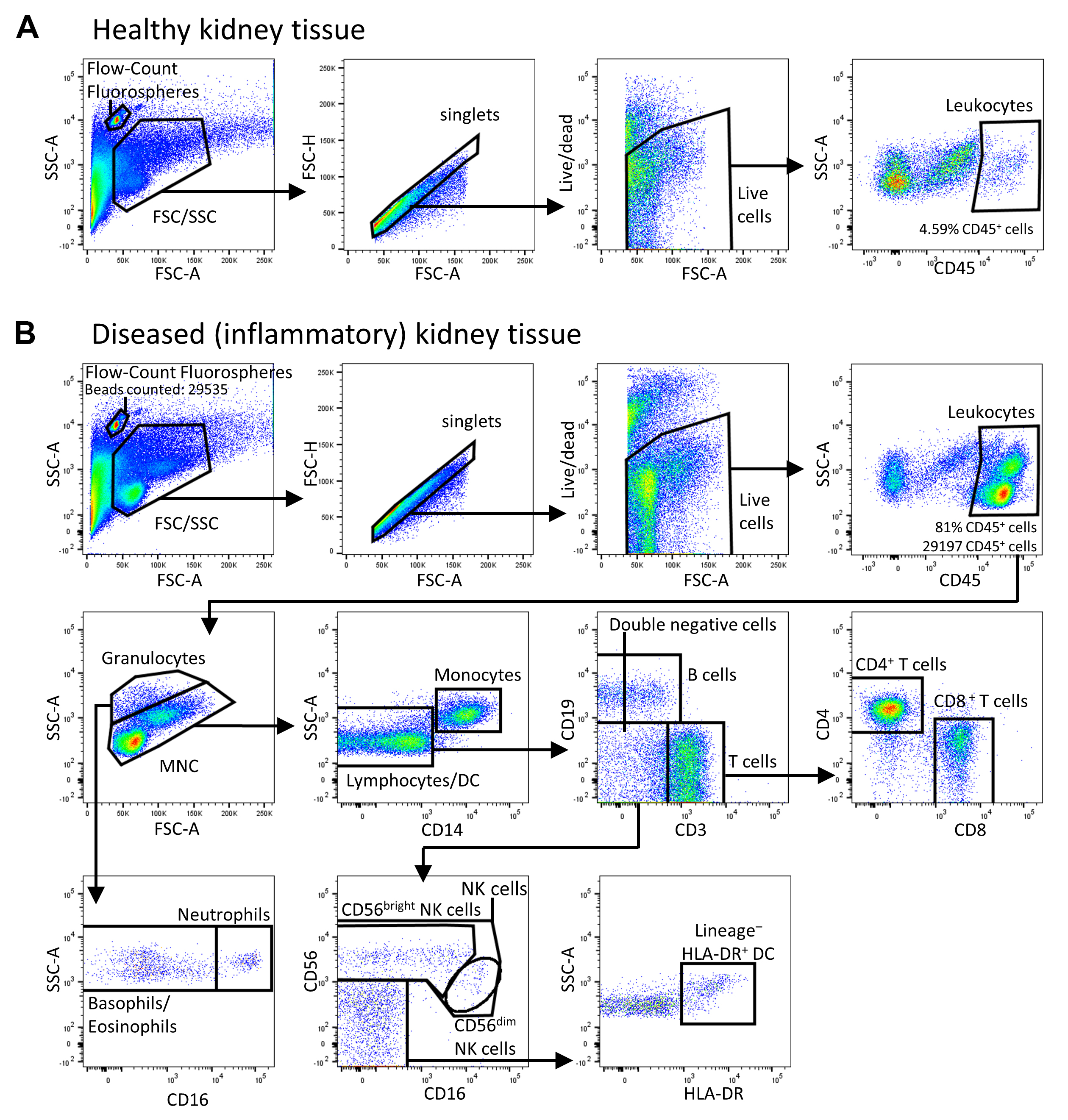

Figure 1. Gating strategy used to identify immune cell subsets in human kidney tissue by flow cytometry. Flow-Count fluorospheres are identified and gated as the unique 10 μm bead population on the forward scatter (FSC)/side scatter (SSC) plot. Single, live, CD45⁺ mononuclear cells (MNC) and granulocytes are gated on an FSC/SSC plot. Total lymphocytes are distinguished from granulocytes and monocytes based on low side scatter and absent CD14 expression. Total lymphocytes are further separated into T cells or B cells by their expression of CD3 and CD19 respectively. NK subpopulations, CD56^bright and CD56^dim NK cells, are identified based on CD56 intensity and CD16 expression. DC are gated as lineage (CD3, CD14, CD19, CD56)^- HLA-DR⁺ cells. A. Healthy kidney biopsy tissue; B. Diseased (inflammatory) kidney biopsy tissue. The gating strategy used to identify immune cell subsets in diseased kidney tissue is identical between inflammatory AKI and CKD biopsies.

Notes

Acquisition of human tissue requires approval from an appropriate ethics committee and written informed consent from the donor. When working with human tissue appropriate biosafety practices (PC2 facilities) must be followed. Biopsies should be transported from the procedure room to laboratory in RPMI media containing 10% FBS on ice. Immune cells should be isolated within 12 h of the biopsy being taken.
Harvested supernatants collected after the first tissue dissociation step may be used to assess cytokines and chemokines within the interstitium. We have assessed inflammatory proteins in the supernatant by cytometric bead array and ELISA.
As trypsin is inhibited by divalent cations (calcium and magnesium), when preparing the digestion solution II, the trypsin is diluted in HBSS without calcium or magnesium. The trypsin is then neutralized by the addition of cell culture media containing calcium.
The LIVE/DEAD^TM Fixable Near-IR Dead Cell Stain Kit is used to determine the viability of cells. The Near-IR fluorescent reactive dye works by binding to free amines on the cell surface and in the interior of cells with compromised membranes. Viable cells exhibit reduced fluorescent intensity as the dye can only bind to cell surface amines. The difference in fluorescent intensity allows viable cells to be easily discriminated from dead cells.
Human TruStain FcX^TM is utilized to block antibodies non-specifically binding to Fc receptors expressed on some leukocytes (such as monocytes, granulocytes, B cells and dendritic cells). Human TruStain FcX^TM works by blocking FcR-mediated Ig Fc binding without interfering with antibody-mediated specific staining of human cells.
It is important to recognize that some antigens may be cleaved during the process of tissue dissociation. Therefore, we recommend performing a digestion test for the antigens being assessed in your panel. This is performed by staining peripheral blood mononuclear cells (PBMC) that have undergone the dissociation process with the selected antibody panel and comparing it to untreated PBMC. In some cases where an epitope is lost, a change of antibody clone directed to a different epitope of the same antigen may be useful.
Antibody concentrations are optimal for starting populations of ≤ 5 x 10⁵ cells. Do not exceed this cell number as it reduces binding efficiencies. However, for optimal results we recommend titrating your antibodies and testing their compatibility with the other antibodies in your panel.
For antibody staining steps use pre-cooled solutions; this will prevent capping of antibodies on the cell surface and non-specific cell labeling.
PBMC are used to set up compensation on the flow cytometer. To prepare single-color compensation control tubes, PBMC is stained with individual antibodies listed in the panel (Step 16) and incubated for 30 min on ice. PBMC are then washed with 0.5 ml FACS buffer, centrifuged at 600 x g for 5 min at 4 °C and resuspended in 300 μl 1% PFA. Each compensation control tube is acquired on a flow cytometer, with automatic compensation values for each fluorochrome combination accurately calculated using BD FACSDiva^TM software. Compensation values will vary between flow cytometers due to differences between instruments, including laser intensity and detector sensitivity.
Unlabeled cells from biopsy tissue can be used as controls to eliminate autofluorescence from analyses.
For the calculation of absolute cell numbers, it is extremely important that the cells are resuspended after the final wash to a total volume of 270 μl. To achieve this, after aspirating the supernatant, we initially add 100 μl of 1% PFA to resuspend cells. We measure the resulting volume by adjusting the volume on the pipette until all the liquid is withdrawn from the tube in one action (this would normally be between 140-170 μl). We then add the remaining volume of 1% PFA to make an exact final volume of 270 μl.
It is important to follow the manufacturer’s recommendations when using the Flow-Count fluorospheres. The fluorospheres must be properly resuspended to ensure the aliquot reflects the specific concentration indicated on the product insert. This is important as the ratio of biological cells in the specimen to fluorospheres is used in determining the absolute cell count. To resuspend, the fluorospheres are vortexed for 10-12 sec; longer vortexing times are not recommended to avoid forming excessive bubbles. Add the fluorospheres just prior to analysis, making sure to accurately pipette the desired volume into the sample. The fluorospheres must also be thoroughly mixed with the test sample. It is recommended to do this by holding the FACS tube at 50% of the tube height and vortexing for 5 sec immediately before flow cytometric analysis.
Flow-Count fluorospheres can be detected in a fluorescence emission range of 525 nm to 700 nm when excited at 488 nm or alternatively by FSC versus SSC as presented in Figure 1. In this methodology, we gate closely around the discrete bead population, based on 10 μm size, identified in the FSC versus SSC analysis.
Absolute numbers of each gated immune cell population can be determined using the ratio of the biological cells in the specimen to the Flow-Count fluorospheres following the manufacturer’s recommendations. This can be normalized to the volume of starting tissue to allow a comparison of absolute numbers between multiple specimens. Briefly, the concentrations of target cell populations (in cells/μl) are calculated using the following formula:

The total number of target cells counted/total number of fluorospheres counted x Flow-Count fluorosphere concentration (noted on product insert) x dilution factor

The concentrations of each target cell population are then multiplied by the total sample volume to obtain absolute counts. The absolute cell counts can then be normalized to cell numbers per cm³ of kidney tissue, by dividing the absolute cell count by the volume of renal tissue (in cm³), which is calculated as follows:

πr² x length of biopsy tissue (in cm)

where, the radius (r) of a 16-gauge biopsy is 0.08 cm.
A representative calculation of the absolute number of CD45⁺ leukocytes from Figure 1B is presented.
Note: A 0.5 cm 16-gauge human kidney biopsy core was processed for flow cytometric analysis, with 29197 CD45⁺ leukocytes and 29535 fluorospheres (at a stock concentration of 968 fluorospheres/μl) counted.
The flow cytometry gating figures depicted are donor dependent and are highly variable.
Additional markers have been assessed in extended panels within our laboratory by utilizing antibodies conjugated with the following fluorochromes: Allophycocyanin (APC), Brilliant Violet 421^TM, Brilliant Violet 711^TM and PE-Cy7.

Recipes

Digestion Solution I (prepare and use immediately)
0.125 ml HBSS (+ Calcium + Magnesium)
0.125 ml Collagenase P (final conc. 1 mg/ml)
0.5 μl DNase I (final conc. 20 μg/ml)
Digestion Solution II (prepare and use immediately)
10 μl Trypsin-EDTA (0.05%), phenol red
490 μl HBSS (no calcium, no magnesium)
FACS buffer (prepare and store long-term at 4 °C)
1x PBS (1 L)
5 g BSA Powder (final conc. 0.5%)
200 mg Sodium Azide (final conc. 0.02%)
1% PFA
1x PBS (1 L)
10 g Paraformaldehyde
Prepare the PFA solution by heating to 60 °C while stirring and adding 1-2 drops of 1 M NaOH to help the paraformaldehyde to dissolve. Aliquot and store at -20 °C

Acknowledgments

The authors would like to thank the tissue donors and clinicians. The work was funded by Pathology Queensland, Royal Brisbane and Women’s Hospital (RBWH) Research Grant, Kidney Research Foundation and National Health and Medical Research Council (NHMRC) Project Grant GNT1099222.

Competing interests

All authors declare no conflict of interest or competing interests of any kind.

Ethics

Kidney tissue was obtained with informed patient consent following approval by the Royal Brisbane and Women’s Hospital Human Research Ethics Committee (2002/011 and 2006/072).
